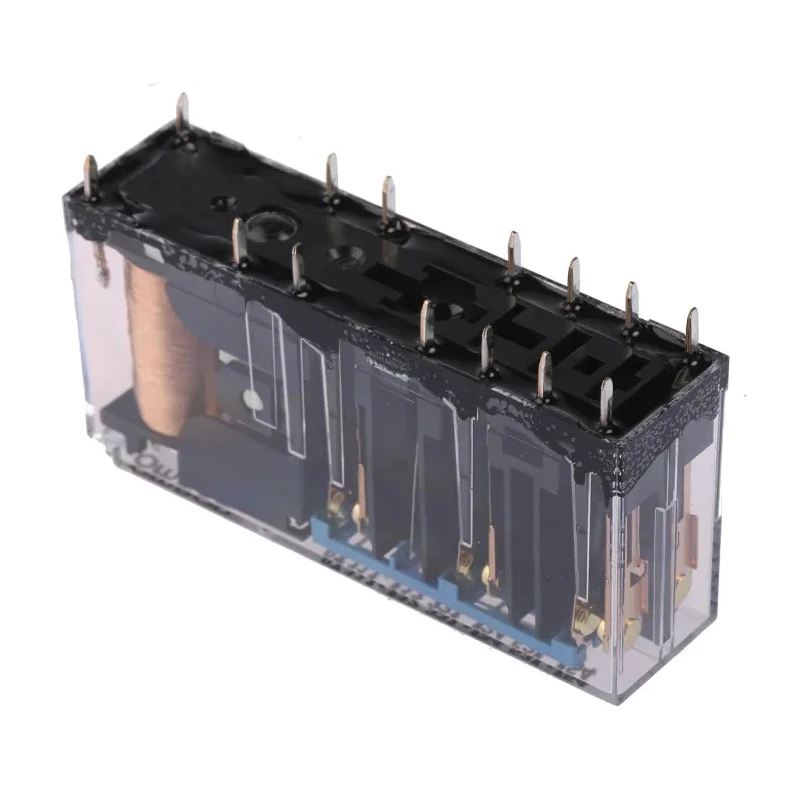

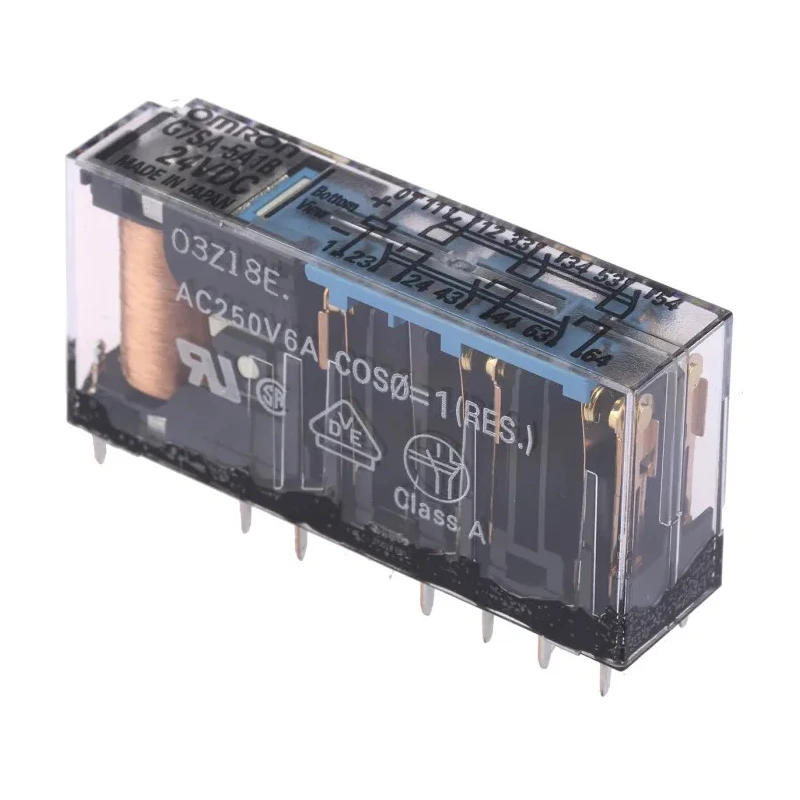

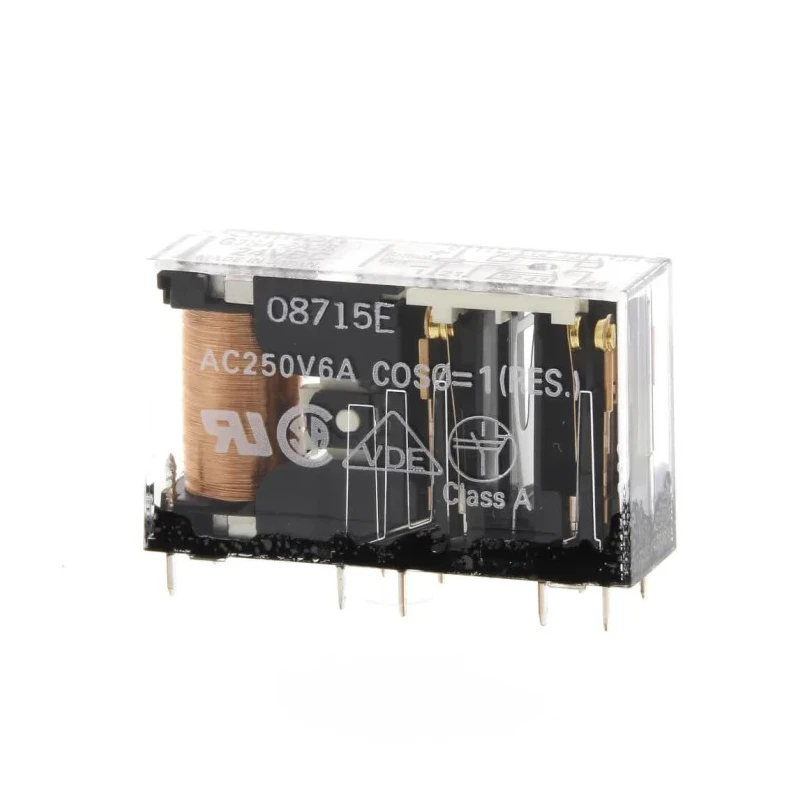

Omron 24V DC Safety Relay PCB Terminal, Front, Back Mount, 6A Contact Current, IP20 Protection G7SA

Omron G7SA safety relay model G7SA-5A1B DC24 operates at 24V DC coil voltage and is designed for highly reliable safety circuit implementations in automation and manufacturing environments. With a forcibly guided contact mechanism, it ensures normally open and normally closed contacts never actuate simultaneously, enhancing operational safety.

This relay features a 5PST-NO and SPST-NC contact configuration, allowing integration with safety switches and signal systems to build comprehensive safety solutions. Its PCB terminal type and front/back mount capability facilitate flexible and secure installation on printed circuit boards and in industrial control panels.

Key performance metrics include a contact current rating of 6A for both AC and DC resistive loads, maximum switching voltages of 250V AC and 125V DC, and a mechanical lifespan exceeding 10 million cycles, ensuring extended maintenance-free usage. Compact dimensions of 50mm length, 13mm width, and 24mm height support space-efficient designs, complemented by an IP20 rating for protection against solid objects.

The relay contacts are constructed with gold-plated silver alloy to maintain signal integrity over prolonged use. Flux-tight sealing improves soldering reliability and durability under harsh manufacturing conditions. It functions reliably across a wide temperature range from -40°C to 85°C, suitable for demanding industrial applications.

Applications span automotive manufacturing, pharmaceutical production, electronics assembly, and materials processing industries where safety and fast response times are critical. This relay provides fast switching with a maximum response time of 20 milliseconds and a switching frequency capability of 36,000 operations per hour.

Designed to meet CQC standards and comply with EN 50205 safety regulations, this Omron safety relay is a trusted component for ensuring operational safety in heavy plant and manufacturing environments. The unit is compatible with G7SA sockets that offer push-in terminals for fast installation on DIN rails.

Forcibly guided relay contacts for reliable fault switching. 5PST-NO and SPST-NC contacts enable versatile safety circuits. Mechanical durability over 10 million operations. Gold-plated silver alloy contacts for long-lasting reliability.

Compact size and IP20 rated protection. Wide operating temperature range from -40°C to +85°C. Flux-tight sealing for solder safety. Complies with CQC standard and EN 50205. Ideal for automotive, pharmaceutical, electronics, and materials production applications.
