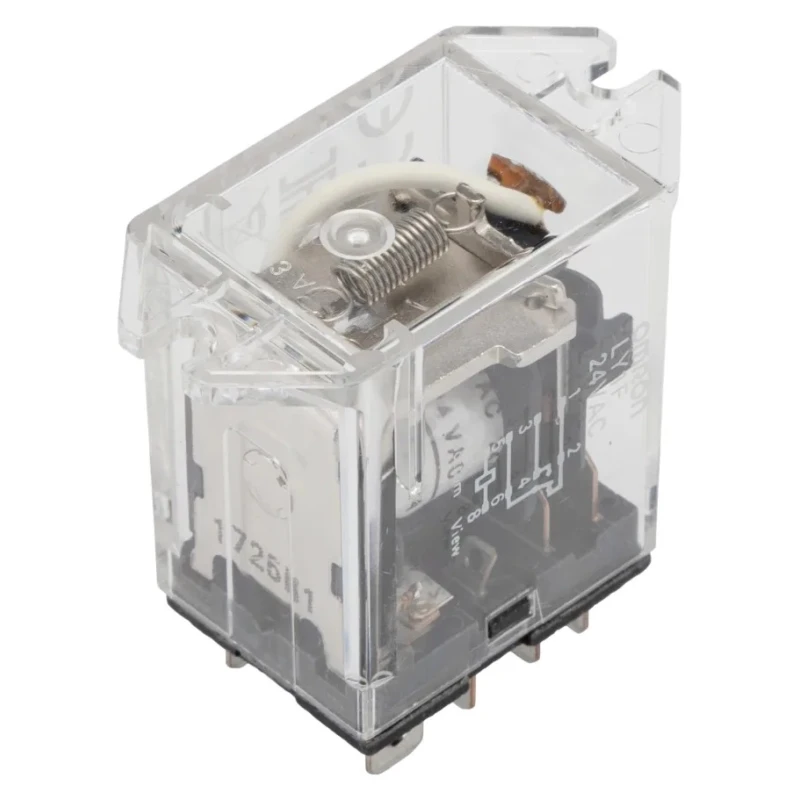

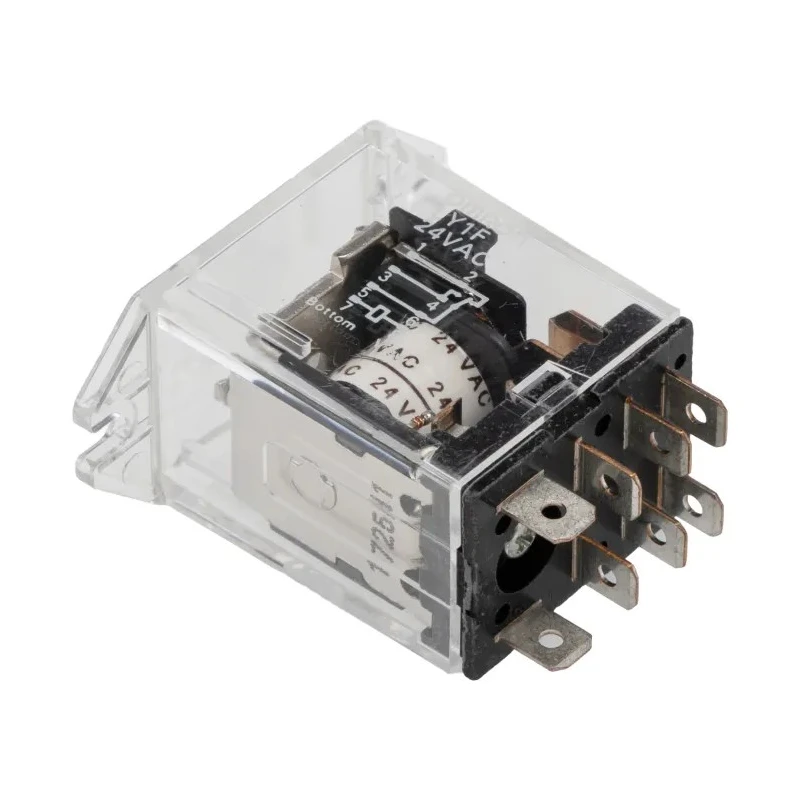

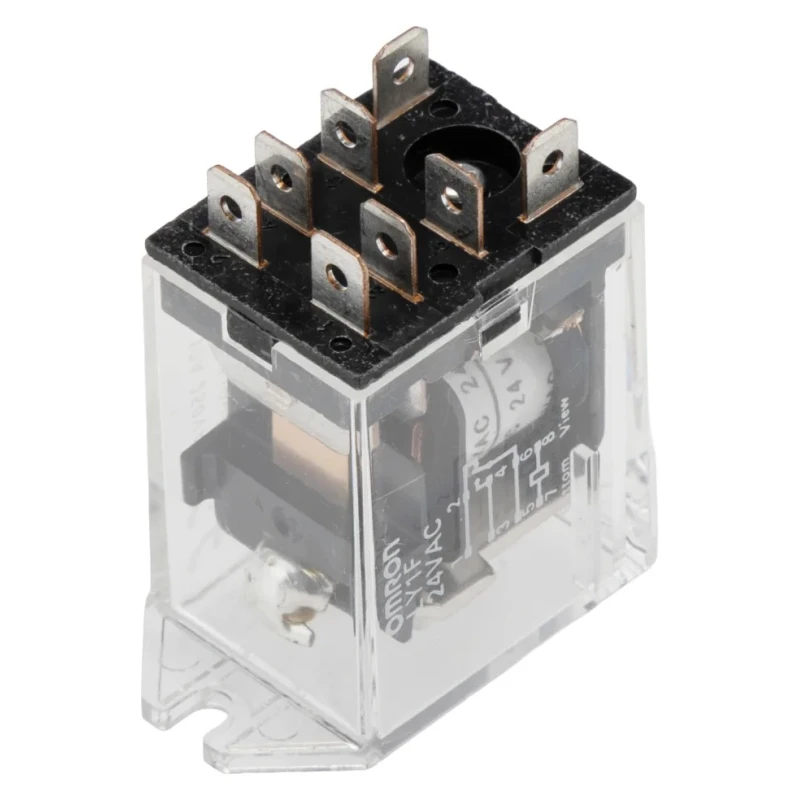

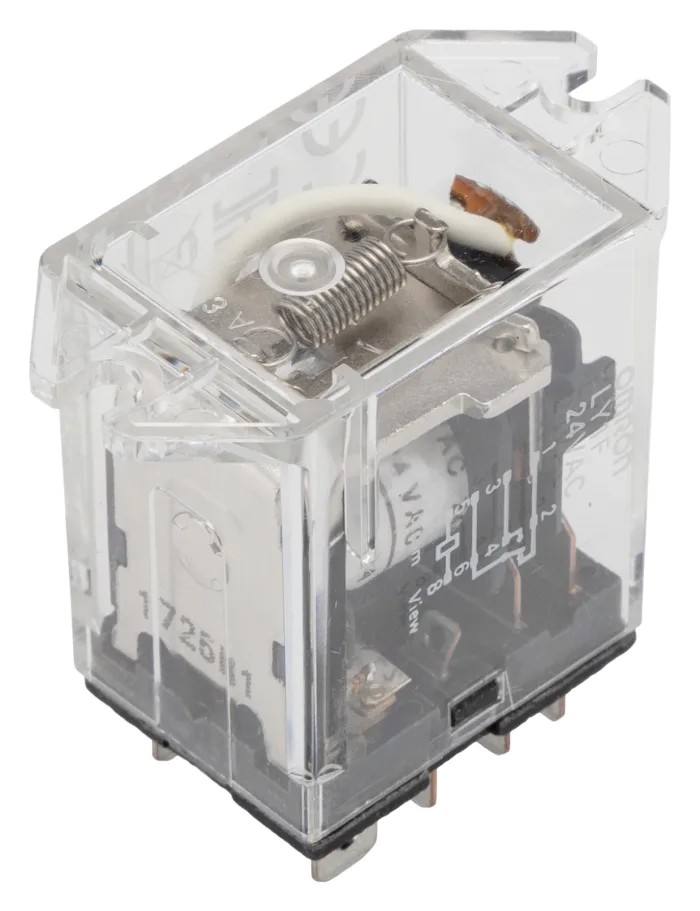

Omron Power Relay 24V AC Coil 15A Switching Current SPDT LY1F 24VAC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 44mm |
| Length | 22.5mm |
| Model | LY1F 24VAC |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | LY1 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V |
| Switching Power | 0.9W |
Key Features
- Equipped with a 24V AC coil consuming 1.2VA for efficient operation.
- Offers a single-pole double-throw (SPDT) contact arrangement for flexible switching.
- Rated for switching up to 250V AC at 15A and 125V DC at 0.9W.
- Features silver alloy contacts ensuring durable conductivity and reduced wear.
- Designed for PCB pin terminal mounting for secure mechanical and electrical connection.
- Operational temperature range from −25°C to 55°C suitable for industrial environments.
- UL and CSA safety approvals ensure compliance with recognized standards.
- Compact design with dimensions 44mm height, 35.5mm width, and 22.5mm length supports tight panel integrations.
Product Description
Omron LY1F 24VAC Power Relay is a compact industrial switching device designed for automation and control applications requiring reliable switching of higher voltage circuits. It features a 24V AC coil with a low power consumption of 1.2VA and provides a single-pole double-throw (SPDT) contact configuration.
The relay is engineered with silver alloy contacts to reduce wear and ensure consistent conductivity, rated for switching currents up to 15A at 250V AC and capable of switching 125V DC at 0.9W for control circuits. The coil resistance of 180 ohms allows for predictable coil current draw.
Connections are made through PCB pin terminals supporting through-board soldering that guarantees secure mechanical and electrical integrity, making it suitable for panel mounting environments such as control boards or industrial panels.
This relay operates reliably within a temperature range from −25°C to 55°C, meeting the demands of typical indoor industrial applications. It carries UL and CSA approvals, signifying compliance with recognized safety standards for dependable performance.
The compact dimensions (44 mm height, 35.5 mm width, 22.5 mm length) allow for efficient use of space in dense control layouts. Applications include motor starter control in industrial panels, switching heating or lighting circuits in control cabinets, PLC output galvanic isolation, and auxiliary switching in power distribution modules.
24V AC coil with 1.2VA power consumption for low energy usage. Single-pole double-throw contact for versatile switching needs. Silver alloy contact material offers durability and high conductivity. PCB pin terminals for robust and secure mounting.
Wide operating temperature range from −25°C to 55°C suitable for industrial environments. UL and CSA certified for safety and quality assurance. Compact size supports efficient integration into control panels. Suitable for industrial automation, motor starter control, and auxiliary switching applications.
Explore more products in the Power Relay category to find reliable relays for your industrial automation and control systems needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V AC.
This model can handle a maximum switching current of 15A.
The contact configuration of this relay is single-pole double-throw (SPDT).
The dimensions of this power relay are 44mm in height, 35.5mm in width, and 22.5mm in length.
The operational temperature range for this relay is from −25°C to 55°C.
This relay uses PCB pin terminals for mounting.
The contact material used in this relay is silver alloy.
This model carries UL and CSA approvals, ensuring compliance with recognized safety standards.
The coil resistance of this relay is 180 ohms.
The maximum switching voltage is 250V AC and 125V DC.
This power relay is suitable for applications such as motor starter control, switching heating or lighting circuits, and auxiliary switching in power distribution modules.
The coil consumes 1.2VA for efficient operation.
