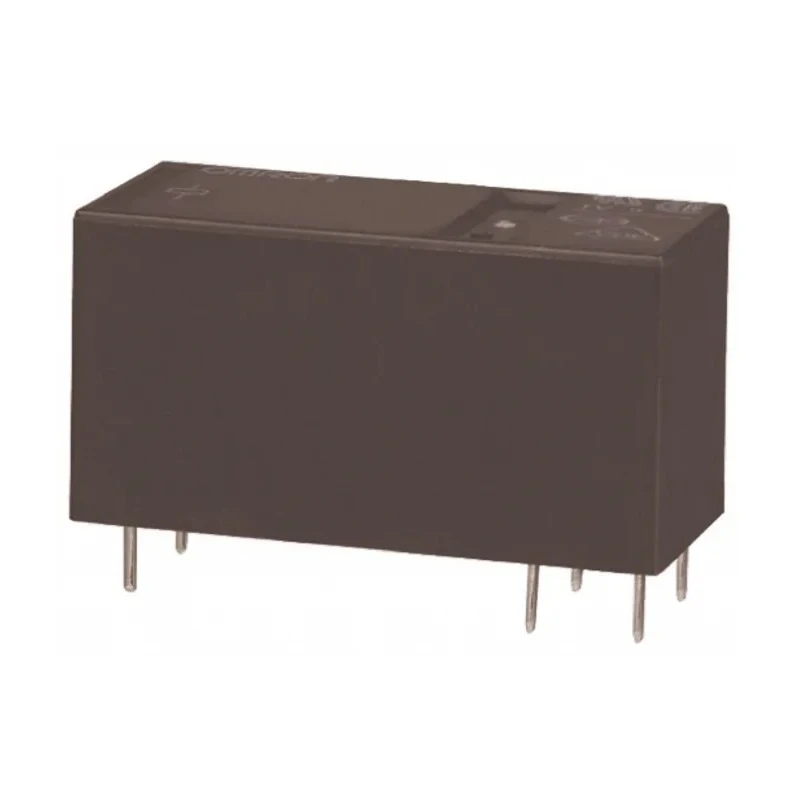

Omron PCB Power Relay SPST 24V DC Coil, 16A Switching Current G5RL-K1A-E DC24

Omron G5RL-K1A-E DC24 PCB Power Relay is a robust power relay designed for industrial and electrical applications requiring reliable switching capabilities.

This relay operates with a 24V DC coil voltage and offers a switching current capacity of 16 amperes. Featuring a Single Pole Single Throw (SPST) contact configuration, it is ideal for controlling circuits in automation systems, industrial control panels, and signal conditioning setups.

The relay mounts directly onto printed circuit boards (PCBs) using PCB pin terminals, facilitating compact and efficient electronic designs. Its low-profile construction with a maximum height of 15.7mm ensures suitability for space-constrained environments.

Part of the G2RL series, this model provides latching and flux-proof characteristics, promoting enhanced durability and performance stability. The device includes an 8mm creepage and clearance distance between the coil and contacts, contributing to electrical safety and insulation integrity.

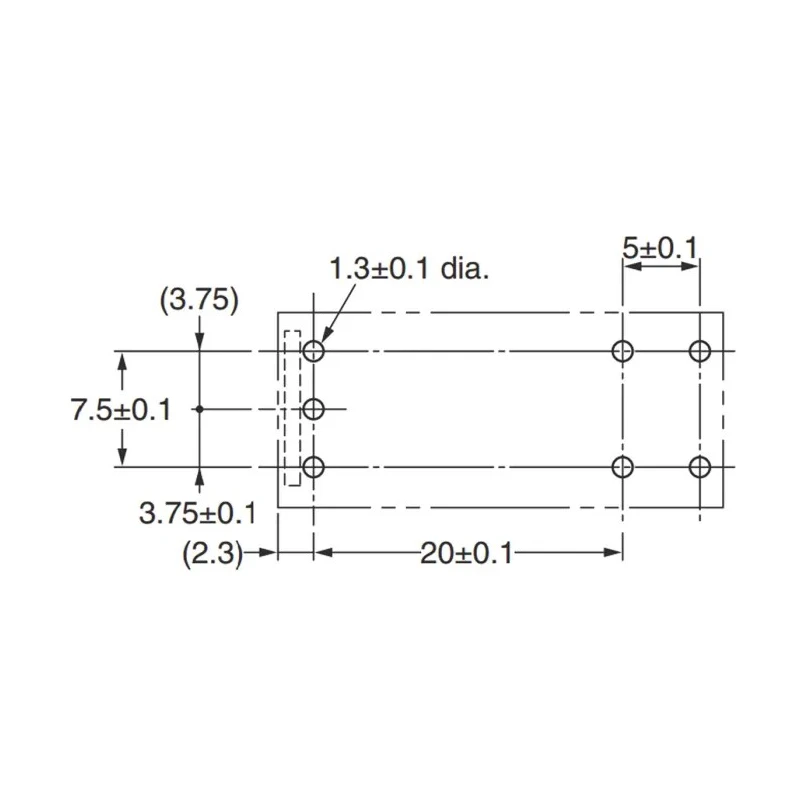

Dimensions include 29mm length, 12.7mm width, and a 15.7mm height, accommodating diverse PCB footprints.

This power relay meets important safety approvals from UL and CSA, confirming its compliance with recognized industrial standards for safe operation. Manufactured in China under Omron's quality standards, the relay is suitable for applications in industrial automation, HVAC controls, manufacturing machinery, and electrical equipment requiring precise relay switching.

This relay features a Single Pole Single Throw (SPST) contact configuration suitable for various electrical applications. Its low-profile design measures 15.7mm in height, making it compact for PCB mounting. Constructed with a PCB pin terminal type and mounts directly onto the PCB for easy integration.

The relay supports a switching current of up to 16 amperes, ensuring high load handling capability. It belongs to the G2RL series providing excellent performance and durability. Approvals include UL and CSA standards, ensuring compliance with international safety norms.

Features include an 8mm creepage/clearance between coil and contacts, flux proofing, and latching capability for enhanced reliability. Dimensions of the relay are 29mm length, 12.7mm width, and 15.7mm height. Manufactured in China with quality assurance from Omron.
