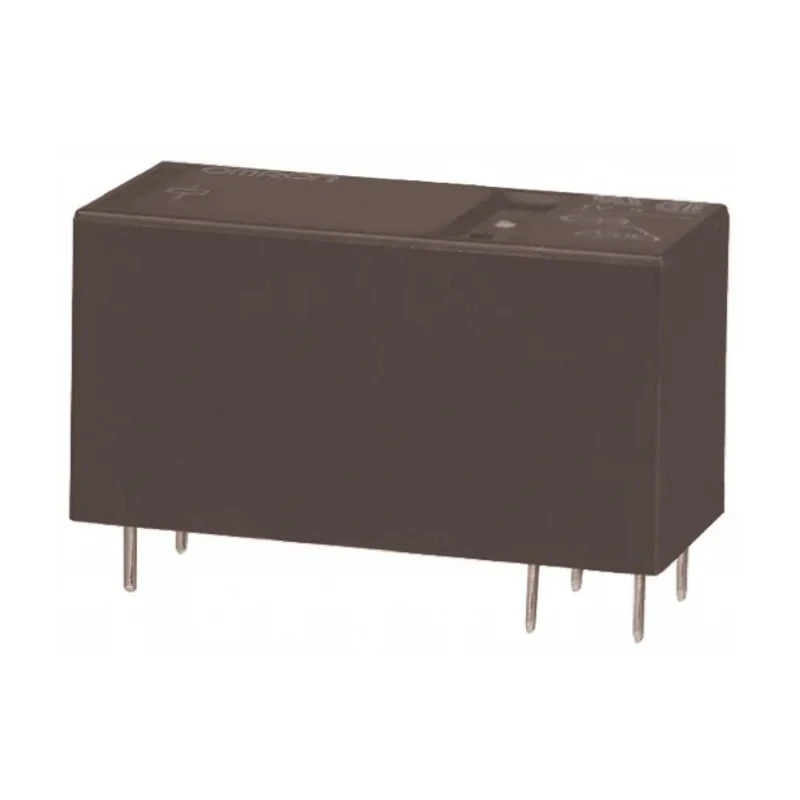

Omron PCB Power Relay 5V dc Coil 16A Switching Current SPDT G5RL-K1-E DC5

Omron G5RL-K1-E DC5 PCB Power Relay is a precision electromechanical device engineered to deliver dependable switching performance in electronic circuits and control systems. The relay operates on a 5V dc coil, providing efficient actuation with minimal power consumption. Its single pole double throw (SPDT) contact configuration allows versatile switching capabilities, making it suitable for multiple circuit applications including automation, signal conditioning, and power control.

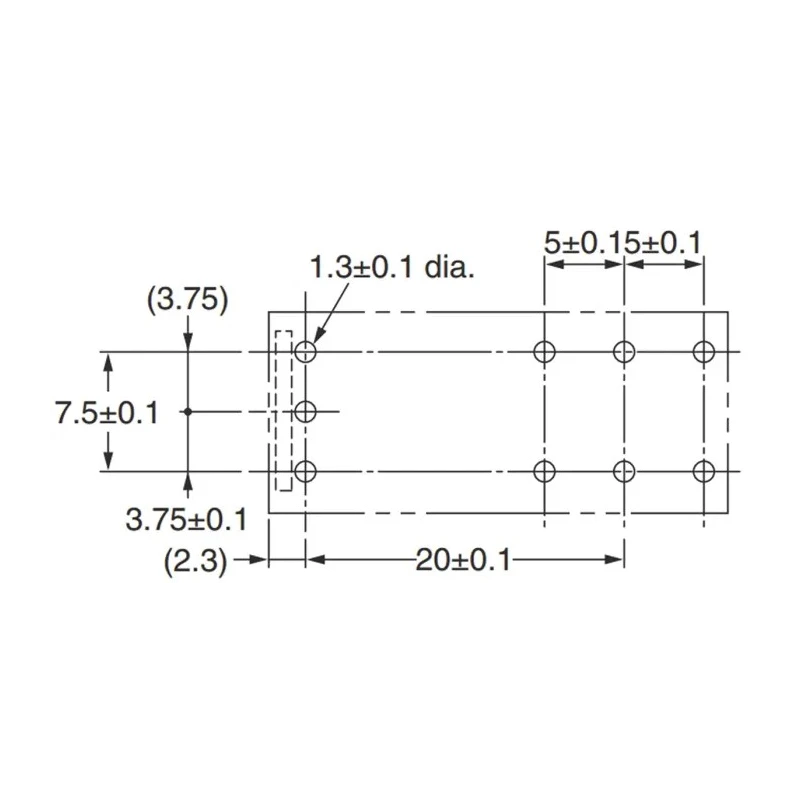

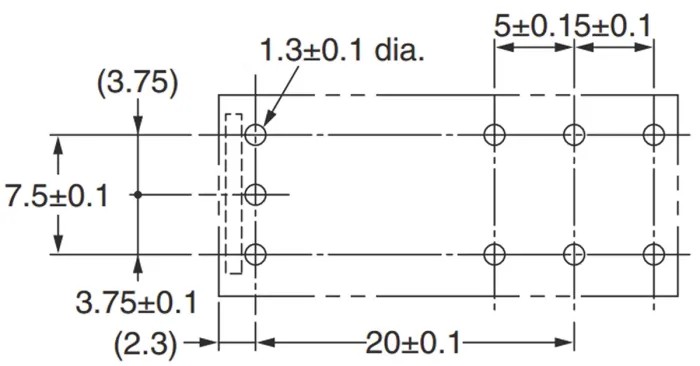

The relay is designed for PCB mounting using PCB pin terminals, which facilitates straightforward and secure installation on printed circuit boards. Compact in size with 29mm length, 12.7mm width, and a low profile height of 15.7mm, it is ideal for applications requiring space savings without compromising on electrical performance.

This model belongs to the reputable G2RL series, known for its robust construction and reliable operation. The relay is flux proof with an 8mm creepage and clearance distance between the coil and contacts, enhancing electrical isolation and reducing risk of failure. It complies with major safety standards including CSA, UL, and VDE, assuring high quality and safe usage in industrial and commercial environments.

Applications include industrial automation, HVAC systems, manufacturing control panels, and any equipment requiring reliable 16A switching capability on a compact PCB form factor. The relay’s durable design and certification make it a dependable choice for engineers and system designers seeking stable relay solutions.

Operates with a coil voltage of 5V dc for efficient power use. Contact configuration is SPDT allowing single pole double throw operation. Designed for PCB mounting with PCB pin terminals for easy installation. Supports switching current of 16A suitable for various electrical applications.

Compact dimensions: 29mm length, 12.7mm width, and 15.7mm height ensuring low profile installation. Meets CSA and UL standards ensuring high safety and quality compliance. Series G2RL providing proven performance and durability.

Low profile design with max height of 15.7mm ideal for space-constrained environments. Flux proof with 8mm creepage and clearance between coil and contacts enhancing reliability. Manufactured in China to internationally recognized quality standards.
