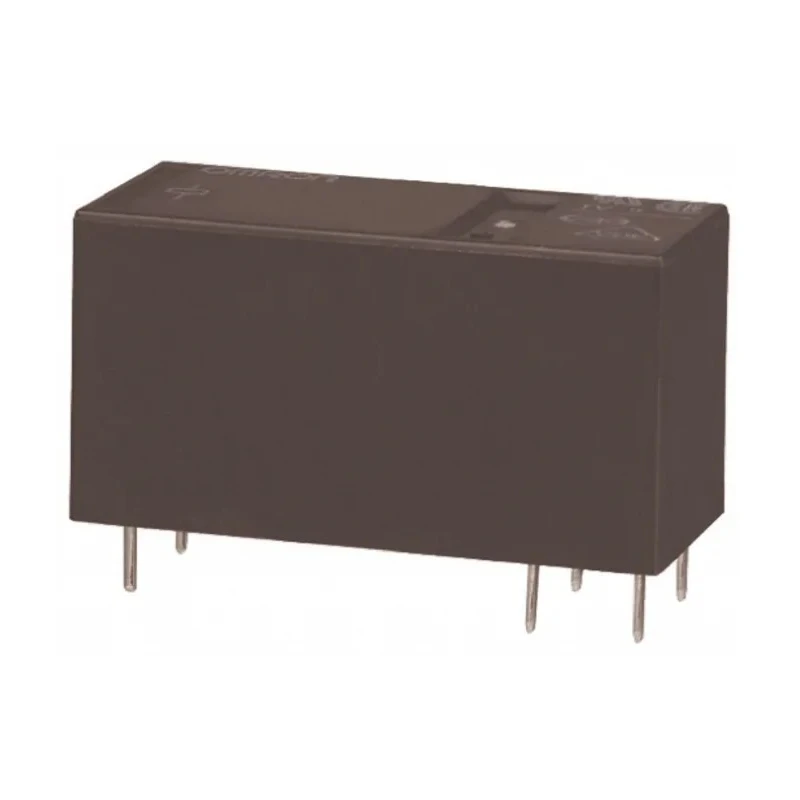

Omron PCB Power Relay 24V dc Coil 16A Switching Current SPST G5RL-U1A-E DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-U1A-E DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | G2RL |
| Contact Configuration | SPST |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Low Profile | 15.7mm max height |
| Standards/Approvals | CSA, UL |
| Coil Voltage | 24V dc |
Key Features
- Compact and low profile design with a maximum height of 15.7 mm.
- High switching current capacity of up to 16 amperes.
- PCB pin terminal type for reliable mounting and connection.
- Compliant with UL, CSA, and VDE standards for safety and performance.
- Includes 8 mm creepage/clearance between coil and contacts for enhanced insulation.
- Flux proof and latching features improve reliability in industrial applications.
- Manufactured in China ensuring consistent quality.
Product Description
The Omron G5RL-U1A-E DC24 PCB Power Relay is a high-quality, low profile power relay specifically designed for printed circuit board (PCB) applications requiring reliable switching performance. Featuring a 24V DC coil voltage and a 16A switching current rating, this SPST (Single Pole Single Throw) relay offers an ideal solution for a broad range of industrial automation and electrical control systems.
Its compact size and low profile design, with a maximum height of 15.7 mm, allow for space-efficient integration in densely populated electronic assemblies. The relay incorporates an 8 mm creepage and clearance distance between coil and contacts, enhancing safety and insulation capabilities, critical in meeting stringent industrial insulation requirements.
The G5RL series relay supports flux proof and latching functions, which significantly improve operational reliability in harsh and vibrating environments common to industrial, manufacturing, and automation sectors. The PCB pin terminal mounting type ensures secure attachment to printed circuit boards and straightforward assembly processes.
Omron’s commitment to safety and performance is demonstrated by the relay’s compliance with major international standards including UL and CSA certifications, making it suitable for use in demanding applications requiring assured quality. Its robust construction and adherence to standards endorse its extensive use in industrial controls, HVAC systems, machinery automation, and signal conditioning.
Compact, low profile relay design enables efficient PCB mounting. High current switching up to 16A supports robust electrical loads. UL, CSA, and VDE approvals ensure safety and compliance. 8 mm creepage and clearance distance for superior insulation safety.
Flux proof and latching features enhance operational life. PCB pin terminals provide reliable connection and assembly. Manufactured in China with rigorous quality control. Suitable for industrial automation, electrical controls, and HVAC applications.
Choose the Omron G5RL-U1A-E DC24 power relay for your PCB power switching needs to ensure dependable performance, compact integration, and standardized safety compliance. Explore more products in the Power Relay category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G5RL-U1A-E DC24 power relay has a maximum switching current capacity of 16 amperes.
This relay operates with a coil voltage of 24V DC.
The dimensions of the relay are 15.7 mm in height, 29 mm in length, and 12.7 mm in width.
It utilizes a PCB pin terminal type for mounting, ensuring reliable connection to printed circuit boards.
The contact configuration of the G5RL-U1A-E DC24 is SPST (Single Pole Single Throw).
This model is compliant with major safety and performance standards including UL and CSA.
It features an 8 mm creepage and clearance distance between the coil and contacts, enhancing insulation safety.
It is suitable for industrial automation, electrical controls, and HVAC applications.
The relay includes flux proof and latching features that improve operational reliability in harsh environments.
The Omron G5RL-U1A-E DC24 is manufactured in China, ensuring consistent quality.
Its low profile design, with a maximum height of 15.7 mm, allows for space-efficient integration in densely populated electronic assemblies.
This power relay belongs to the G2RL series.
