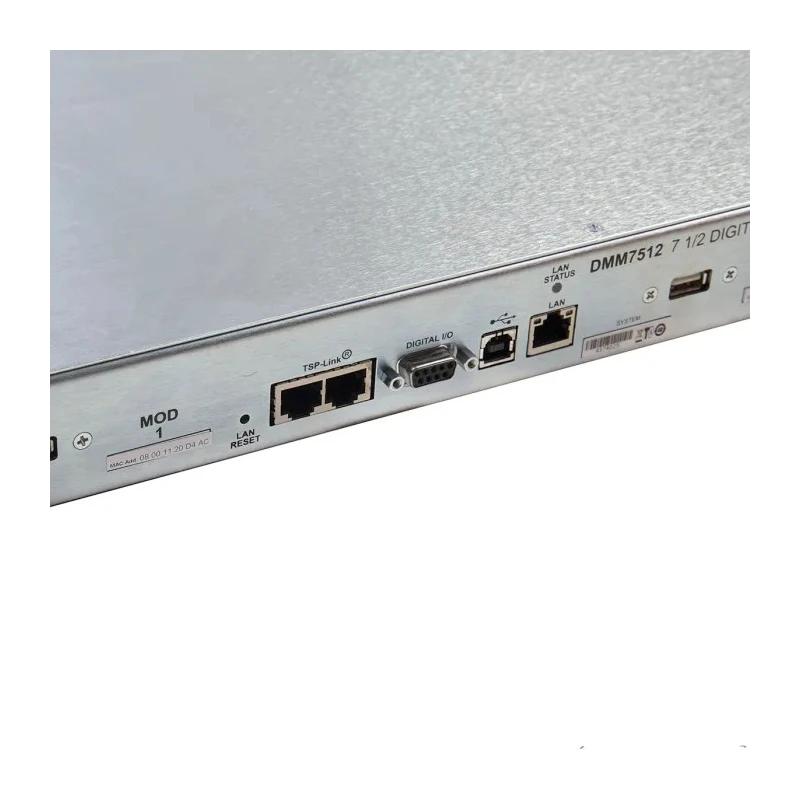

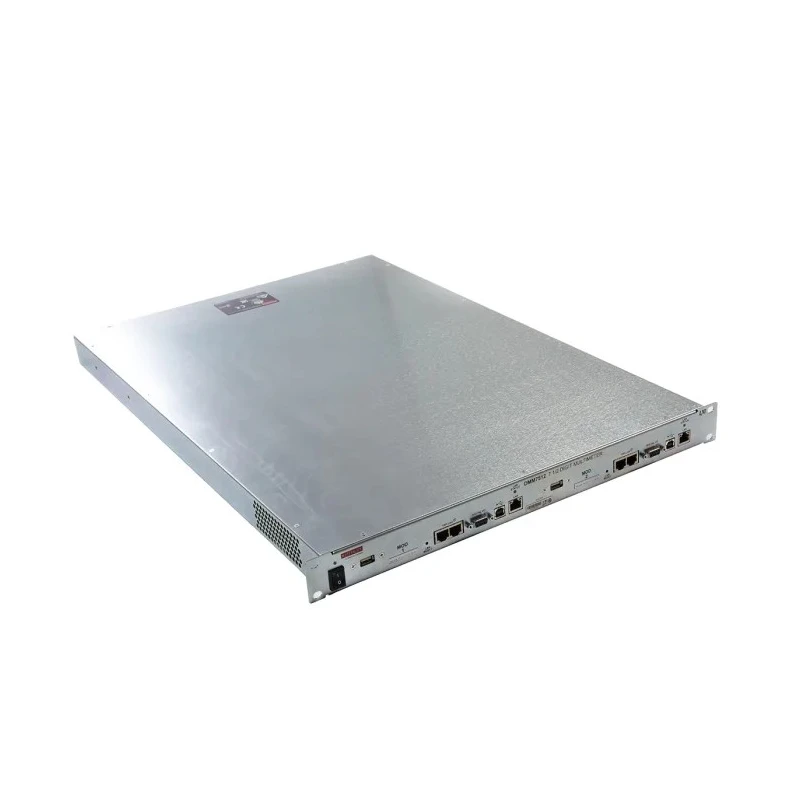

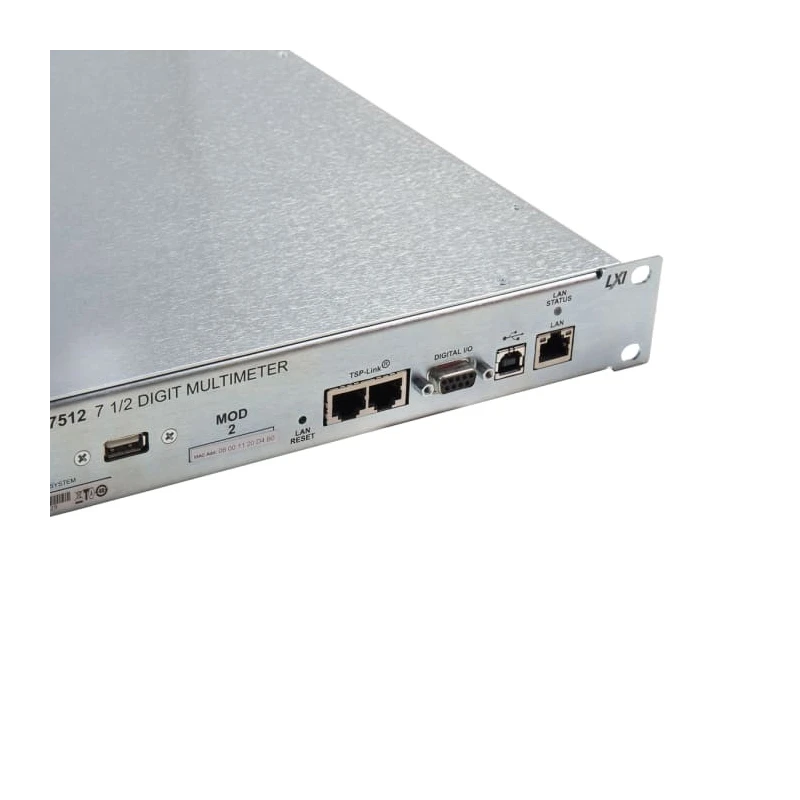

Keithley Dual Channel Rack Digital Multimeter 1kV dc, 3A dc, 7.5 Digit, Lithium Battery Powered DMM7512

Keithley DMM7512 Dual Channel Rack Digital Multimeter is a 7.5 digit precision instrument delivering high accuracy DC current, DC voltage, and resistance measurements with a maximum DC current measurement of 3 A and a voltage measurement up to 1 kV dc. Its rack mount 1U chassis occupies minimal space while housing two fully independent digital multimeters with identical features. Powered by a lithium battery with a 3-year lifespan, the unit provides reliable and autonomous measurement solutions.

This multimeter integrates advanced features including a Test Script Processor (TSP) that enables executing test programs without PC intervention, and TSP-Link interface allowing master-subordinate instrument configurations for efficient test communication and control. It offers waveform capture capabilities at up to 1 Msample/s with 18-bit resolution, synchronized to less than 500 nanoseconds latency, facilitating detailed transient and signal analysis in industrial and laboratory environments.

Dimensions of 696 mm (length), 483 mm (width), and 44 mm (height) make the instrument compact and suitable for rack-mount applications where space optimization is crucial. Operating temperature range spans 0°C to 50°C, making it viable for a range of industrial, automotive, embedded design, laboratory, and manufacturing testing applications.

Applications for the Keithley DMM7512 include automotive battery testing, embedded system design validation, power measurement and analysis, and diagnostic troubleshooting in manufacturing test setups. The inclusion of high precision measurement and autonomous scripting capabilities makes it ideal for high instrument density test systems requiring robust and efficient digital metrology.

The instrument features two independent DMM channels providing simultaneous measurement capabilities. Maximum DC Voltage measurement is 1 kV dc with 100 μV resolution. Supports measurements of DC current up to 3 A with 1 μA resolution.

Equipped with lithium battery for a life expectancy of up to 3 years. Compact dimensions of 696 mm length, 483 mm width, and 44 mm height save valuable rack space. Operates effectively within ambient temperatures from 0°C to 50°C.

Feature-rich with built-in Test Script Processor (TSP) technology allowing autonomous test program execution. Provides up to 1 Msample/s waveform capture, and synchronized waveform measurement across units with sub-microsecond latency.

Designed for demanding environments such as automotive testing, embedded system development, manufacturing test, and power measurement analysis. Constructed with true rack-mountable form factor for integration into high-density test setups.
