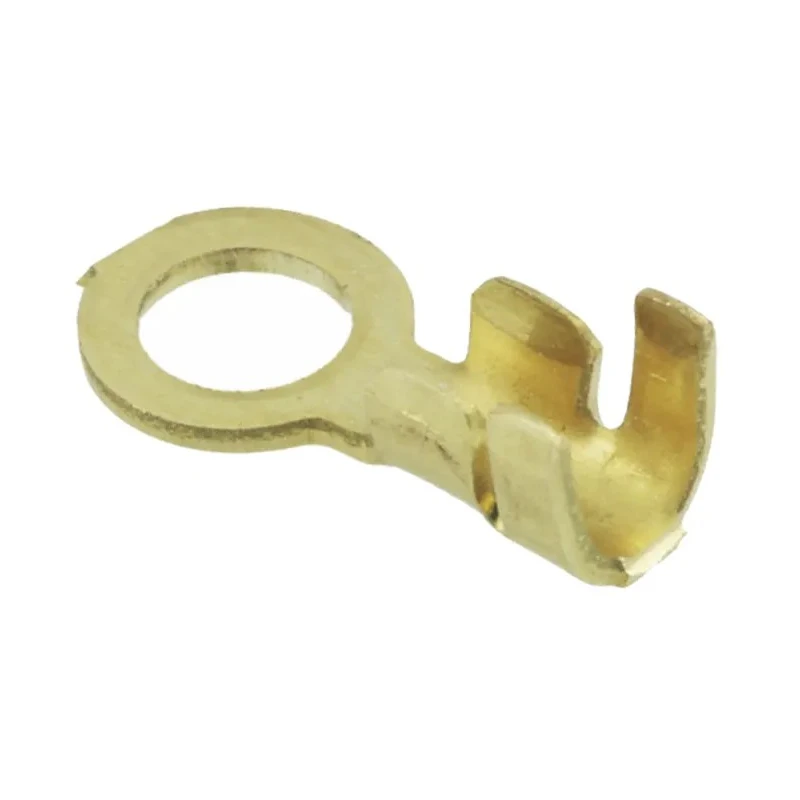

TE Connectivity Uninsulated Ring Terminal M3.5 Stud Size Yellow, 20 AWG 16 AWG Wire Size 61764-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.635mm |
| Model | 61764-1 |
| Insulation | Uninsulated |
| Overall Length | 11.68mm |
| Contact Material | Brass |
| Series | 61764 |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.84mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- This ring terminal is uninsulated, providing reliable electrical connectivity without added insulation.
- It supports a maximum wire size of 16 AWG and a minimum wire size of 20 AWG.
- The ring’s outer diameter measures 5.84 mm and the inner diameter is 3.68 mm, fitting M3.5 studs precisely.
- Manufactured from durable brass with a thickness of 0.635 mm to ensure long-lasting mechanical and electrical performance.
- The overall length of the terminal is 11.68 mm, suitable for compact electrical assemblies.
- Rated to operate between temperatures of -40°C to 110°C, suitable for a variety of industrial environments.
- The terminal features a yellow color for easy identification and wiring management.
Product Description
TE Connectivity 61764-1 uninsulated ring terminal is engineered to provide dependable electrical connections for wire sizes ranging from 20 AWG to 16 AWG. It is specifically designed for M3.5 stud size mounting, ensuring precise and secure installation in electrical assemblies.
Constructed from high-quality brass material, this terminal offers excellent conductivity and mechanical robustness. The uninsulated design suits applications where insulation is managed separately or not required.
Key physical dimensions include an outer ring diameter of 5.84 mm, an inner diameter of 3.68 mm, and an overall length of 11.68 mm. These compact dimensions make the terminal ideal for dense wiring configurations in electronic and power connector systems.
This terminal is rated for continuous operation in a wide temperature range from -40°C up to 110°C, enabling use in harsh industrial, automotive, and electronics manufacturing environments.
This ring terminal is uninsulated, providing reliable electrical connectivity without added insulation. Supports wire sizes from 20 AWG to 16 AWG ensuring broad application compatibility. Made from brass for high conductivity and corrosion resistance.
Fits securely to M3.5 stud sizes for reliable mechanical and electrical connection. Rated temperature range of -40°C to 110°C supports various industrial uses. Yellow color coding assists with wiring identification and organization.
Compact dimensions support space-efficient electrical assemblies.
Applications include use in power connectors, wire terminals, and splicing tasks within industrial, automotive, manufacturing, and electrical equipment maintenance sectors. This uninsulated ring terminal is suitable for technicians and engineers requiring robust and precise wire connections under demanding conditions.
Discover more high-quality wire terminals and power connectors within the Electronics & Electricals category at EnvMart.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal supports a maximum wire size of 16 AWG and a minimum wire size of 20 AWG.
The outer ring diameter is 5.84 mm, the inner ring diameter is 3.68 mm, and the overall length is 11.68 mm.
It is specifically designed to fit M3.5 stud sizes, ensuring a secure connection.
The terminal is constructed from brass, providing good conductivity and mechanical robustness.
It is rated to operate between -40°C and 110°C, making it suitable for various industrial environments.
No, this ring terminal is uninsulated, which allows for direct electrical connectivity without added insulation.
The thickness of this ring terminal is 0.635 mm.
The country of origin for this ring terminal is India.
It is suitable for use in power connectors, wire terminals, and splicing tasks within industrial, automotive, and manufacturing sectors.
The terminal is yellow, which aids in easy identification and wiring management during installation.
This terminal is part of the 61764 series from TE Connectivity.
The maximum wire size supported by this terminal is 1.4 mm².
