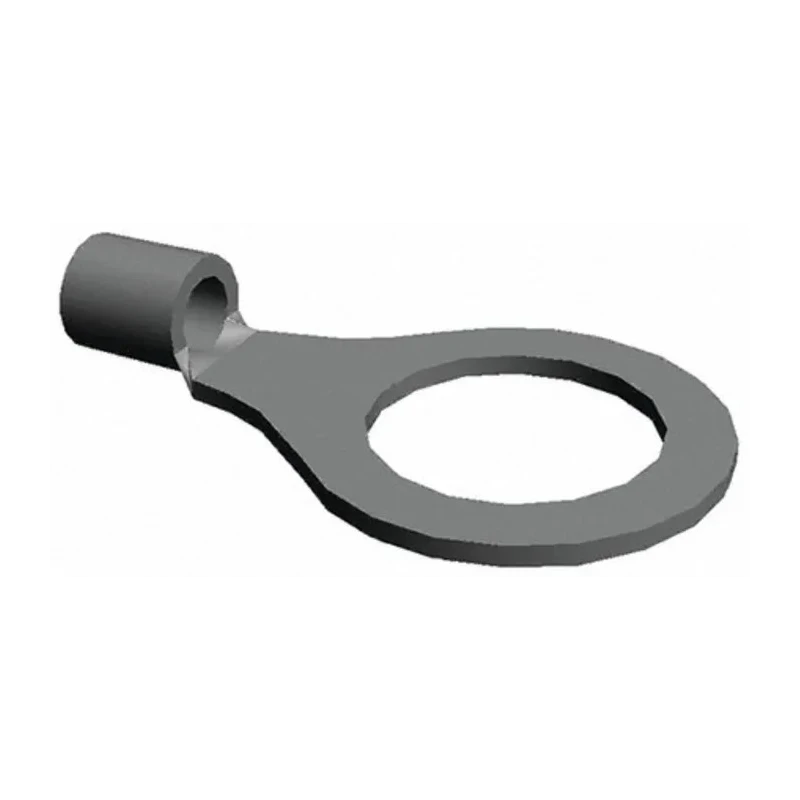

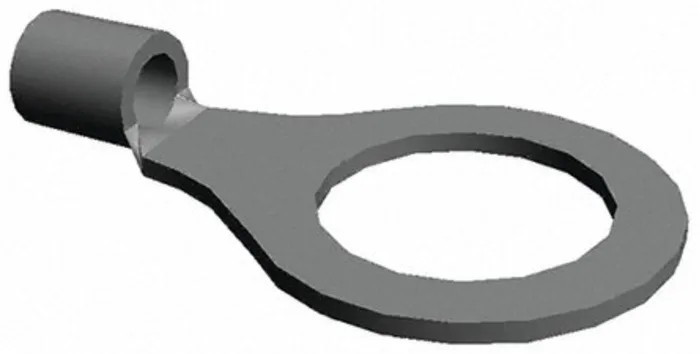

TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 12 AWG 10 AWG Wire Size 35135

TE Connectivity 35135 Solistrand Uninsulated Ring Terminal is engineered for terminating solid, stranded, and irregular-shaped conductors. The robust design ensures exceptional performance and long service life in demanding industrial environments. Constructed of fine grade high conductivity copper, these ring terminals guarantee optimal electrical conductivity, while the tin electro-plating enhances corrosion resistance.

The terminals feature brazed seams to increase barrel strength and resist harsh industrial conditions. The barrel's inner surface is serrated and dimpled to maximize tensile strength and electrical contact area after crimping, resulting in a cost-effective and secure connection. The bell-shaped barrel entrance facilitates easier wire insertion, helping to reduce installation time.

With a maximum operating temperature rated at 170°C, this product is suitable for a wide range of standard applications. It complies with CSA LR7189, RoHS, and UL E13288 standards ensuring industrial safety and environmental compliance.

Dimensions include an overall length of 32.28 mm, outer ring diameter of 19.05 mm, and an inner ring diameter of 13.08 mm. It supports a minimum wire size of 12 AWG (2.6mm²) and a maximum wire size of 10 AWG (6.6mm²), designed for M12 stud size applications.

These terminals are ideal for use in materials handling equipment, heavy machinery, motors, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, instruments, and control systems. The product is made in the United States and is presented as a new, high-quality component for professional industrial use.

Constructed from fine grade high conductivity copper for superior electrical performance. Electro tin plating enhances corrosion resistance and durability. Robust design with brazed seams improves barrel strength under harsh conditions.

Dimpled and serrated barrel increases electrical contact and tensile strength. Bell-shaped barrel enables quick and hassle-free wire insertion. Maximum rated temperature of 170°C suitable for standard industrial applications.

Compliant with relevant CSA, RoHS, and UL safety and environmental standards. Designed for M12 stud size, supporting 12 AWG to 10 AWG wire sizes. Ideal for a wide variety of industrial and electrical applications. Explore EnvMart’s category of Power Connectors and Ring Terminals for more advanced industrial electrical components and accessories tailored to your professional needs.
