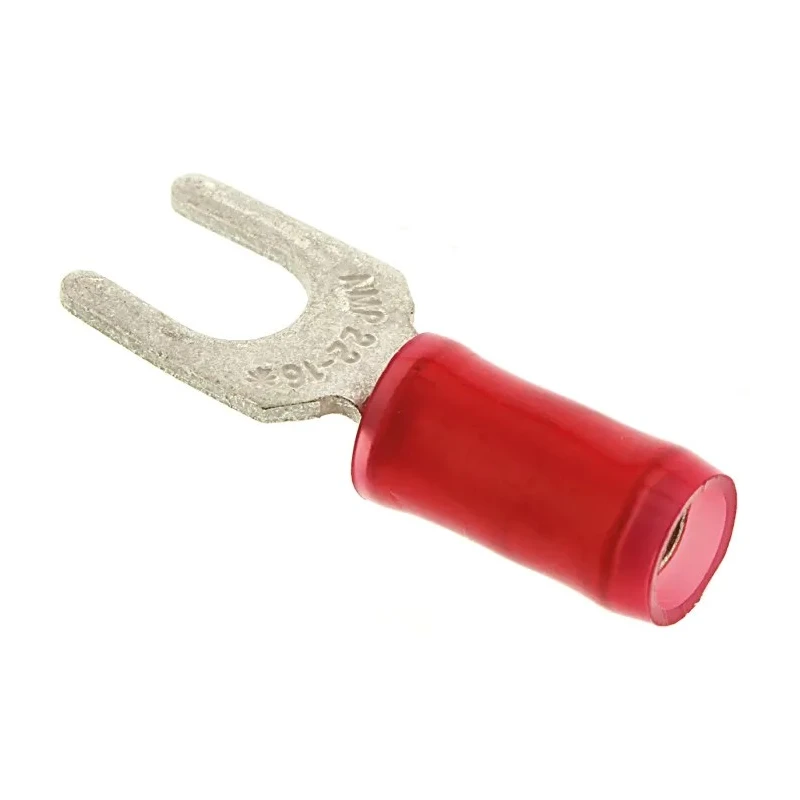

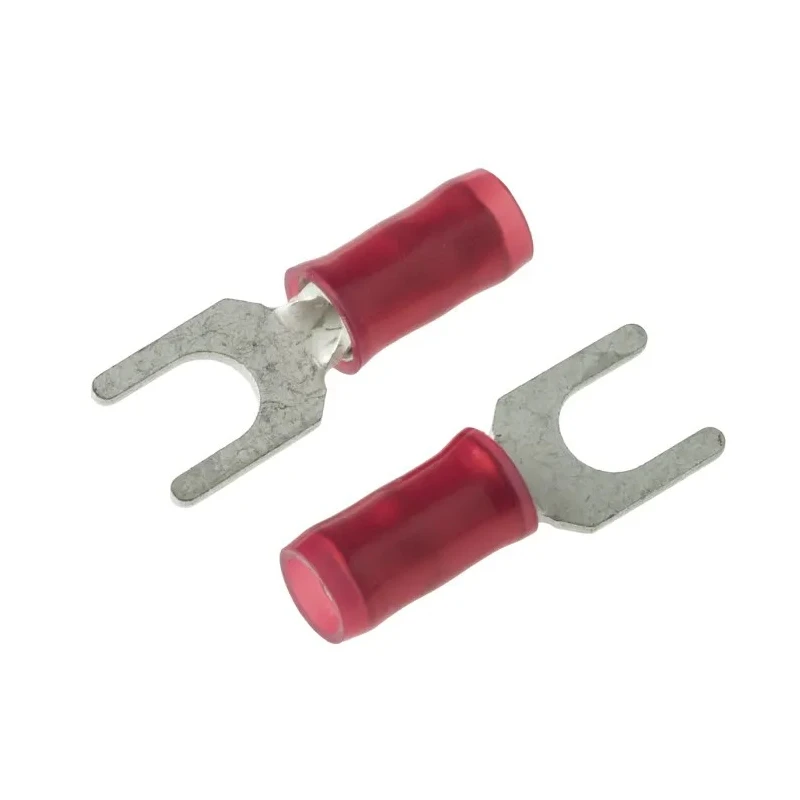

TE Connectivity PIDG Insulated Fork Terminal 22 AWG to 16 AWG M4 Stud Size Nylon Red 130516

TE Connectivity 130516 PIDG Insulated Fork Terminal is engineered for dependable crimp connections in electrical wiring applications, supporting wire sizes 22 AWG to 16 AWG with an M4 stud size. This fork terminal features a precision-formed copper body with a tin-plated contact surface ensuring superior conductivity and corrosion resistance. The insulated nylon sleeve, colored red, enhances wire identification and insulation durability.

The terminal’s construction includes a copper sleeve around the wire barrel that offers reinforced insulation support, minimizing cable damage from bending or vibration. Serrations inside the wire barrel improve tensile strength and secure electrical contact after crimping, making it suitable for challenging circuit environments.

The funnelled wire entry allows straightforward wire insertion, reducing production time. These terminals meet or exceed MIL-T-7928, Type II, Class 1 and 2 requirements, making them ideal for industrial, instrumentation, aerospace, transportation, and appliance wiring applications.

The terminal's compact overall length of 20.8 mm and thickness of 0.79 mm enable use in tight panel spaces. The red nylon insulation makes wire size identification fast and reliable in complex wiring systems.

High conductivity copper body with tin plating for enhanced performance. Nylon insulation sleeve colored red for visual wire size coding. Copper sleeve supports wire insulation durability after crimping. Serrated barrel ensures strong electrical and mechanical connection.

Funnelled wire entry enables rapid wire insertion in high-speed production. Compliant with recognized military standards for electrical terminals. Suitable for a wide range of industrial and commercial electrical applications.

Engineers and technicians rely on TE Connectivity PIDG Fork Terminals for safe, durable, and efficient wiring in automotive, HVAC, machinery, and control panel systems. Browse EnvMart’s comprehensive range of wire terminals and connectors for your industrial needs.
