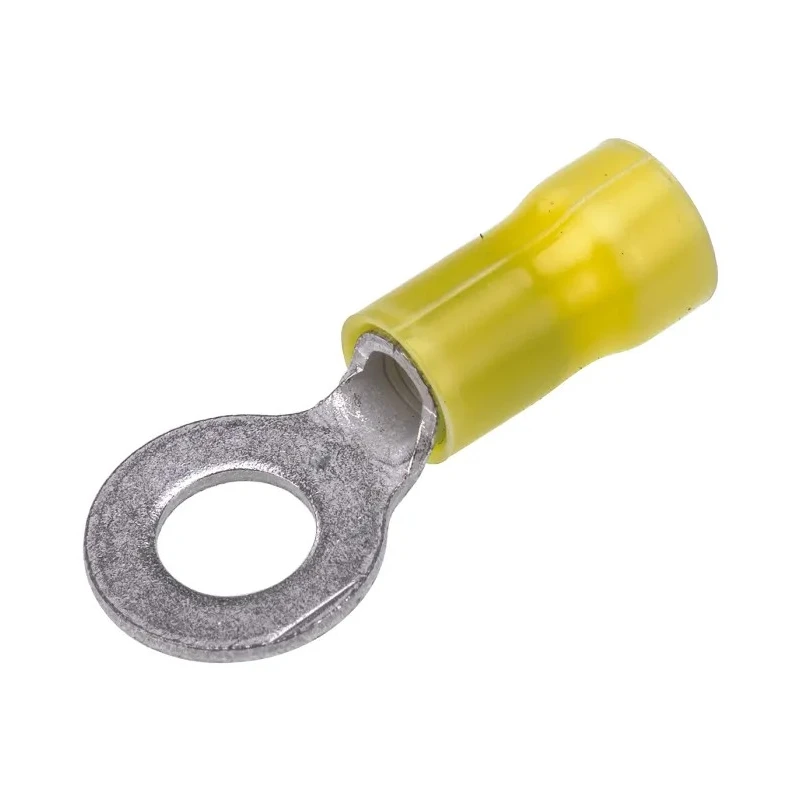

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 165035

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 165035

Name: TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 165035
Brand: TE Connectivity
SKU: 210000
Price: 0.58 USD
Availability: InStock



Category Wire Terminals & Splices Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Yellow
Model	165035
Insulation	Insulated
Overall Length	30.07mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	3mm²
Maximum Wire Size mm²	6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	12.7mm
Inner Ring Diameter	6.7mm
Stud Size	M6

Key Features

Constructed with high conductivity copper material plated with tin for enhanced electrical contact.
Insulated vinyl sleeve provides high dielectric strength and safety.
Overall length of 30.07 mm ensures precise fit in electrical applications.
Suitable for wire sizes from 3 mm² to 6 mm² compatible with AWG 12 to 10.
Outer ring diameter measures 12.7 mm while the inner ring diameter is 6.7 mm.
Designed to withstand maximum operating temperatures up to 105°C.
Serrated inner barrel enhances tensile strength and electrical contact after crimping.
Funnel entry on the wire barrel facilitates easy insertion of stripped wires.

Product Description

TE Connectivity 165035 PLASTI-GRIP insulated ring terminal is engineered for reliable electrical connections in industrial, laboratory, and manufacturing environments. It features a vinyl insulation sleeve rated 94V-0 for robust dielectric strength and safety during operation. The ring terminal is constructed with high conductivity copper that is tin plated to reduce corrosion and maximize electrical conductivity.

Compatible with wire gauges from 12 AWG to 10 AWG (3 to 6 mm²) and designed with an M6 stud size, this terminal measures 30.07 mm in overall length. The outer ring diameter is 12.7 mm and the inner diameter is 6.7 mm, providing a secure and precise fit. The inner barrel is serrated, ensuring strong tensile strength and optimal electrical contact after crimping. The wire barrel features a funneled entry that simplifies insertion of stripped wires, making installation efficient and reliable.

This terminal is ideal for various electrical power connector applications including commercial and industrial wiring, automotive electrical systems, and HVAC installations requiring dependable insulated ring terminals that endure operational temperatures up to 105°C.

High conductivity copper contact material with tin plating for corrosion resistance. Vinyl insulation sleeve rated to 94V-0 for enhanced dielectric strength. Serrated inner barrel provides superior tensile strength and electrical contact.

Compatible with 12 AWG to 10 AWG wire sizes for versatility in electrical connections. M6 stud size and precise dimensional tolerances ensure secure fittings. Maximum operating temperature of 105°C suits demanding industrial conditions.

Easy wire insertion enabled by the funneled barrel entry design.

TE Connectivity's PLASTI-GRIP insulated ring terminals offer a trusted solution for electrical connection needs in industrial manufacturing, automotive systems, HVAC setups, and laboratory applications. Browse EnvMart for a complete selection of wire terminals and connectors to support your project requirements.
