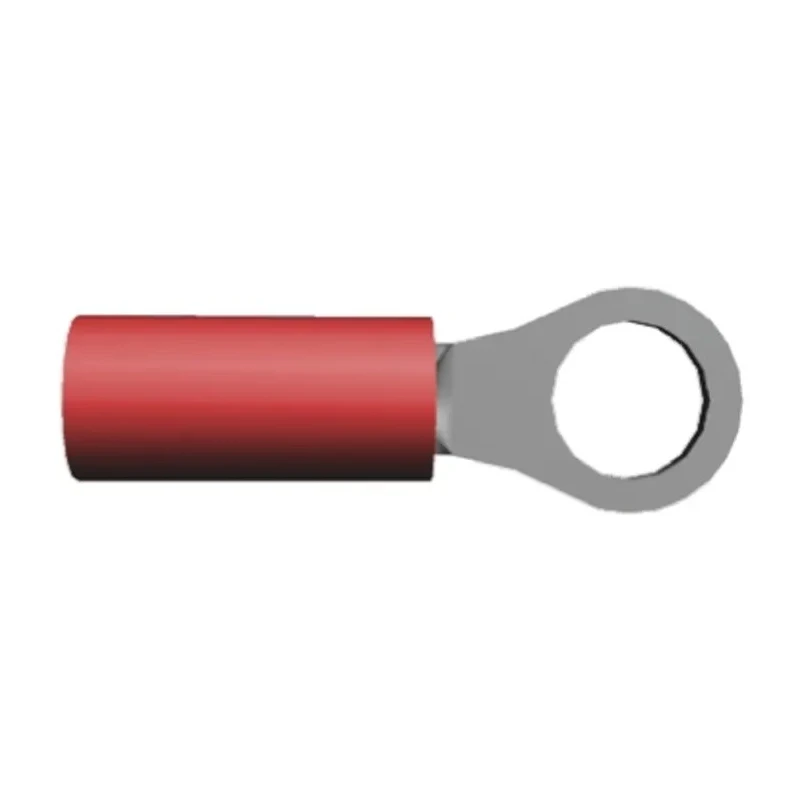

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Nylon Insulation Red 31887
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 31887 |
| Insulation | Insulated |
| Overall Length | 20.24mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Features a tin-plated contact to resist corrosion.
- Nylon insulation sleeve offers wire identification and protection.
- Overall length measures 20.24 mm for compact installation.
- Max operating temperature of 105°C ensures durability under thermal stress.
- Funnelled entry design facilitates fast and secure wire insertion.
- Copper sleeve reinforces barrel insulation support to prevent wire fraying.
- Suitable for demanding industrial and aerospace wiring applications.
Product Description
TE Connectivity 31887 PIDG Insulated Ring Terminal is a precision crimp terminal featuring a high conductivity copper body with tin plating for reliable electrical connections. The M5 stud size supports wire gauges from 22 AWG to 16 AWG, making it a versatile choice for wiring applications requiring compact and strong connections.
Equipped with a durable nylon insulation sleeve, this terminal provides excellent wire identification with its red color coding and enhances protection against abrasion and environmental exposure. The terminal's overall length of 20.24 mm allows for efficient panel and terminal block connections.
The copper barrel contains serrated edges that ensure excellent tensile strength and contact after crimping. A copper sleeve surrounding the barrel improves wire insulation support and prevents fraying, while the funnelled wire entry allows rapid wire insertion during high-speed production lines.
With a maximum operating temperature of 105°C, the terminal reliably performs in harsh electrical and thermal environments. Ideal applications include instrumentation, control panels, transportation, motors, aerospace systems, lighting, and power supply units.
These terminals meet or exceed MIL-T-7928 Type II, Class 1 and 2 standards, offering reliability in critical industrial and aerospace use cases. The red nylon sleeve aids easy wire gauge identification and tooling selection.
Constructed with high conductivity copper for excellent electrical performance. Features a tin-plated contact to resist corrosion. Nylon insulation sleeve offers wire identification and protection. Overall length measures 20.24 mm for compact installation.
Max operating temperature of 105°C ensures durability under thermal stress. Funnelled entry design facilitates fast and secure wire insertion. Copper sleeve reinforces barrel insulation support to prevent wire fraying. Suitable for demanding industrial and aerospace wiring applications.
Designed to meet or exceed MIL-T-7928 Type II, Class 1 and 2 standards. Explore more industrial electrical components and connectors at EnvMart for reliable wire termination solutions.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire gauges from 22 AWG to 16 AWG.
The maximum operating temperature is 105°C, allowing it to perform reliably in thermal stress conditions.
It is constructed with high conductivity copper and features a tin-plated contact to resist corrosion, with a nylon insulation sleeve.
The overall length of this terminal is 20.24 mm, making it suitable for compact installations.
The stud size for this terminal is M5, which is compatible with various mounting applications.
The funnelled entry design facilitates fast and secure wire insertion, which is beneficial for high-speed production lines.
This terminal meets or exceeds MIL-T-7928 Type II, Class 1 and 2 standards, ensuring reliability in critical applications.
The nylon insulation sleeve is red, providing wire identification and protection against abrasion and environmental exposure.
It is suitable for demanding industrial and aerospace wiring applications, including instrumentation and control panels.
The copper sleeve reinforces barrel insulation support, preventing wire fraying and ensuring better electrical contact after crimping.
The contact material is copper, which provides excellent electrical performance.
The serrated edges in the copper barrel ensure excellent tensile strength and contact after crimping, enhancing connection reliability.
