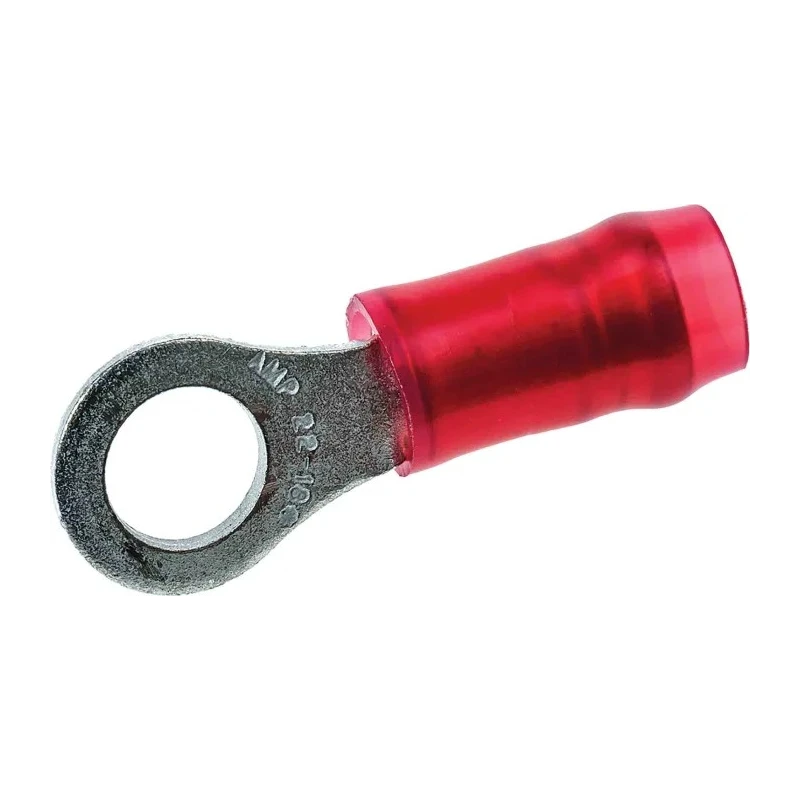

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG Wire Size Nylon Red 31888

TE Connectivity 31888 PIDG Insulated Ring Terminal with M4 Stud Size and wire accommodation from 22 AWG to 16 AWG provides a reliable and durable solution for electrical and electronic wire terminations. This red nylon insulated terminal features a high conductivity copper body with a tin plating that ensures efficient electrical contact and resistance to corrosion.

The terminal's precision-formed copper barrel incorporates serrations inside for maximum contact and tensile strength when crimped. The copper sleeve surrounding the wire barrel improves insulation retention and prevents wire fraying. A color-coded nylon sleeve enhances easy identification of wire size and tooling requirements, while a funnel entry design prevents wire strands from turning back, facilitating high-speed wire insertion during manufacturing.

With dimensions including a 7.92 mm outer ring diameter, 4.34 mm inner ring diameter, 0.79 mm thickness, and 21.44 mm overall length, this ring terminal is engineered for a secure fit on M4 studs. Rated for a maximum operating temperature of 105°C, it meets demanding industrial and commercial standards without certifications. These terminals are widely used across various industries including instrumentation, control systems, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliances.

Constructed from high conductivity copper with tin plating for reliability and corrosion resistance. PIDG (Pre-Insulated Diamond Grip) design offers uniform and reliable crimp performance. Insulation by a nylon sleeve in red color facilitates wire size identification from 22 AWG to 16 AWG.

Funneling wire entry allows quick and secure wire insertion, reducing production time. Copper sleeve prevents wire fraying and enhances insulation support for durable wiring. Compact size and optimized shape ensure compatibility with M4 stud size terminals.

Capable of reliable service up to 105°C max operating temperature in various applications. Widely applicable in electronic components, industrial controls, power connectors, and automotive wiring.

Choose this TE Connectivity PIDG insulated ring terminal for dependable wire-to-wire or wire-to-connection solutions in professional electrical assembly, manufacturing, and maintenance tasks. Explore our electronics connectors catalog for more high-quality components for your industrial and commercial wiring needs.
