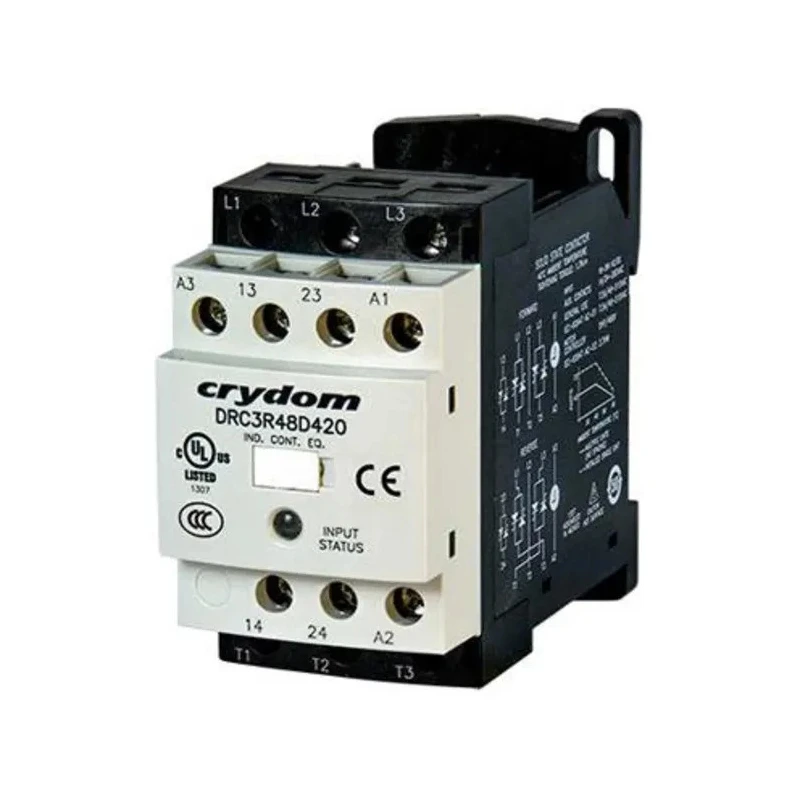

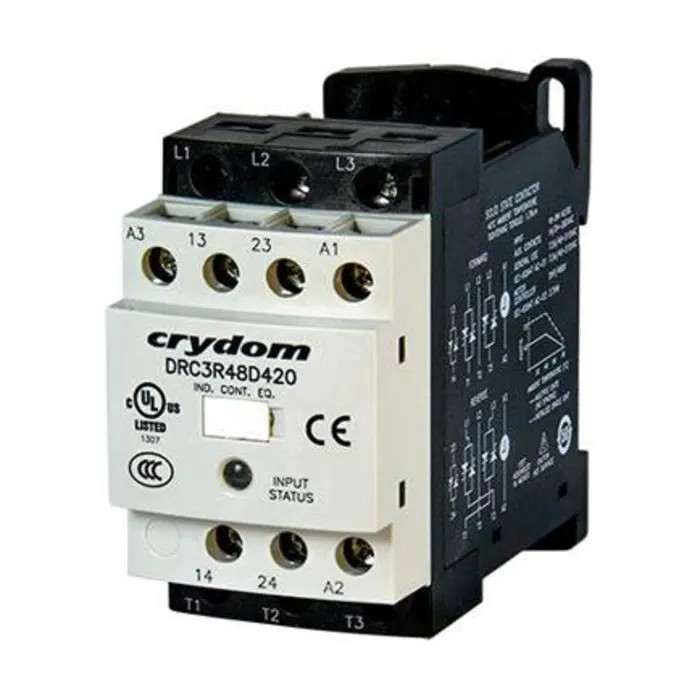

Crydom Solid State Relay 7.6 A Load 510 V AC Load DIN Rail Mount 30V AC/DC Control DRC3R48D420
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 86.71mm |
| Length | 45.31mm |
| Model | DRC3R48D420 |
| IP Rating | IP20 |
| Width | 95.6mm |
| Mount Type | DIN Rail |
| Series | DRC |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 2 NO |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn On |
| Maximum Load Current | 7.6A |
| Maximum Load Voltage | 510V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 18V ac |
| Maximum Control Voltage | 30V ac/dc |
| Off State Leakage Current | 5.5mArms |
Key Features
- Supports maximum load voltage of 510 V AC and minimum load voltage of 48 V AC.
- Operates reliably between -30°C to 80°C in demanding environments.
- Features 2 NO contact configuration with screw terminals.
- Zero voltage turn on function reduces electrical noise and prolongs load life.
- Compact size fits standard 35mm DIN rail installations.
- Interlock control allows safe off, forward, and reverse operations.
- Lightweight design of 228 grams minimizes mounting strain.
- High switching frequency of 9000 cycles per hour for heavy-duty use.
Product Description
The Crydom DRC3R48D420 Solid State Relay is a robust DIN rail mount contactor designed for precise AC load control, rated for a maximum load current of 7.6 A and load voltages up to 510 V AC.
This device features a two normally open (2 NO) contact configuration with screw terminals for robust electrical connections. The zero voltage turn-on switching mechanism minimizes electrical noise and prolongs load life. Its compact form factor with dimensions 45.31mm length, 86.71mm height, and 95.6mm width allows installation in tight spaces on standard 35mm DIN rails.
Advanced thermal management ensures stable performance under heat stress, while the multicolour LED indicator simplifies operational status monitoring. With a maximum switching frequency of 9000 cycles per hour, this relay is optimized for frequent switching tasks in beverage dispensing machines, packing equipment, and other automated systems.
Reliable operation within a wide voltage range from 48 V AC to 510 V AC load. Interlock control enables safe off, forward, and reverse motor control. Compliant with global standards: C-UL-US, IEC60947-2, CE, RoHS, CCC, EMC, IEC 61000 series, and IEC 60068 series testing.
Lightweight at just 228 g, reducing mechanical load on mounting structures.
This solid state relay is ideal for demanding industrial, commercial automation, electrical control, and manufacturing applications requiring dependable, silent relay performance. Browse our Solid State Relay selection for compatible control and mounting accessories to optimize your system through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this model is 510 V AC.
This solid state relay supports a minimum load voltage of 48 V AC.
The maximum load current for this relay is 7.6 A.
The dimensions of this model are 45.31 mm in length, 86.71 mm in height, and 95.6 mm in width.
It operates reliably within a temperature range of -30°C to 80°C.
This model features a 2 normally open (2 NO) contact configuration.
The zero voltage turn-on function reduces electrical noise and prolongs the load life.
It uses screw terminals for robust electrical connections.
The maximum switching frequency is 9000 cycles per hour.
This relay is designed for DIN rail mounting.
It complies with global standards including C-UL-US, IEC60947-2, CE, RoHS, CCC, EMC, IEC 61000 series, and IEC 60068 series testing.
The weight of this model is 228 grams.
