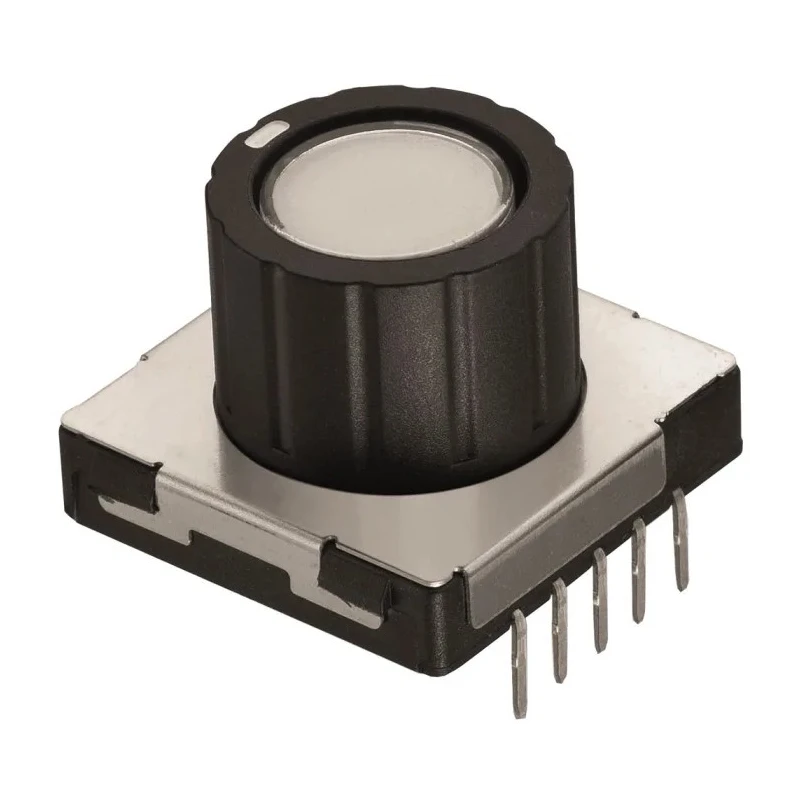

Wurth Elektronik 8 Position 2 CO Illuminated Rotary Pushbutton Switch 100mA 30V DC Solder WS-RPTL 481RV12172100
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 14.2mm |
| Brand | Wurth Elektronik |
| Height | 14.45mm |
| Model | 481RV12172100 |
| Depth | 20.4mm |
| Width | 20.4mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide, Stainless Steel (Cover) |
| Series | WS-RPTL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 2 CO |
| Number of Positions | 8 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 18 |
| Standards/Approvals | RoHS, REACH |
| Actuator Colour | Black |
| Switch Contact Current | 100mA |
| Mechanical Life | 50000Cycles |
| Angle of Throw | 45 ° |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| LED bicolour combination | red / bright green |
Key Features
- The rotary switch supports 100mA contact current suitable for low power applications.
- It has eight positions providing multiposition control functionality.
- The housing is made of polyamide with a stainless steel cover for durability.
- It mounts via through hole with a solder terminal type for reliable PCB mounting.
- The actuator colour is black with a 45° angle of throw offering precise switch operation.
- Operational temperature range is from -40°C to 85°C ensuring robust performance in various environments.
- The switch diameter is 14.2mm and height 14.45mm with a mechanical life of 50,000 cycles.
- Footprint pin spacing measures 2.54mm between pins and 5.08mm between rows for standard PCB layouts.
Product Description
Wurth Elektronik 481RV12172100 is an illuminated rotary pushbutton switch offering 8 distinct positions and 2 CO contact configuration with 100mA and 30V DC rating. The switch features a DPDT momentary pushbutton centre actuator coloured in black with an angle of throw of 45°. Its construction includes a polyamide housing with a stainless steel cover for enhanced mechanical strength and resistance to wear.
The device is designed for through hole mounting onto PCBs with solder terminals. It supports a wide operating temperature range from -40°C to 85°C, suitable for harsh industrial environments. The mechanical endurance of this switch is rated to 50,000 cycles ensuring reliable long-term switching operation.
Dimensions are compact with 14.2mm diameter and 14.45mm height, making it suitable for dense PCB assemblies. The precision pin spacing of 2.54mm between pins and 5.08mm between rows facilitates standard PCB layouts and easy integration into electronic systems.
The illuminated bicolour LED (red and bright green) enhances visual status indication in automation, control panels, instrumentation, and other electrical and industrial applications requiring multiple switch positions and clear feedback. This Wurth rotary switch complies with RoHS and REACH standards, assuring environmental safety and quality compliance.
The switch supports a contact current of 100mA, optimized for low voltage DC switching. The actuator black colour and ergonomic design provide precise user control for various equipment interfaces. Robust materials and engineering allow operation in a wide temperature range from -40°C to 85°C, suitable for industrial and commercial environments.
Mechanical life of 50,000 cycles assures durability and maintenance-free usage in demanding applications. Compact PCB footprint and through hole mounting method enable versatile integration into diverse electronic and industrial equipment.
Ideal for use in industrial automation, control systems, electrical panels, instrumentation, and interface devices requiring reliable rotary switching. Complies fully with industry regulations including RoHS and REACH, ensuring safety and sustainability.
Discover this and other high-quality Rotary Switches and components from Wurth Elektronik in the Rotary Switch category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a contact current of 100mA, making it suitable for low power applications.
The maximum operating temperature for this rotary switch is 85°C, ensuring it can perform in various environments.
This rotary switch features eight distinct positions, providing multiposition control functionality.
The actuator has an angle of throw of 45°, allowing for precise switch operation.
The switch has a diameter of 14.2mm and a height of 14.45mm, with a depth and width of 20.4mm each.
It is designed for through hole mounting onto PCBs with solder terminals, ensuring reliable installation.
The housing is made of polyamide with a stainless steel cover, providing mechanical strength and wear resistance.
The mechanical life of this rotary switch is rated at 50,000 cycles, ensuring long-term operational reliability.
The minimum operating temperature for this switch is -40°C, allowing it to function in harsh conditions.
It features a bicolour LED with red and bright green combinations for visual status indication.
This model complies with RoHS and REACH standards, ensuring environmental safety and quality compliance.
The footprint pin spacing measures 2.54mm between pins and 5.08mm between rows, suitable for standard PCB layouts.
