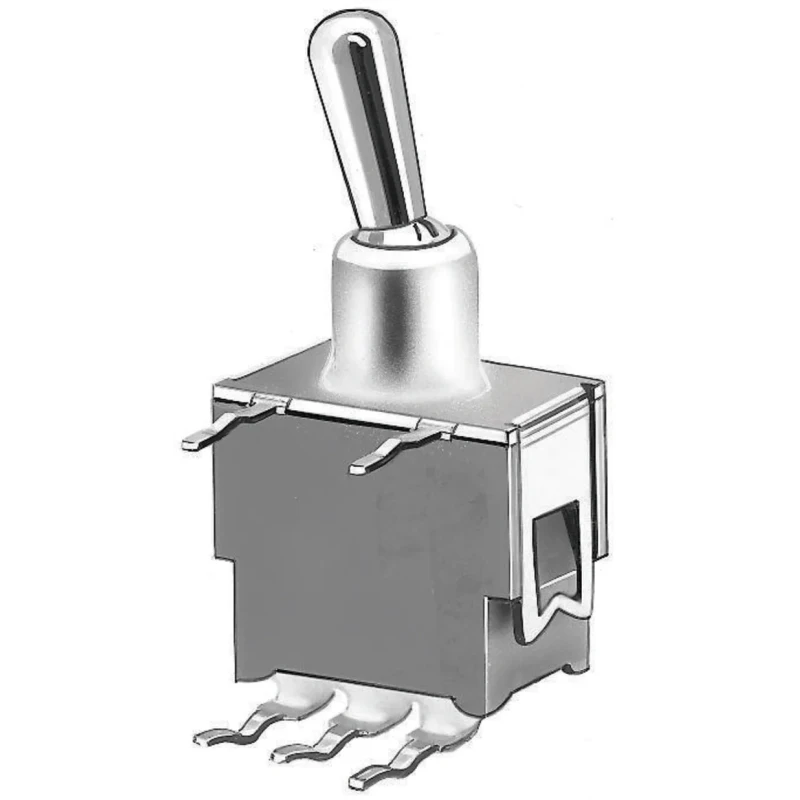

KNITTER-SWITCH Toggle Switch PCB Mount On-Off-On SPDT, 48 V dc, 48 V ac ATE 1 G-RA
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 18mm |
| Length | 9mm |
| Model | ATE 1 G-RA |
| Width | 9mm |
| Mount Type | PCB |
| Series | ATE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Switch Configuration | DPDT, SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 6mm |
| Contact DC Voltage | 48V dc |
| Switch Contact Current | 50mA |
| Mechanical Life | 60000Operations |
| Contact AC Voltage | 48V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- This toggle switch features a single pole double throw (SPDT) contact configuration.
- Switch operation is On-Off-On with through hole terminal mounting for PCB.
- It supports a contact current of 50mA suitable for low power applications.
- The nickel plated brass actuator offers durability and a 6mm length for effective switching.
- Rated for 48 V dc and 48 V ac contact voltages ensuring versatile use.
- Operates within a temperature range from -20°C to 80°C.
- The switch body dimensions are compact at 9mm length, 9mm width, and 18mm height.
- Mechanical life of the switch is 60000 operations assuring long service.
Product Description
KNITTER-SWITCH ATE 1 G-RA Toggle Switch is a compact, durable switch designed for PCB mounting applications in low voltage electronic circuits. With On-Off-On operation and SPDT configuration, this toggle switch offers reliable control over circuit connectivity up to 48 V dc and 48 V ac.
The actuator is made from nickel plated brass providing strength and corrosion resistance. Its 6mm length enables precise manual handling, while the switch's overall dimensions of 9mm by 9mm by 18mm make it suitable for tight spaces on printed circuit boards.
This switch supports a contact current of 50mA, suitable for signal level and low power switching tasks in instrumentation, automation, and electrical control systems. It mounts via through hole terminals for secure, long-lasting electrical connectivity and mechanical stability.
Operating temperature ranges from -20°C to 80°C, allowing usage in various environmental conditions including industrial and laboratory settings. It meets RoHS compliance, ensuring reduced hazardous substances and environmental safety.
This toggle switch features a single pole double throw (SPDT) contact configuration. Switch operation is On-Off-On with through hole terminal mounting for PCB. It supports a contact current of 50mA suitable for low power applications.
The nickel plated brass actuator offers durability and a 6mm length for effective switching. Rated for 48 V dc and 48 V ac contact voltages ensuring versatile use. Operates within a temperature range from -20°C to 80°C. The switch body dimensions are compact at 9mm length, 9mm width, and 18mm height.
Mechanical life of the switch is 60000 operations assuring long service. Complies with RoHS standards for environmental safety and is manufactured in China.
This toggle switch is ideal for electronics manufacturing, automation systems, and PCB assembly requiring compact, reliable, and compliant switching solutions. KNITTER-SWITCH products are known for quality and precise electrical performance.
Explore the Electronics & Electricals category on EnvMart for a wide range of advanced Toggle Switches, components, and accessories to suit industrial, laboratory, and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this toggle switch is 80°C, making it suitable for various environmental conditions.
It is rated for contact voltages of 48 V dc and 48 V ac, ensuring compatibility with low voltage applications.
The mechanical life of this switch is rated at 60,000 operations, providing a long service life for reliable performance.
The dimensions of this unit are 9mm in length, 9mm in width, and 18mm in height, making it compact for PCB mounting.
This toggle switch uses through hole terminals for secure mounting on printed circuit boards (PCBs).
It supports a contact current of 50mA, suitable for low power applications in electronic circuits.
The actuator is made from nickel plated brass, providing strength and corrosion resistance.
The minimum operating temperature for this toggle switch is -20°C, allowing it to function in colder environments.
Yes, this switch complies with RoHS standards, ensuring reduced hazardous substances and environmental safety.
This model is ideal for low voltage electronic circuits, including instrumentation, automation, and electrical control systems.
The actuator length is 6mm, allowing for effective manual handling during operation.
