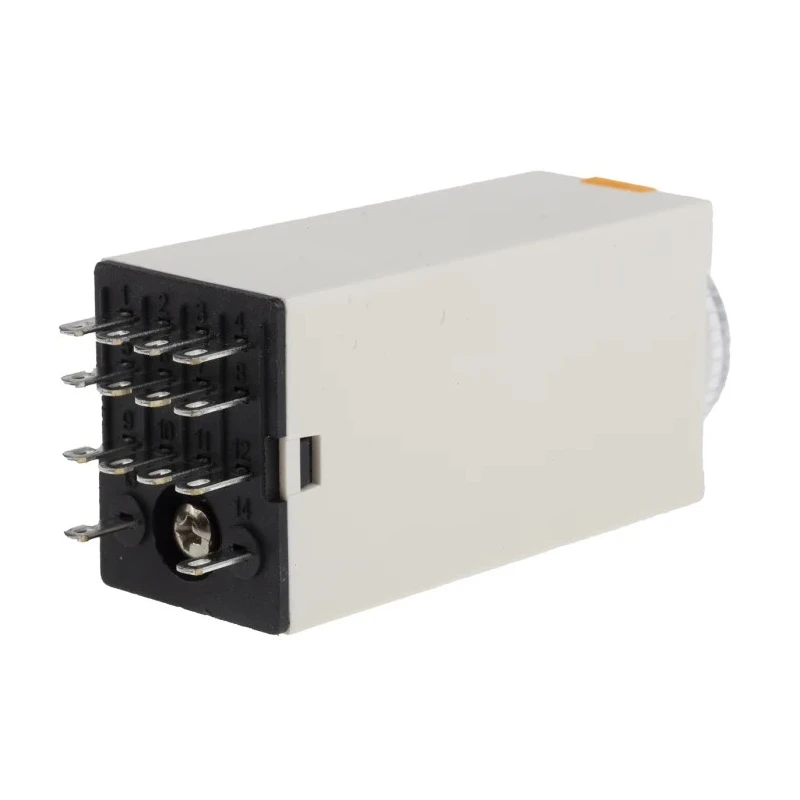

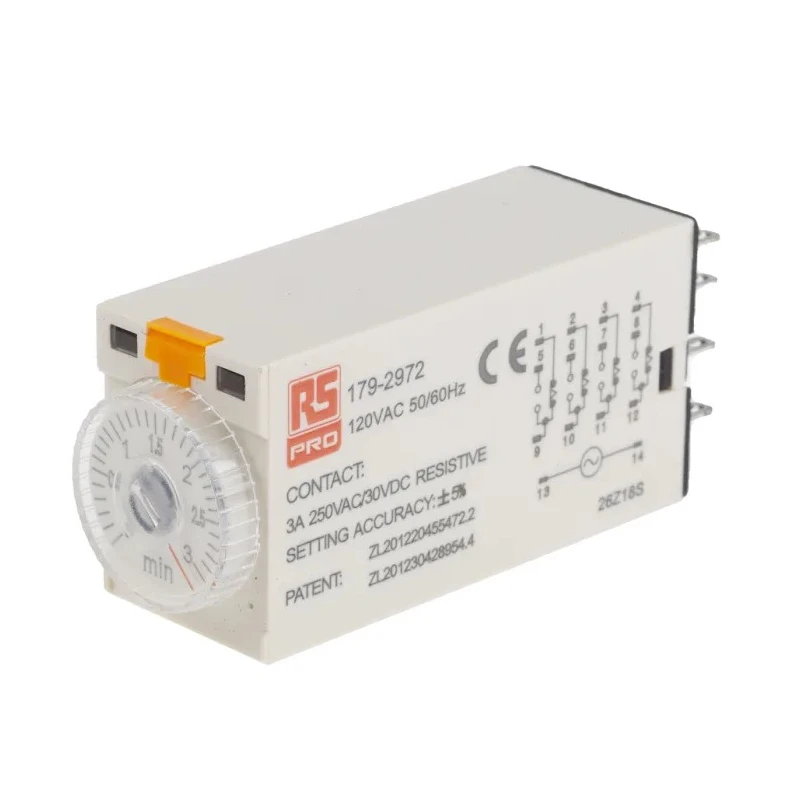

RS PRO Timer Relay 4-Contact 110V AC, 0.1 to 3 min Time Range, 1-Function, 4PDT Switch Configuration 179-2972
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 2.8mm |
| Length | 53mm |
| Model | 179-2972 |
| Mode | ON Delay |
| Width | 21.5mm |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 to 3 min |
| Terminal type | 14-Pin |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 3A |
| Timing Adjustment | Dial |
| Supply AC Voltage | 110V ac |
| Suitable sockets for the 8-pin and 14-pin timer relays from this series are | 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.) |
Key Features
- Operates with a supply voltage of 110V AC for efficient timing control.
- Provides four contacts configured as 4PDT for versatile switching.

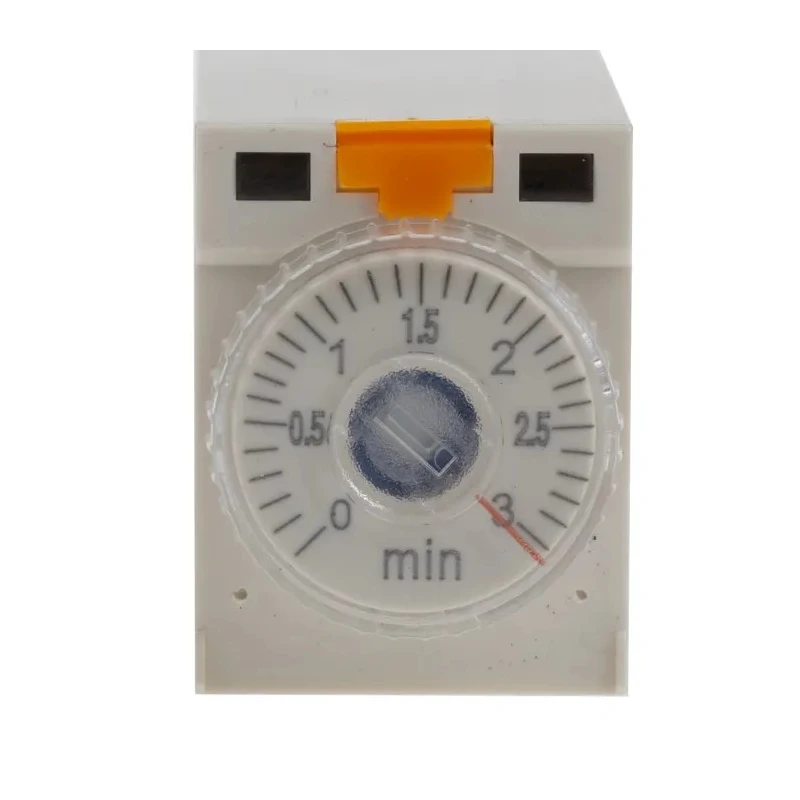

- Timing adjustable via an analogue dial from 0.1 to 3 minutes.
- Supports switching voltage of up to 250V AC and contact current of 3A.
- Designed for ON delay mode timing functions suitable for automation systems.
- Compact dimensions with length 53 mm, width 21.5 mm, height 2.8 mm.
- Operates reliably within temperature range from -10°C to 55°C.
- Features 14-pin terminal type with plug-in design for easy installation.
Product Description
RS PRO 179-2972 Timer Relay 4-Contact 110V AC is an industrial-grade timing relay designed for precise time delay applications in electrical, industrial automation, and control systems. This model offers an adjustable time range of 0.1 to 3 minutes with a single ON delay function, making it ideal for switching operations requiring short to medium delays.
The relay features a 4PDT contact configuration with four contacts capable of switching up to 250V AC at 3A current, suitable for controlling various devices in automation circuits. The supply voltage is 110V AC, and it utilizes a user-friendly analogue dial for timing adjustment, allowing for quick and accurate setting changes on-site.
Compact in size with dimensions of 53 mm length, 21.5 mm width, and 2.8 mm height, the relay fits applications with space constraints. It has a durable 14-pin plug-in terminal type which simplifies installation and maintenance. The device operates reliably between -10°C and 55°C, ensuring performance stability in typical industrial environments.
The RS PRO 179-2972 relay conforms to RoHS environmental standards and is manufactured in China. Suitable sockets for this series include models 121-7802 or 121-7803, which come with metal clips for secure mounting.
Operates at 110V AC supply voltage with 4 contacts in 4PDT configuration. 0.1 to 3 min adjustable time range with ON delay timing mode. Switching voltage up to 250V AC and contact current of 3A. Analogue dial adjustment for precise timing control.
Compact 14-pin plug-in relay for easy installation and maintenance. Temperature range from -10°C to +55°C for stability in industrial environments. RoHS compliant ensuring adherence to environmental norms. Compatible sockets include 121-7802 and 121-7803 models.
This Timer Relay is widely used in industrial automation, electrical control panels, manufacturing processes, and HVAC systems requiring reliable time-delay functions. Browse the extensive range of RS PRO relays and accessories at EnvMart to find the right component for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable time range of 0.1 to 3 minutes.
It features a 4PDT (4 Pole Double Throw) contact configuration with four contacts.
This model can switch voltages up to 250V AC and has a contact current rating of 3A.
It operates with a supply voltage of 110V AC.
The relay operates reliably within a temperature range of -10°C to 55°C.
Timing is adjusted via a user-friendly analogue dial.
It uses a 14-pin plug-in terminal type for easy installation and maintenance.
The dimensions are 53 mm in length, 21.5 mm in width, and 2.8 mm in height.
This timer relay is designed for ON delay mode timing functions.
It is compatible with sockets 121-7802 and 121-7803, which come with metal clips for secure mounting.
The relay conforms to RoHS environmental standards.
It is suitable for use in industrial automation, electrical control panels, manufacturing processes, and HVAC systems requiring reliable time-delay functions.
