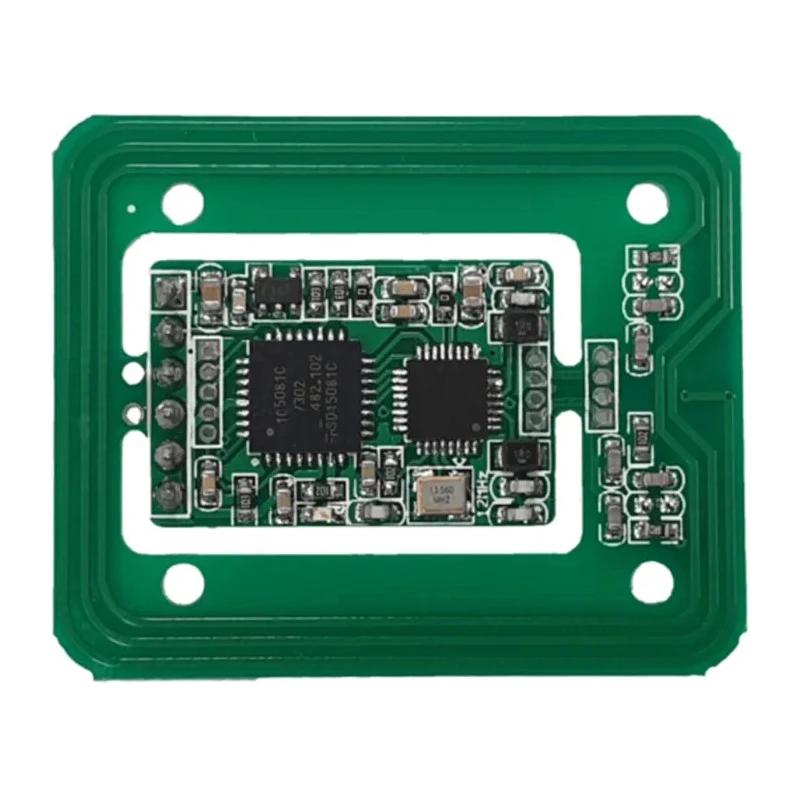

RF Solutions RFID Module 13.56 MHz 3-5 V TTL Interface Compact Panel Mount RFID1-13RTTL-3V
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 13.56MHz |
| Brand | RF Solutions |
| Height | 0.9mm |
| Length | 25.5mm |
| Model | RFID1-13RTTL-3V |
| Width | 16mm |
| Mount Type | Panel |
| Series | RFID-13RTTL |
| Maximum Operating Temperature | 80°C |
| Sub Type | NFC Reader |
| Minimum Operating Temperature | 0°C |
| Component Type | Module |
| Interface Type | TTL |
| Standards/Approvals | WEEE Directive 2002/96/EC, RoHS Directive 2002/95/EC, European Radio Equipment Directive 2014/53/EU, CE, ISO/IEC 14443 Type A |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Maximum RF Data Rate | 106kbps |
| Cards/Tags Supported | Mifare one (S50 |
Key Features
- This RFID module supports frequency of 13.56 MHz and maximum RF data rate of 106 kbps.
- The interface type is TTL with a baud rate of 9600 bps or 115200 bps for serial data output.
- It supports Mifare one cards and tags such as S50, S70, RC632, ntag203, and ntag213.
- The module operates at a supply voltage from 3 V minimum up to 5 V maximum.
- The operating temperature range is from 0°C to 80°C for reliable industrial use.
- The antenna can be used standalone or removed and connected remotely via cable.
- This module is compliant with CE, RoHS, WEEE, and European Radio Equipment directives, providing assured quality and standards adherence.
- Applications include asset and stock tagging, access control, payment systems, resource management, and identification control.
Product Description
RF Solutions RFID1-13RTTL-3V RFID Module is a compact 13.56 MHz frequency RFID reader designed for general purpose RFID applications requiring a panel mount interface. It operates with a TTL interface type and supports a maximum RF data rate of 106 kbps. The module is powered within the range of 3 V to 5 V, providing flexibility for various low-voltage systems.
This reader module includes a break out antenna measuring 43 x 35 x 0.9 mm which can be used standalone or removed and connected remotely via cable to the main module measuring only 25.5 x 16 x 0.9 mm. It supports a wide range of NFC cards and tags including Mifare one S50 and S70, RC632, ntag203, and ntag213 types.
The device features serial data output via TTL level, transmitting at baud rates of 9600 or optionally 115200 bps for efficient communication with host systems. It is suitable for industrial environments with an operational temperature from 0 to 80 degrees Celsius.
This module complies with several important industry standards and directives including the WEEE Directive 2002/96/EC, RoHS Directive 2002/95/EC, European Radio Equipment Directive 2014/53/EU, CE marking, and ISO/IEC 14443 Type A, ensuring compliance and safety.
Operates at 13.56 MHz with 106 kbps data rate supporting Mifare and NFC tags. Compact module dimensions enable panel mount integration or remote antenna use. TTL serial output with selectable baud rates of 9600 or 115200 bps.
Supply voltage range from 3 to 5 volts for flexible power options. Wide operating temperature of 0°C to 80°C suitable for industrial applications. Compliance with CE, RoHS, WEEE, and European radio equipment directives ensures quality.
Ideal for asset tagging, access control, payment systems, and resource management.
This product is an essential component for applications in industrial automation, access control systems, commercial RFID implementations, and asset tracking solutions. RF Solutions provides quality RFID modules tailored for reliable and consistent performance.
Explore similar RFID modules and range of electronics components at EnvMart for comprehensive solutions.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RFID module operates at a frequency of 13.56 MHz.
It supports a maximum RF data rate of 106 kbps.
The module operates within a supply voltage range of 3 V to 5 V.
It supports Mifare one cards and tags, including S50, S70, RC632, ntag203, and ntag213.
The main module measures 25.5 mm in length, 16 mm in width, and 0.9 mm in height.
The operating temperature range is from 0°C to 80°C, making it suitable for industrial use.
It uses a TTL interface for serial data output.
Yes, the antenna can be used standalone or removed and connected remotely via cable.
This model is designed for panel mount integration.
It is suitable for applications such as asset tagging, access control, payment systems, and resource management.
