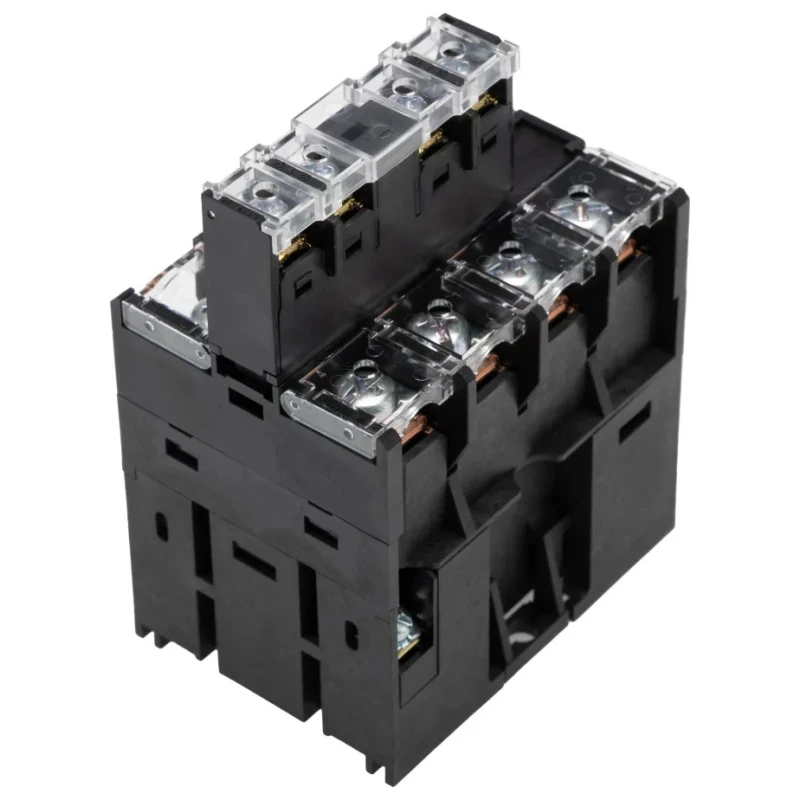

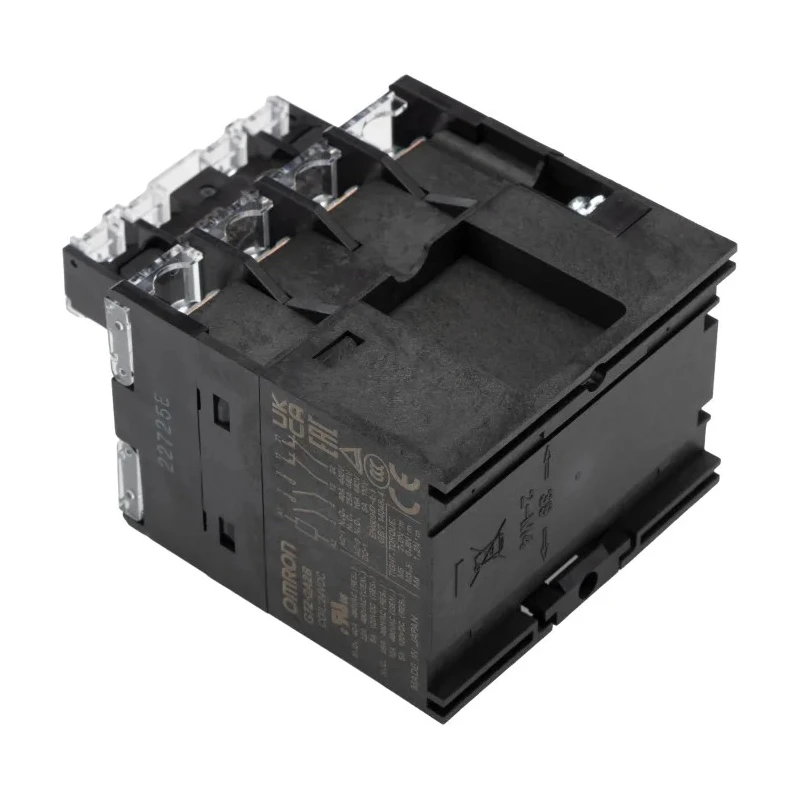

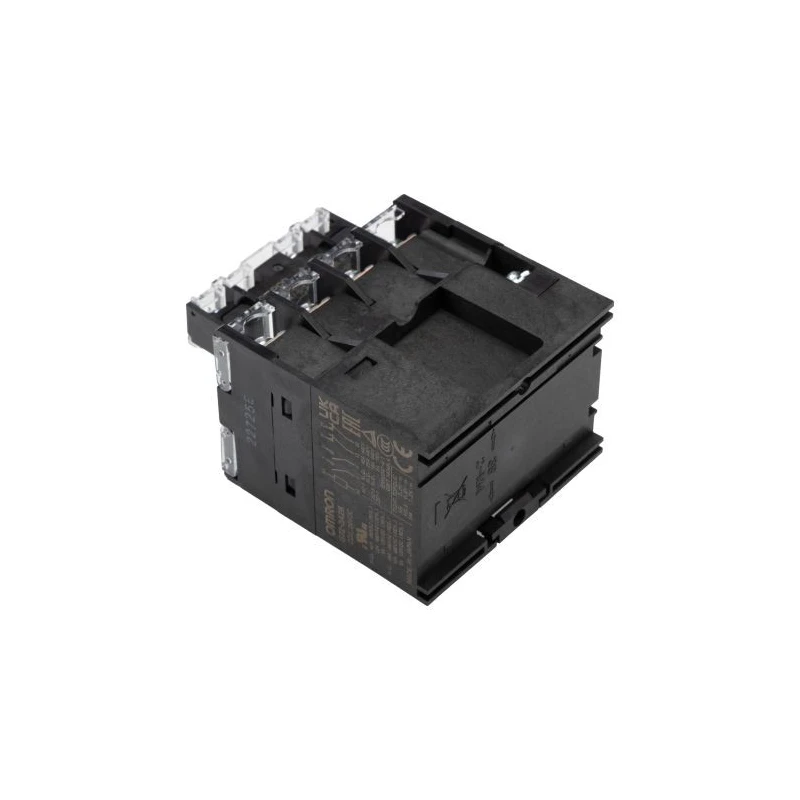

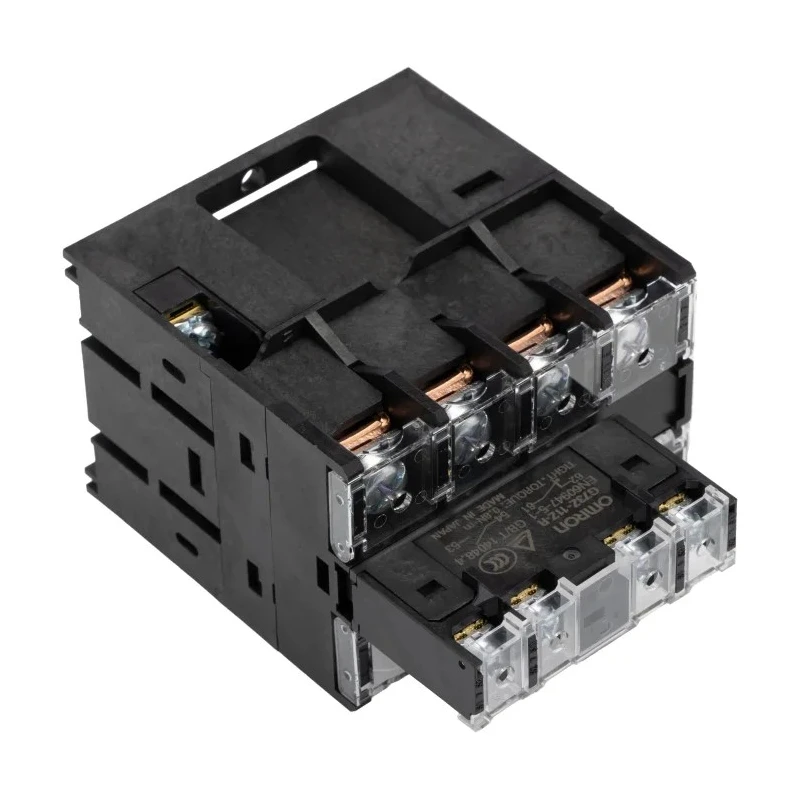

Omron Screw DIN Track Power Relay 24V DC Coil 25A Switching Current DPST-NO DPST-NC G7Z-2A2B-11Z-R 24VDC

Omron G7Z-2A2B-11Z-R 24VDC Power Relay is a compact electromechanical switching device designed for demanding industrial control and automation applications. It features a 24V DC coil with a power consumption of 3.7W and a coil resistance of 156 ohms, enabling predictable and precise coil current control.

The relay offers a DPST (Double Pole Single Throw) contact arrangement with both normally open (NO) and normally closed (NC) contacts, providing flexible switching capabilities for various control circuit requirements. Its silver-alloy contacts ensure reduced wear and low contact degradation, supporting a high switching current capacity of 25A for substantial load handling.

This relay is suited for panel and DIN-rail mounting via screw terminals, making installation and maintenance straightforward and adaptable to multiple enclosure layouts. The device is rated for switching voltages up to 480V AC and 125V DC, allowing it to safely switch lighting, heating, motor control, and battery system loads.

Engineered to operate reliably under typical industrial environmental conditions, it supports a wide ambient temperature range from -25°C to 60°C. The relay's compact size (62mm height, 92.2mm width, 45mm length) ensures optimal utilization of panel space in control cabinets and electrical distribution panels.

Applications of this relay include motor control switching in automation panels, lighting and heating load control, DC load isolation, and battery system management in industrial machinery control cabinets. The device complies with RoHS directives, confirming its adherence to environmental safety requirements by restricting hazardous substances.

Features a DPST contact configuration with normally open and normally closed contacts for versatile switching. Silver-alloy contacts reduce wear and ensure long operational life. Screw and DIN-rail mounting compatible for flexible installation options.

Rated switching current of 25A accommodates high load demands. Operates reliably between -25°C and 60°C ambient temperatures. Compact form factor with dimensions 62mm x 92.2mm x 45mm. Secure screw terminals facilitate easy and durable connections.

Designed for industrial control applications including motor and lighting control. Meets RoHS standards for environmental compliance. Discover more about industrial Power Relays and explore Omron products in the Electronics & Electricals category at EnvMart.
