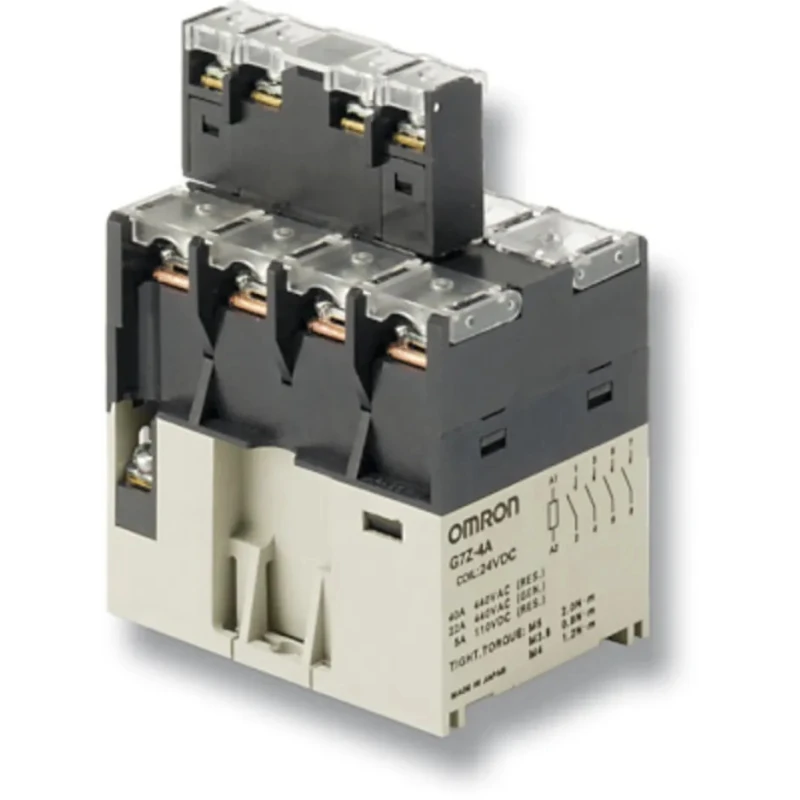

Omron Power Relay G7Z-2A2B-02Z-R DC24, 24V DC Coil, 25A Switching Current, DPST-NO / DPST-NC, Screw DIN Track Mount
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 62mm |
| Length | 45mm |
| Model | G7Z-2A2B-02Z-R DC24 |
| Width | 92.2mm |
| Mount Type | Screw, DIN Track |
| Contact Material | Silver Alloy |
| Series | G7Z |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST-NO, DPST-NC |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Contact Resistance | 400mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 156Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 480V |
| Coil Power | 3.7W |
| Omron DIN Rail Non-Latching Relay, 24V dc Coil, 40A Switching Current, DPDTBrand | Omron |
Key Features
- Coil power consumption is 3.7W ensuring consistent coil heating control.
- Contact material is silver alloy to improve wear resistance and support frequent switching.
- Designed for screw and DIN rail mounting for industrial installation flexibility.
- Wide operating temperature range from -25°C to 60°C suits various industrial environments.
- Switching voltage rated up to 125V DC and 480V AC for versatile power applications.
- Screw terminals provide robust electrical connections resistant to vibration.
- Contact resistance of 400mΩ affects voltage drop and heat generation under load.
- Compliance with RoHS indicates restricted use of hazardous substances.
Product Description
Omron G7Z-2A2B-02Z-R DC24 Power Relay is a compact and reliable electromechanical switching device designed for industrial automation, control panels, and electrical protection tasks. Operating with a 24V DC coil, this power relay handles switching currents up to 25A with dual pole single throw (DPST) normally open (NO) and normally closed (NC) contacts, enabling versatile circuit control and changeover between circuits.
The relay’s coil power is rated at 3.7W with a coil resistance of 156Ω, ensuring steady coil heating and drive characteristics during operation. Silver alloy contact material enhances wear resistance for frequent switching cycles, supporting both AC and DC loads with switching voltage capacities of 480V AC and 125V DC respectively.
Mounting options include screw terminals and DIN rail attachment, offering secure installation within industrial control panels or machinery. The device operates reliably in temperature environments from -25°C to 60°C, making it suitable for diverse indoor industrial applications.
Contact resistance at 400mΩ influences voltage drop and heat dissipation under load, which is important for system power loss calculations and efficiency considerations. The unit conforms to RoHS guidelines, ensuring it is manufactured with restricted hazardous substances.
Physical dimensions measure 92.2mm in width, 62mm in height, and 45mm in length, providing a compact footprint for space-sensitive installations. This relay is an ideal choice for PLC-based switching, motor starter circuits, auxiliary load control, AC distribution switching, and DC load operations within industrial racks and power distribution systems.
Coil power consumption of 3.7W ensures stable control behaviors. Silver alloy contacts for enhanced durability and switching performance. Screw and DIN rail mounting compatibility for flexible installation. Wide operational temperature range from -25°C to 60°C.
Switching voltage ratings up to 480V AC and 125V DC. 400mΩ contact resistance accounting for voltage drop and heat. Compliance with RoHS environmental standards. Compact dimensions of 92.2 x 62 x 45 mm. Manufactured in Japan for quality assurance.
Explore the full range of Power Relays by Omron in EnvMart for secure and efficient industrial automation controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum switching current of 25A.
The coil voltage for this relay is 24V DC.
The physical dimensions are 92.2mm in width, 62mm in height, and 45mm in length.
It supports screw and DIN track mounting for flexible installation options.
The relay features a dual pole single throw (DPST) configuration with normally open (NO) and normally closed (NC) contacts.
It operates reliably within a temperature range of -25°C to 60°C.
The contact material is silver alloy, which improves wear resistance for frequent switching.
The relay is rated for switching voltages up to 480V AC and 125V DC.
The coil power consumption is rated at 3.7W.
The contact resistance is 400mΩ, which affects voltage drop and heat generation under load.
Yes, it is compliant with RoHS, indicating restricted use of hazardous substances.
It uses screw terminals for robust electrical connections.
