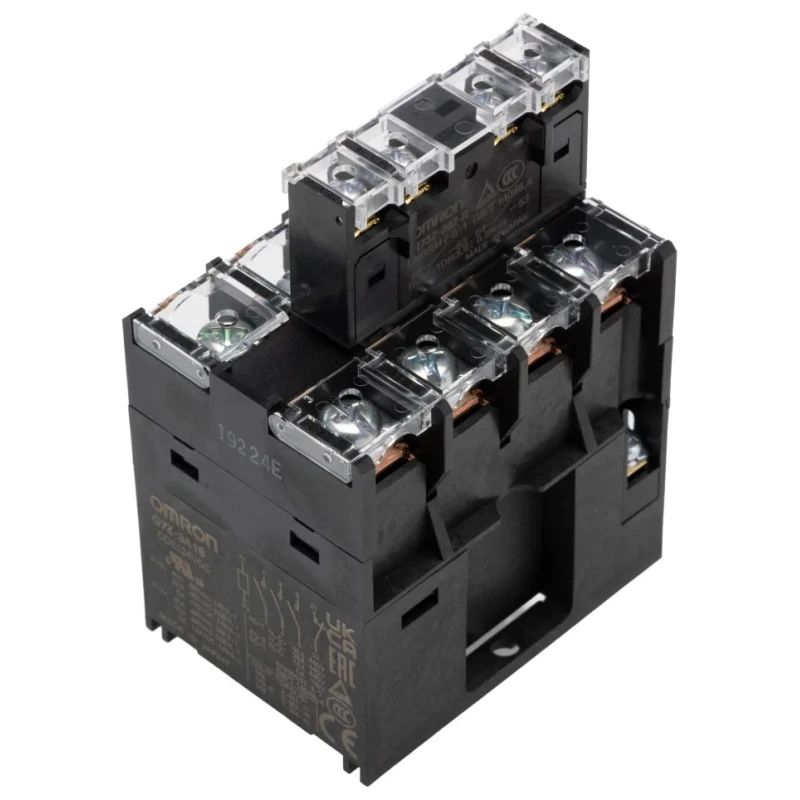

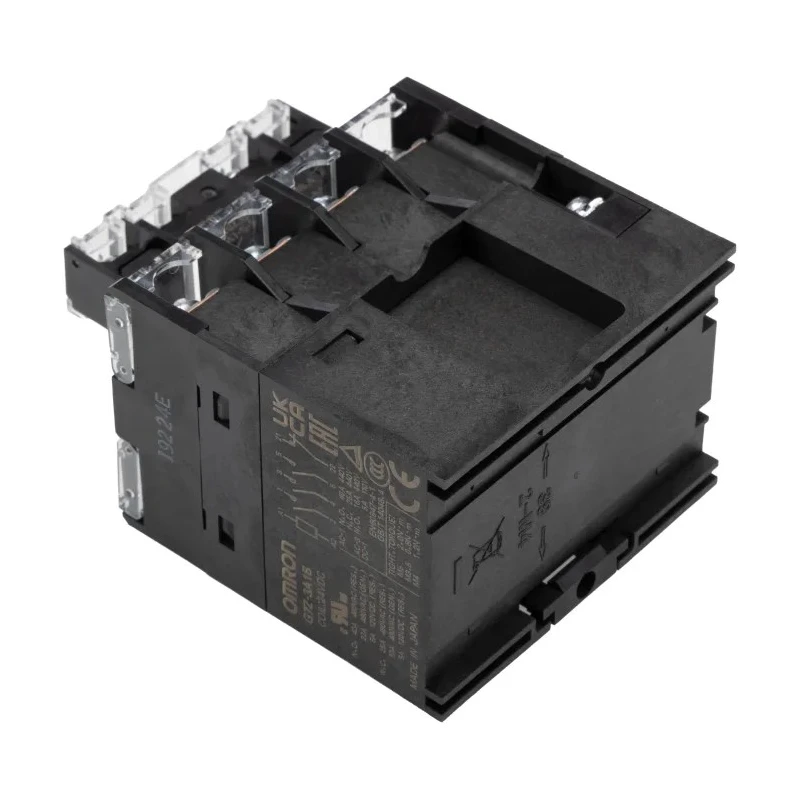

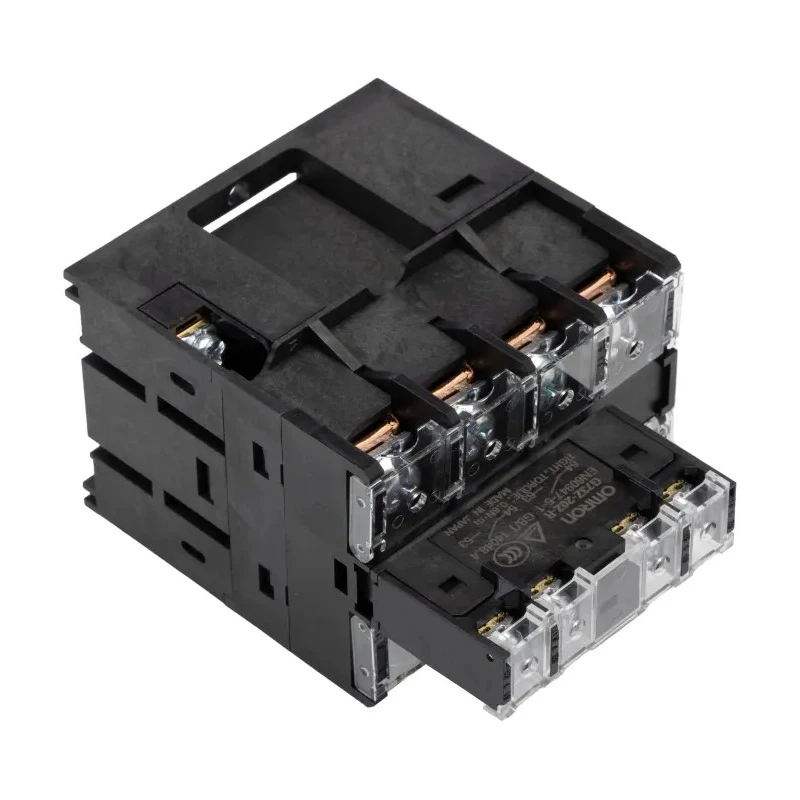

Omron Power Relay G7Z-3A1B-20Z-R 24VDC, 24V DC Coil, 25A Switching Current, Screw DIN Track Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 62mm |
| Length | 45mm |
| Model | G7Z-3A1B-20Z-R 24VDC |
| Width | 92.2mm |
| Mount Type | Screw, DIN Track |
| Contact Material | Silver Alloy |
| Series | G7Z |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PST-NO, SPST-NC |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Contact Resistance | 400mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 156Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 480V |
| Coil Power | 3.7W |
Key Features
- Designed for reliable high-current switching in industrial control systems.
- Supports 3PST-NO and SPST-NC contact configurations for versatile circuit control.
- Screw terminals and DIN rail mounting options ensure secure installation.
- Silver alloy contacts improve conductivity for durable heavy-duty use.
- Operates efficiently with 3.7W coil power reducing driver load.
- Suitable for switching both AC loads up to 480V and DC loads up to 125V.
- Built to handle temperatures from -25°C to 60°C in typical industrial environments.
Product Description
Omron G7Z-3A1B-20Z-R 24VDC power relay is a compact and robust device engineered for heavy-duty switching applications in industrial, automation, and electrical environments. It features a 24V DC coil voltage and a high switching current capacity of 25A, making it ideal for controlling machinery and electrical panels where reliable load switching is required.
The relay offers multiple contact configurations including 3PST-NO and SPST-NC, providing flexibility in circuit design and safety interlock arrangements. It supports screw mounting as well as DIN rail installation, allowing seamless integration into panel or rail-mounted control systems.
Constructed with silver alloy contacts, the relay ensures low contact resistance and high conductivity for efficient power transfer under demanding conditions. The 3.7W coil power and 156Ω coil resistance optimize driver circuitry load, enhancing operational efficiency.
Engineered for industrial use, this relay supports switching AC loads up to 480V and DC loads up to 125V, making it suitable for motor control, power distribution, and signaling circuitry. It functions reliably within a temperature range of -25°C to 60°C, ensuring durability across varying ambient temperatures.
This power relay finds applications in factory automation panels, control cabinets for resistive and inductive loads, and power distribution in industrial machinery. Its robust screw terminals guarantee vibration-resistant wiring connections essential for industrial reliability.
Compact design for space-saving panel installations. Versatile contact configurations to meet different control logic needs. High switching capacity suitable for demanding electrical loads. Durable silver alloy contacts for extended service life.
Optimal coil power and resistance for efficient energy use. Supports both AC and DC load switching requirements. Wide operating temperature range for industrial settings. Explore more Power Relay options and components at EnvMart for your industrial, HVAC, manufacturing, and automation system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 25A, making it suitable for heavy-duty switching applications.
It supports multiple contact configurations, including 3PST-NO and SPST-NC, providing flexibility for various circuit designs.
The relay operates with a coil voltage of 24V DC.
It can switch AC loads up to 480V and DC loads up to 125V, accommodating a range of applications.
The dimensions of the relay are 62mm in height, 45mm in length, and 92.2mm in width.
This unit supports screw mounting as well as DIN rail installation, ensuring secure integration into control systems.
It operates effectively within a temperature range of -25°C to 60°C, suitable for typical industrial environments.
The relay has a coil power of 3.7W and a coil resistance of 156Ω, optimizing driver circuitry load.
The contacts are made of silver alloy, which improves conductivity and ensures efficient power transfer.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
It is suitable for applications in factory automation panels, control cabinets, and power distribution for industrial machinery.
The contact resistance is 400mΩ, which contributes to its efficient operation under load.
