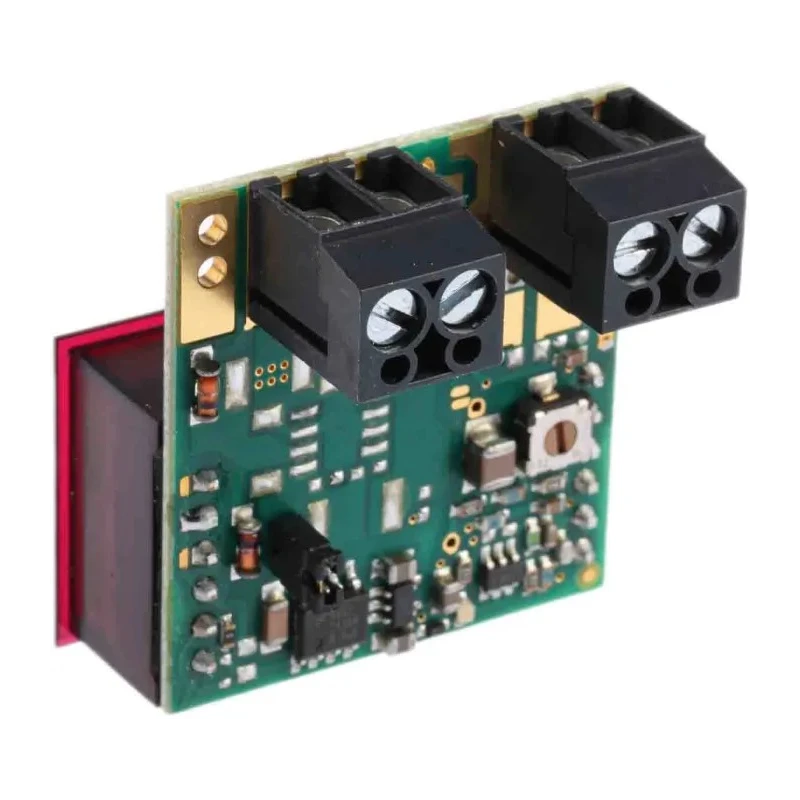

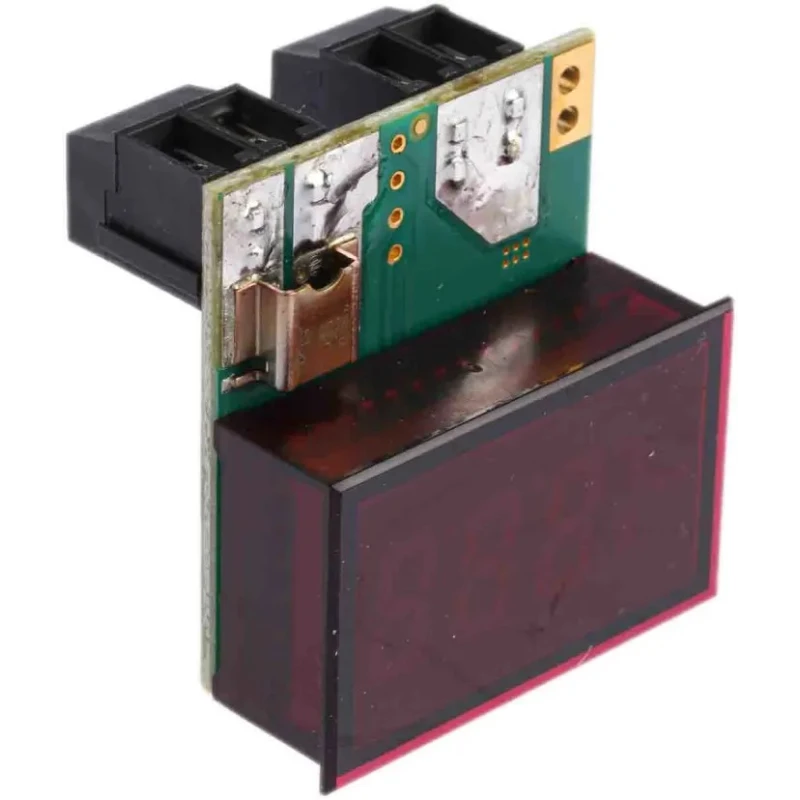

Murata Power Solutions Digital Ammeter DC 19.99 A, ±0.15 % Accuracy, Cutout 21.29 mm x 33.93 mm, Depth DCA-20PC-6-DC1-RL-C

Murata Power Solutions DCA-20PC-6-DC1-RL-C Digital Ammeter is designed for accurate DC current measurements up to 19.99 amperes. It combines high precision with a compact, panel-mount form factor suitable for various industrial and laboratory applications. Featuring six built-in shunts, this ammeter can digitally measure currents ranging from 200 microamperes to 20 amperes without requiring any calibration or user-supplied components.

The device includes terminal blocks for easy external load circuit connections enabling simple 3-wire or 4-wire configurations. Its internal shunt resistance of 0.001 ohms minimizes power losses, further enhancing efficiency. The ammeter is factory calibrated with ±0.1% full scale accuracy and ±0.15% meter accuracy to ensure exact readings.

Designed for robust operation, it supports ambient temperatures from 0°C to 60°C and wide power supply inputs from 5VDC to 40VDC, making it adaptable to powering options in industrial control systems, process automation, and telecom supplies. Isolated-supply models allow high-side shunt measurements between 8VDC and 36VDC, enhancing operational versatility and safety.

Cutout dimensions of 21.29 mm height and 33.93 mm width combined with a depth of 26.4 mm facilitate compact panel integration. Compliance with UL, cUL, and IEC 61010-1 standards assures safe and reliable usage in demanding environments. This digital ammeter is suited for applications in industrial automation, manufacturing testing, process control, and electronic equipment monitoring.

Measures DC currents up to 19.99 amperes with high precision. Built-in shunts for current range of 200uA to 20A enable detailed measurement. Compact panel mount size with 21.29 mm by 33.93 mm cutout and 26.4 mm depth. Factory calibrated to ±0.1% full scale and ±0.15% meter accuracy for reliable data.

Supports simple 3-wire or 4-wire operations with terminal block connections. Wide operating temperature range from 0°C to 60°C. Internal shunt resistance of 0.001 ohms minimizes power loss during measurements. Wide supply voltage input from 5VDC to 40VDC suitable for various power sources.

Isolated-supply options for high-side current sensing between 8VDC and 36VDC. Complies with relevant safety standards including UL and IEC.

This Murata Power Solutions Digital Ammeter is highly reliable for use in industrial automation, laboratory instrumentation, process control systems, telecom power monitoring, and general electrical measurement tasks. It offers precision and durability without compromising on installation convenience.
