onsemi Zener Diode Single 4.7 V 500 mW Through Hole 2-Pin SOD-27 1N5230BTR

Free Delivery in India | Lowest Global Shipping Charges

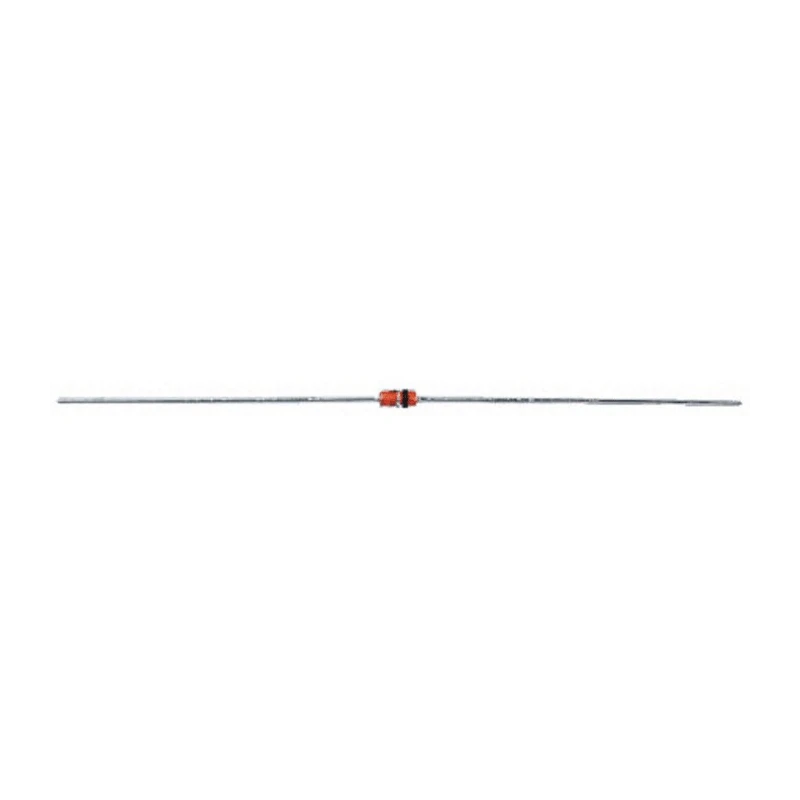

onsemi Zener Diode Single 4.7 V 500 mW Through Hole 2-Pin SOD-27 1N5230BTR

Name: onsemi Zener Diode Single 4.7 V 500 mW Through Hole 2-Pin SOD-27 1N5230BTR
Brand: onsemi
SKU: 292370
Price: 0.04 USD
Availability: InStock



Category Zener Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.91mm
Length	4.56mm
Model	1N5230BTR
Mount Type	Through Hole
Series	1N52
Maximum Operating Temperature	200°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	2μA
Nominal Zener Voltage Vz	4.7V
Zener Type	General Purpose
Maximum Zener Impedance	19Ω

Key Features

The diode provides a nominal Zener voltage of 4.7 volts ensuring precise voltage regulation.
The power dissipation rating of 500 milliwatts allows operation under moderate power conditions.
The 5% Zener voltage tolerance ensures consistent performance within tight voltage limits.
It features a 2-pin through-hole configuration for reliable and easy PCB mounting.
The SOD-27 package form factor enables compact and durable integration in electronic circuits.
Maximum operating temperature of up to 200°C supports usage in elevated temperature environments.
The device maintains low maximum reverse leakage current of 2 microamperes reducing unwanted current losses.
The maximum Zener impedance of 19 ohms ensures stable voltage regulation under typical conditions.

Product Description

onsemi 1N5230BTR Zener Diode is a high-quality single diode component rated for a nominal Zener voltage of 4.7 volts and a maximum power dissipation of 500 milliwatts. Packaged in a through-hole SOD-27 format with 2 pins, this diode is designed specifically for voltage regulation and protection applications in electronic circuits.

This diode is widely applicable in industrial electronics, power supply regulation, and signal conditioning circuitry. Its 5% tolerance on Zener voltage ensures precise control of voltage levels, while the maximum operating temperature of 200°C caters to harsh environments including automotive, manufacturing, and commercial electronics.

Construction includes a general-purpose Zener design optimized for reliable operation with a test current of 20 mA, ensuring consistent performance over wide temperature ranges. The low maximum reverse leakage current and impedance support efficient operation with minimal electrical losses.

The compact SOD-27 package dimensions (length 4.56 mm and height 1.91 mm) contribute to space-saving PCB layouts, ideal for densely packed assemblies. This product is a part of the 1N52 series by onsemi, known for robustness and consistent quality in industrial and electronic component applications.

The diode is mounted through-hole for PCB insertion and soldering. It operates from -65°C to 200°C providing wide temperature range tolerance. The 2-pin design facilitates simple wiring in circuits requiring voltage stabilization.

Typical automotive and industrial use where dependable voltage clamping is necessary. Suitable for manufacturers, electronic designers, and repair technicians requiring reliable zener diode components. Ensure to browse the full category of Zener Diodes at EnvMart for complementary components and technical support materials.
