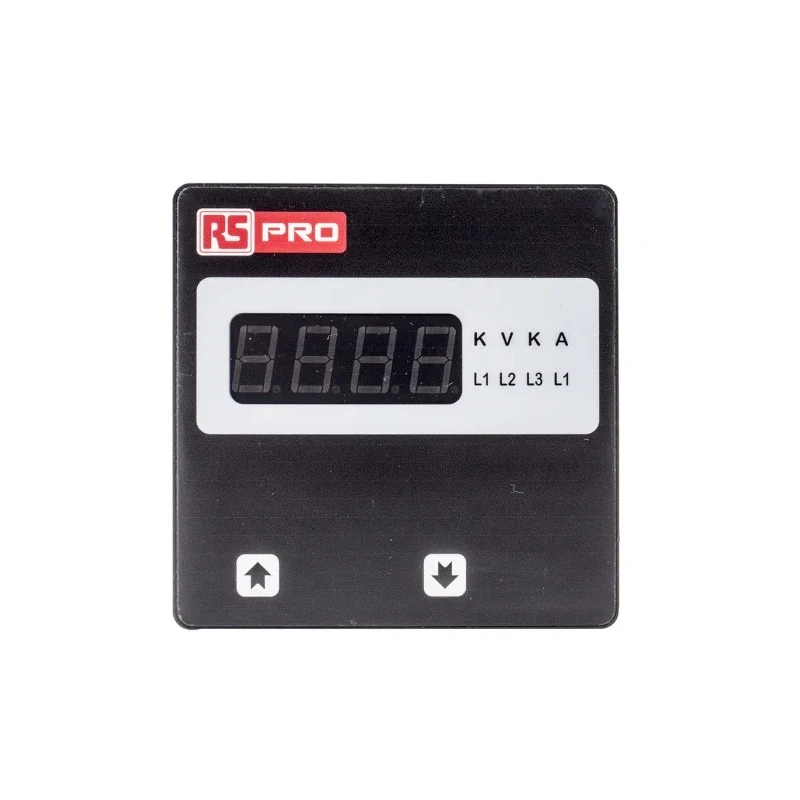

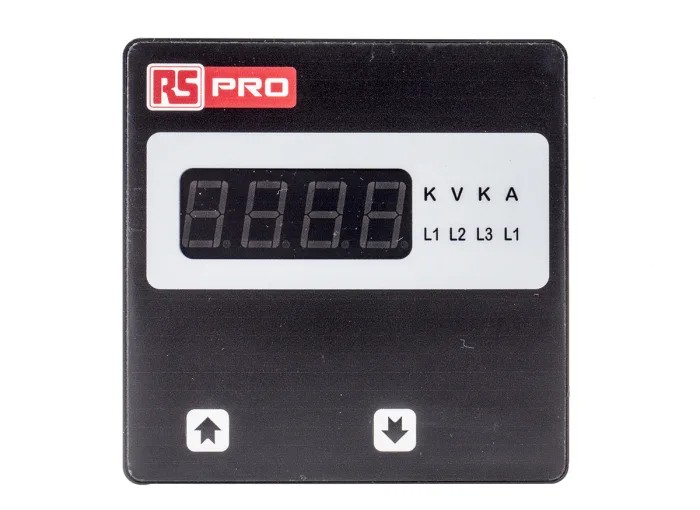

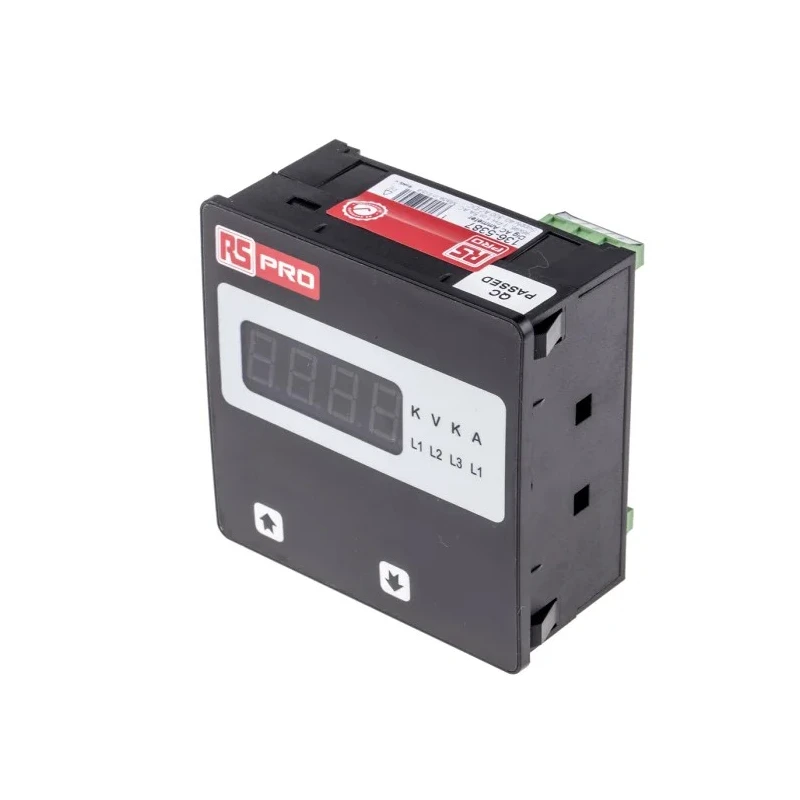

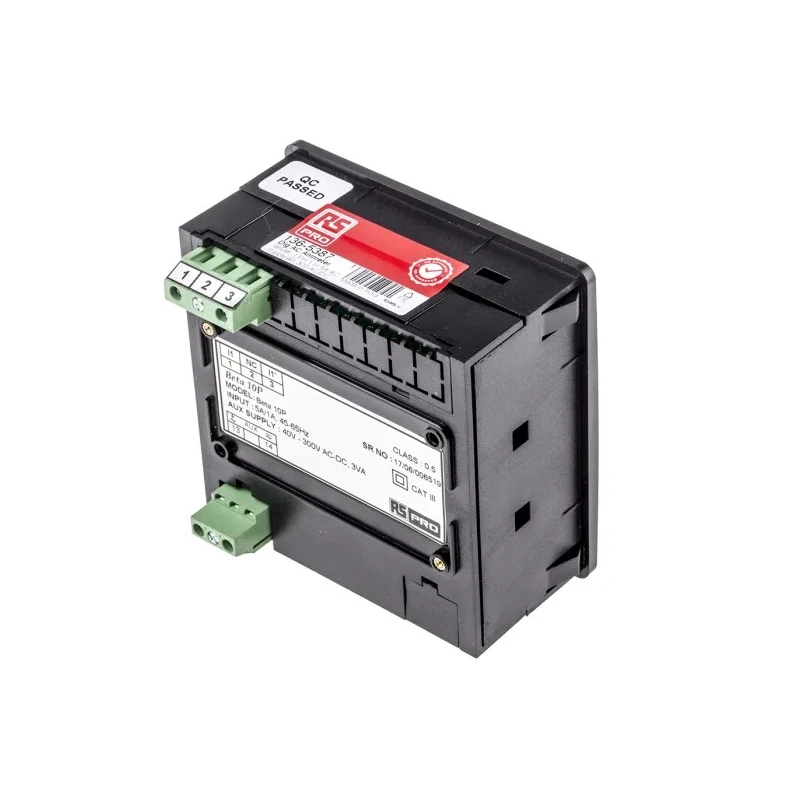

RS PRO Digital Ammeter 5 A AC 92 mm x 92 mm Cutout, 0.5 % rdg + 1 Digits Accuracy 136-5387

RS PRO 136-5387 digital ammeter is engineered for industrial applications requiring precise AC current measurement with a maximum rating of 5 A. Designed with a compact 92 mm x 92 mm cutout dimension and 55 mm depth, it integrates easily into control panels or industrial automation systems. The meter’s 0.5 % reading accuracy plus 1 digit ensures reliable and repeatable measurements in demanding environments.

This device incorporates a true RMS measurement technique, enabling accurate readings even with non-sinusoidal waves. Featuring a 4-digit ultra-bright LED display capable of showing values up to 9999, it provides clear visibility for operators.

Installation is fast and convenient via clip-in mounting designed specifically for this model. Programmable CT/PT ratios allow adaptation on-site, with selectable CT secondary current ratings of 1 A or 5 A and PT secondary voltage ranges between 60 and 600 V LC AC. The auxiliary power supply accepts a wide input range from 40 V to 300 V AC/DC, facilitating diverse power configurations.

The ammeter stores minimum and maximum values, useful for monitoring fluctuating currents over time. It is suitable for industrial automation, laboratory environments, process control, and electrical testing setups.

The product conforms to safety and performance standards IEC 60529 for ingress protection, IEC 61010-1-2001 for safety requirements for electrical equipment for measurement, control and laboratory use, and IEC 61326-1:2005 for electrical equipment for measurement and control - EMC requirements.

Features a 4-digit ultra-bright LED display for easy reading. Provides true RMS measurement for precise AC current signaling. Includes on-site programmable CT/PT ratios enhancing adaptability. User selectable CT secondary options of 1A or 5A for flexible use.

Supports PT secondary input voltage from 60 to 600 V LC AC. Wide auxiliary power supply between 40 V and 300 V AC/DC. Includes storage of minimum and maximum measurement values. Compact size with 92mm by 92mm front panel and 55mm depth for panel embedding.

Operates reliably in temperatures from 0°C up to 50°C. Complies with IEC 60529, IEC 61010-1-2001, and IEC 61326-1:2005 standards.
