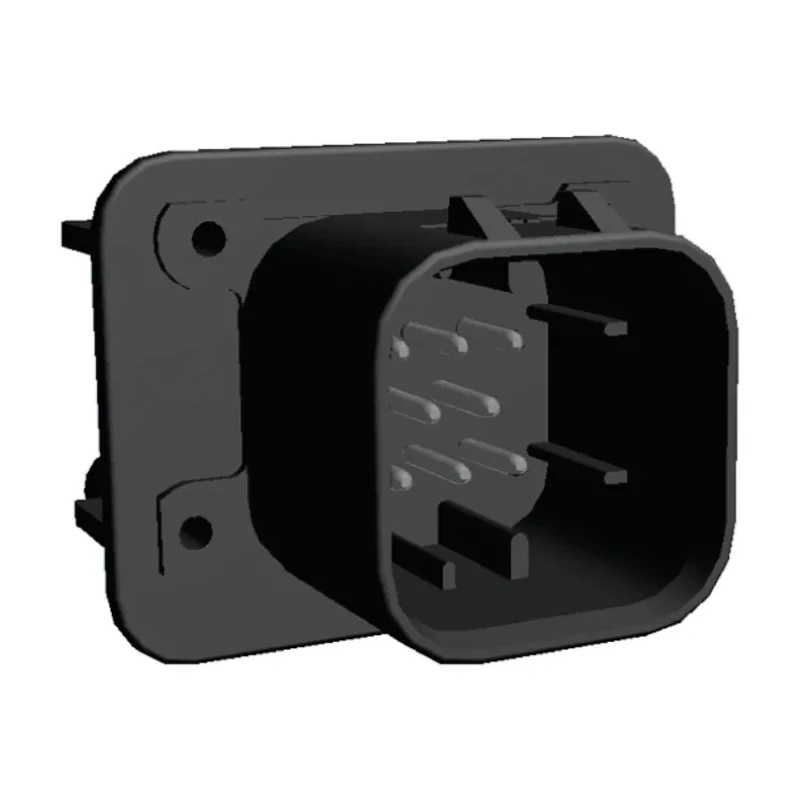

TE Connectivity Ampseal Automotive Connector Male Black Panel Mount 8 Way Solder Termination 776275-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 32.1mm |
| Model | 776275-1 |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 40.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 8 |
Key Features
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- Features brass contacts with tin plating for corrosion resistance.
- Supports panel mounting with 3 rows and 8 contacts.
- Boasts a high ingress protection rating of IP6K9K for dust and water resistance.
- Operates reliably from -40°C to 105°C temperature range.
- Black colour housing for easy identification and aesthetics.
- Complies with EU ELV and EU RoHS standards ensuring environmental safety.
- Compact dimensions of 40.8mm width, 32.1mm height, and 34.3mm depth.
Product Description
TE Connectivity 776275-1 Ampseal Automotive Connector Male is a high-quality, panel-mount automotive connector designed for robust electrical connections in automotive applications. Featuring 8 contacts arranged in 3 rows with solder termination, this connector ensures secure and reliable interface with printed circuit boards (PCB).
The connector housing is made of fibreglass reinforced polybutylene terephthalate, providing excellent mechanical strength and chemical resistance suitable for harsh automotive environments. Brass contact material and tin plating enhance conductivity and corrosion protection.
This product offers protection rated at IP6K9K, guarding against dust ingress and high-pressure water jets, ideal for outdoor and engine compartment use. It operates efficiently within a temperature range of -40°C to 105°C, suitable for varying climatic conditions encountered in automotive systems.
The compact dimensions (Width: 40.8mm, Height: 32.1mm, Depth: 34.3mm) facilitate space-saving panel installations. Its black colour housing aids in easy visual identification during assembly and maintenance.
Fibreglass reinforced polybutylene terephthalate housing ensures durability and longevity. Brass contacts with tin plating offer excellent electrical performance and corrosion resistance. Panel mount style with 3 rows and 8 contacts supports efficient PCB interfacing.
IP6K9K rating provides high ingress protection against dust and water. Wide operating temperature range from -40°C to 105°C for automotive applications. Compliant with EU ELV and EU RoHS standards promoting environmental safety.
Black colour housing for aesthetic and functional identification. Compact dimensions optimize device integration and vehicle space. No cord included; designed specifically as connector component for integration. Part of the Ampseal series specialized for automotive connector solutions.
This automotive connector is ideal for industrial, automotive manufacturing, electrical assembly, and repair applications requiring dependable connector solutions. It ensures established industry standards compliance and is suited for maintaining vehicle electrical system integrity.
Explore TE Connectivity Automotive Connectors and related components on EnvMart for enhanced connectivity solutions in the automotive sector.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an IP rating of IP6K9K, providing high ingress protection against dust and water, making it suitable for outdoor and engine compartment use.
This model has compact dimensions of 40.8mm in width, 32.1mm in height, and 34.3mm in depth, facilitating space-saving panel installations.
It operates efficiently within a temperature range of -40°C to 105°C, suitable for various climatic conditions encountered in automotive systems.
This connector features solder termination, ensuring a secure and reliable interface with printed circuit boards (PCB).
The housing is made of fibreglass reinforced polybutylene terephthalate, while the contacts are brass with tin plating for enhanced conductivity and corrosion resistance.
It has a total of 8 contacts arranged in 3 rows, supporting efficient PCB interfacing.
The connector complies with EU ELV and EU RoHS standards, promoting environmental safety in its use.
This connector is male, designed for panel mounting applications.
This model is ideal for automotive manufacturing, electrical assembly, and repair applications requiring dependable connector solutions.
No, this connector is designed specifically as a component for integration and does not include any cords or additional accessories.
The housing of this connector is black, which aids in easy visual identification during assembly and maintenance.
This connector is part of the Ampseal series, which specializes in automotive connector solutions.
