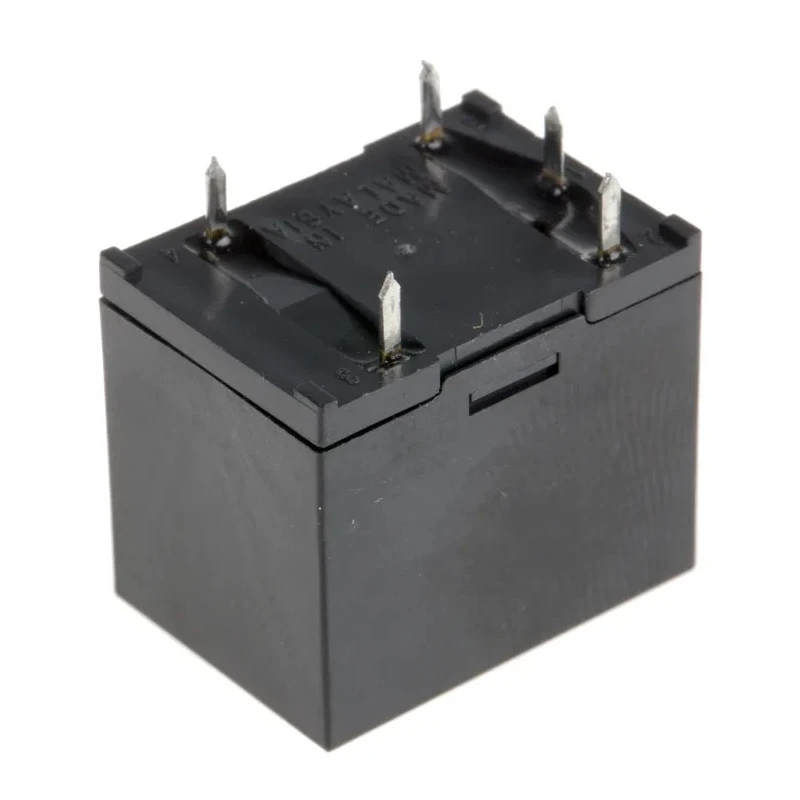

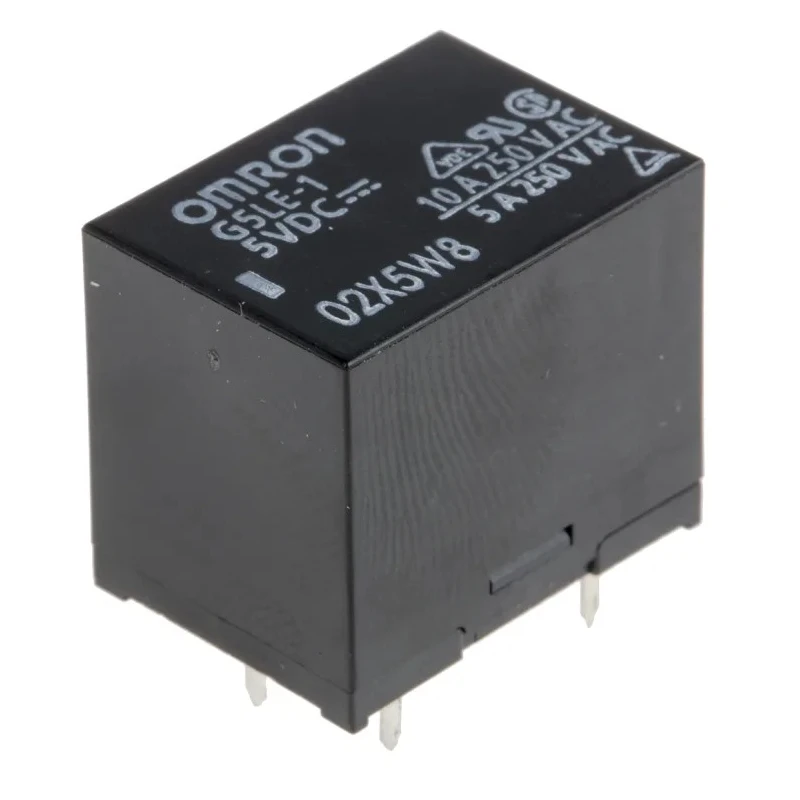

Omron PCB Power Relay 5V DC Coil 8A Switching Current SPDT G5LE-1 DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-1 DC5 |
| Width | 15.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 63Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- Compact subminiature "sugar cube" format suitable for PCB mounting.
- Coil resistance is 63 ohms with coil power consumption of 400mW.
- Reliable switching voltage rating of 125V AC/DC for versatility.
- Operating temperature range from -40°C to 85°C for broad application use.
- Constructed with silver alloy contacts ensuring low contact resistance of 100mΩ.
- Mechanical dimensions measure 22.5mm length, 15.6mm width, and 19mm height.
- Certified with UL and CSA approvals providing assured quality and safety.
- Ideal for control circuit applications with high current switching capability and impulse resistance up to 4500V.
Product Description
Omron G5LE-1 DC5 PCB Power Relay features a 5V DC coil with an 8A switching current rating, designed for reliable and compact control circuit applications. This relay utilizes a single pole double throw (SPDT) contact arrangement, making it versatile for switching operations in various electronic and electrical systems.
The relay’s subminiature "sugar cube" form factor allows easy PCB mounting with standard PCB pins. Its coil resistance is 63 ohms, and the coil power consumption is 400mW, ensuring energy-efficient operation. The device supports switching voltages of 125V both in AC and DC, with a switching power of 400mW, providing flexibility for multiple industrial and commercial applications.
With a wide operating temperature range from -40°C to 85°C, it performs reliably under harsh environmental conditions. The relay is constructed with silver alloy contacts, which offer low contact resistance of 100mΩ for minimized signal loss and improved conductivity.
The physical dimensions are compact at 22.5mm length, 15.6mm width, and 19mm height, supporting integration into dense electronic assemblies. The product is UL and CSA approved, indicating compliance with recognized quality and safety standards, and it can withstand voltage impulses up to 4500V, ensuring durability against electrical surges.
Commonly used in industrial automation, control systems, consumer electronics, HVAC control, and signal conditioning circuits, this Omron PCB Power Relay is a robust solution for high-current switching on printed circuit boards.
Compact and efficient subminiature 'sugar cube' construction for PCB mounting. High reliability with silver alloy contacts and low contact resistance. Wide operating temperature range suitable for varied industrial environments.
UL and CSA certifications ensure quality and safety compliance. Supports 125V AC and DC switching voltages at 8A current rating. Energy efficient coil with 63Ω resistance and 400mW coil power. Dimensionally optimized for space-constrained applications.
Impulse withstanding voltage up to 4500V for enhanced durability. Explore our comprehensive range of relays and power switching devices at EnvMart for reliable industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating is 8A, making it suitable for high current applications.
The coil voltage for this model is 5V DC.
It measures 22.5mm in length, 15.6mm in width, and 19mm in height.
This relay features a single pole double throw (SPDT) contact configuration.
The maximum operating temperature is 85°C, allowing it to function in a wide range of environments.
This relay is designed for PCB mounting with standard PCB pins.
The coil resistance is 63 ohms, contributing to its energy-efficient operation.
It is certified with UL and CSA approvals, ensuring compliance with recognized safety and quality standards.
The contact material is silver alloy, which provides low contact resistance of 100mΩ.
This relay can withstand impulse voltages up to 4500V, enhancing its durability against electrical surges.
The coil power consumption is 400mW, ensuring efficient energy use.
It is commonly used in industrial automation, control systems, consumer electronics, and HVAC control.
