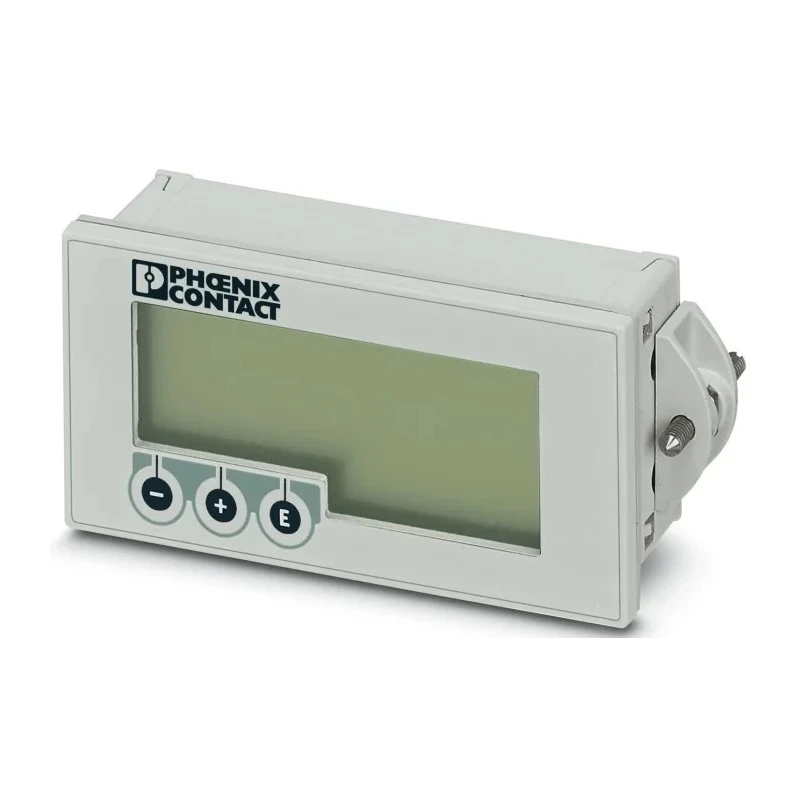

Phoenix Contact Digital Panel Multifunction Meter FA MCR-EX-DS-I-I-OLP for Current Measurement, 48 mm x 96 mm 2908800
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | Digital |
| Brand | Phoenix Contact |
| Model | 2908800 |
| Depth | 41.5mm |
| Series | FA MCR-EX-DS-I-I-OLP |
| Maximum Operating Temperature | 60°C |
| Meter Type | Digital |
| Number Of Digits | 5 |
| Minimum Operating Temperature | -40°C |
| Digit height | 17mm |
| Standards/Approvals | CSA 70106894, cULus Recognized, UL FILE E 330267 |
| Properties Measured | Current |
| Cutout Height | 48mm |
| Cutout Width | 96mm |
| Use as the primary or secondary HART® master ≤1V voltage drop (HART® | ≤1.9 V) |
Key Features
- The device supports both 4 to 20 mA current loop and HART® communication protocols.
- It operates without external power, drawing energy solely from the current loop.
- Equipped for use as a primary or secondary HART® master with low voltage drop.
- The meter features parameterization via a front keypad for user-friendly configuration.
- Robust operation temperature range from −40°C to 60°C ensures versatility in industrial environments.
- Complies with CSA 70106894, cULus Recognized, and UL FILE E 330267 standards for safety and quality.
- Backlit display and bar graph provide clear indication of measured current values or HART® variables.
- The meter's compact depth of 41.5 mm facilitates easy panel mounting in control systems.
Product Description
Phoenix Contact 2908800 FA MCR-EX-DS-I-I-OLP Digital Panel Multifunction Meter is designed for precise current measurement and process monitoring in industrial automation systems. The device features a 5-digit digital display with bar graph and backlighting, optimizing readability and status indication.
This meter operates from a 4 mA to 20 mA current loop without the need for an external power supply, enhancing installation simplicity and reducing wiring complexity. It supports HART® protocol communication compliant with versions 5.0 and higher, making it suitable for integration into modern process control networks as either a primary or secondary HART® master with a voltage drop of ≤1 V (HART®: ≤1.9 V).
The meter offers rugged performance with operating temperature range from -40°C to 60°C and meets industry safety certifications including CSA 70106894, cULus Recognized, and UL FILE E 330267, ensuring reliability and compliance in demanding industrial environments. Parameterization is easily done via a front keypad allowing flexible configuration to meet application needs.
Its compact form factor with cutout dimensions of 48 mm x 96 mm and depth of 41.5 mm facilitates panel integration without occupying excessive space. The digit height of 17 mm ensures data is clearly visible even in difficult lighting.
Applications include industrial process control, automation systems, and monitoring of current in electrical circuits where precise measurement and digital display are necessary. This product is made in Germany, reflecting high manufacturing quality standards.
The device measures current and HART® process variables. Energy supplied via 4 mA to 20 mA current loop without external power. Supports HART® protocol version ≥5.0 for enhanced communications. Front keypad enables straightforward device parameterization.
Durable operation from -40°C to 60°C for harsh environments. Complies with relevant safety and quality approvals. Compact size with 48 mm x 96 mm panel cutout standard. Provides 5-digit display with backlighting and status bar graph.
Low voltage drop suitable for primary or secondary HART® master use. Discover the extensive range of industrial automation measurement instruments available at EnvMart to complement your equipment and ensure robust process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -40°C to 60°C, making it suitable for various industrial environments.
It measures current and HART® process variables, providing precise monitoring in industrial applications.
The device operates without external power, drawing energy solely from the 4 mA to 20 mA current loop.
The cutout dimensions for this unit are 48 mm in height and 96 mm in width, with a depth of 41.5 mm.
It features a 5-digit digital display with backlighting and a status bar graph for clear visibility of measured values.
Yes, it supports HART® protocol communication compliant with versions 5.0 and higher, functioning as a primary or secondary HART® master.
It complies with CSA 70106894, is cULus Recognized, and has UL FILE E 330267 certifications for safety and quality.
Parameterization is easily accomplished via a front keypad, allowing for user-friendly configuration to meet application needs.
The digit height of the display is 17 mm, ensuring that data is clearly visible even in difficult lighting conditions.
The meter has a low voltage drop of ≤1 V when used as a primary or secondary HART® master, with a maximum of ≤1.9 V for HART® communication.
It is suitable for industrial process control, automation systems, and monitoring of current in electrical circuits where precise measurement is necessary.
This model is manufactured in Germany, reflecting high manufacturing quality standards.
