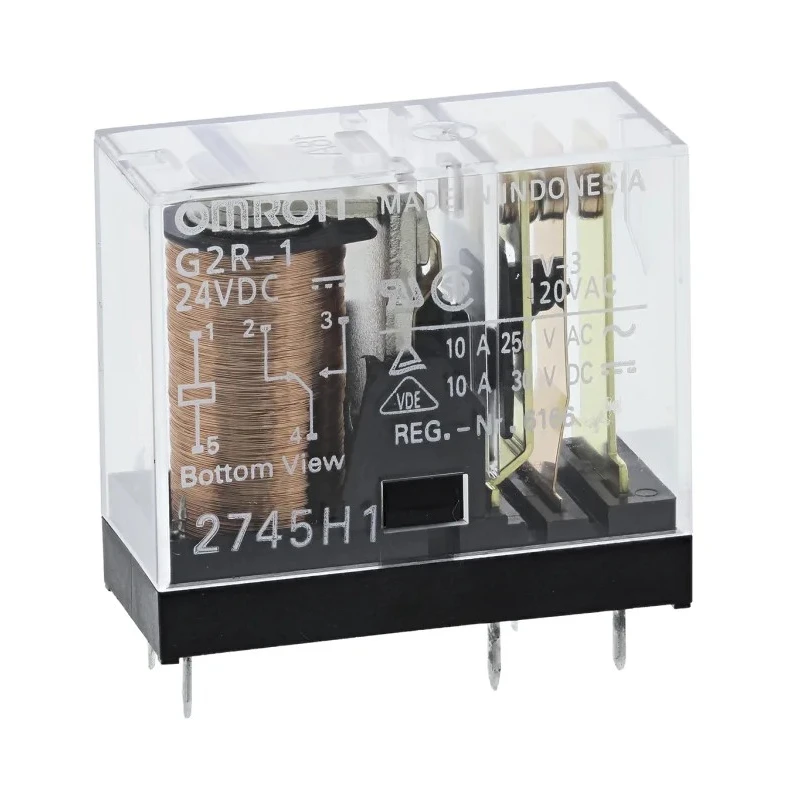

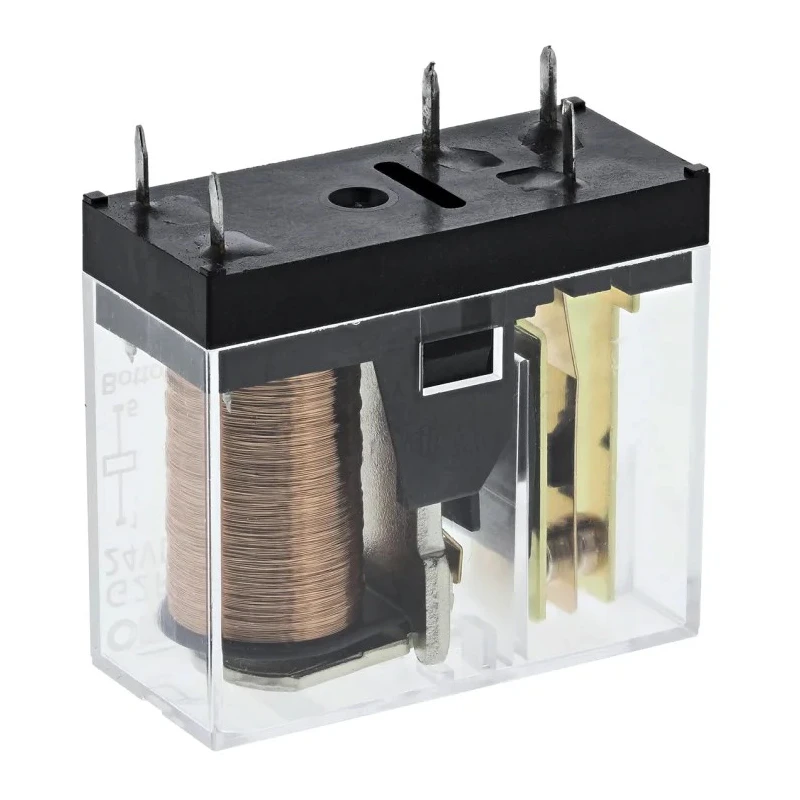

Omron PCB Power Relay 24V DC Coil Voltage 10A Switching Current SPDT G2R-1 24VDC

Omron G2R-1 24VDC PCB Power Relay is a high-quality power relay engineered for precise switching in automation and control systems. Featuring a coil voltage of 24V DC and a maximum switching current of 10 amperes, it is compatible with a broad range of electrical and industrial applications.

This relay employs SPDT (Single Pole Double Throw) contact configuration, providing flexible control with both normally open and normally closed contacts. The silver alloy contact material enhances electrical conductivity and durability, ensuring consistent performance over long periods.

The relay's PCB mount design and plug-in terminal type facilitate ease of installation and maintenance, allowing quick integration into circuit boards without soldering. Its compact size (29mm length, 13mm width, and 25.5mm height) saves valuable PCB space and suits compact electronic designs.

Rated for operation in temperatures ranging from -40°C to +70°C, this relay is capable of withstanding harsh environmental conditions, making it ideal for industrial equipment, automation systems, and home automation controls that require reliable power switching.

It supports switching power up to 0.9W and switching voltages of 380V AC and 125V DC, widening the scope of electrical applications it can serve.

Safety standards including UL and CSA approvals validate the product's robustness and compliance with international safety norms. The coil resistance is 1.1 kΩ, with coil power at 530mW, ensuring efficient coil operation.

This relay is well-suited for PCB assembly line integration, instrumental control, and automated systems management requiring dependable and durable switching components. Operates with a 24V DC coil voltage for reliable power activation.

Features SPDT contact configuration offering both normally open and normally closed switching. Supports a maximum switching current of 10 amperes for versatile electrical load management. Constructed with silver alloy contacts for superior conductivity and durability.

PCB mount type with plug-in terminals enables quick and secure installation. Operates safely across a wide temperature range from -40°C to +70°C for harsh environments. Compact dimensions of 29mm length, 13mm width, and 25.5mm height optimize PCB space.

Complies with UL and CSA safety standards ensuring high-quality and safety. Designed for industrial automation, home automation, and instrumentation control applications. Offers a long operational life with a typical expectancy of 100,000 cycles.
