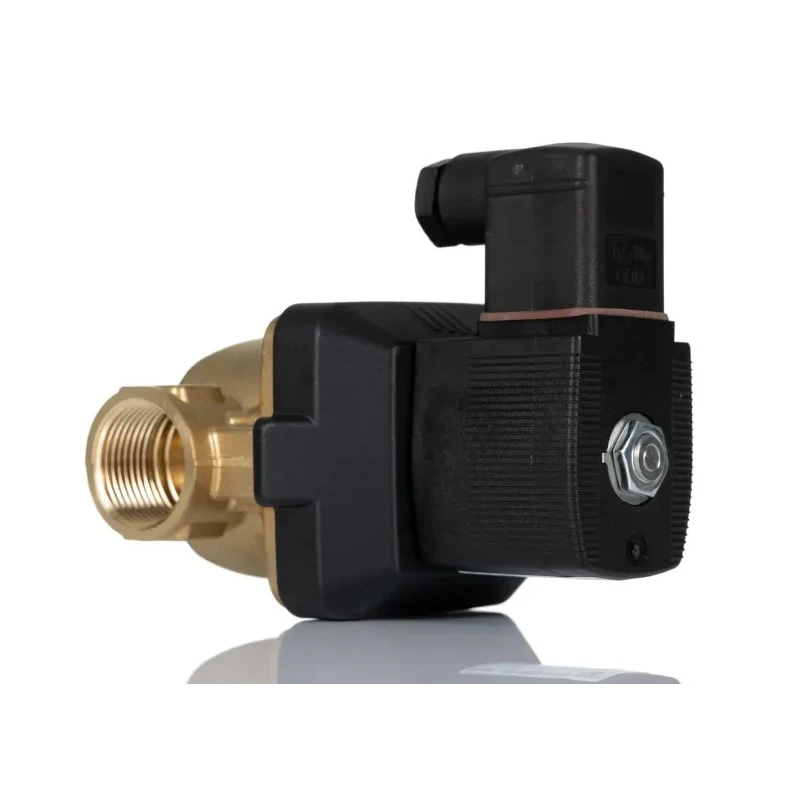

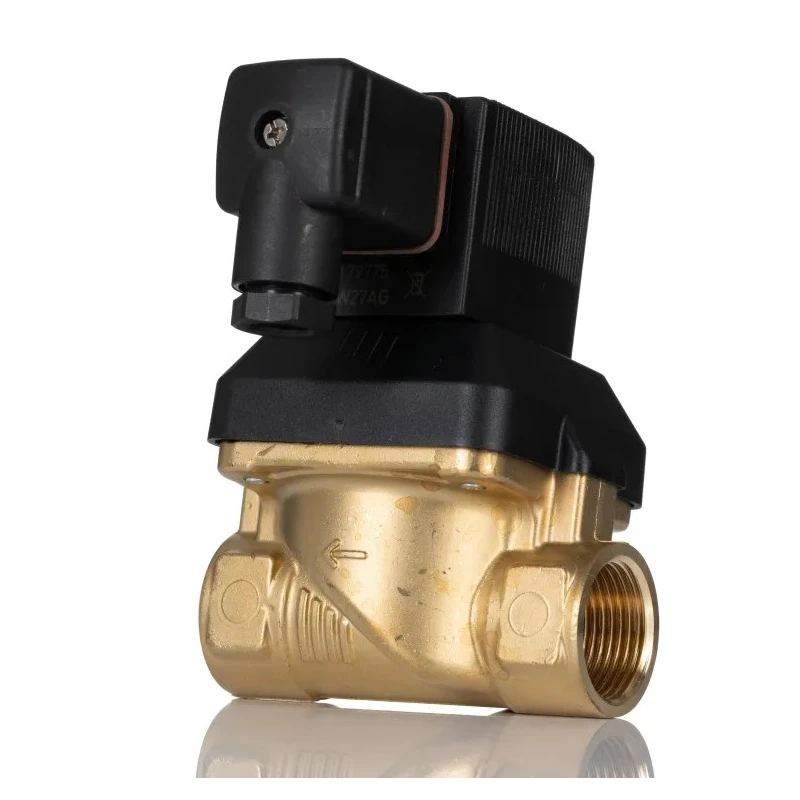

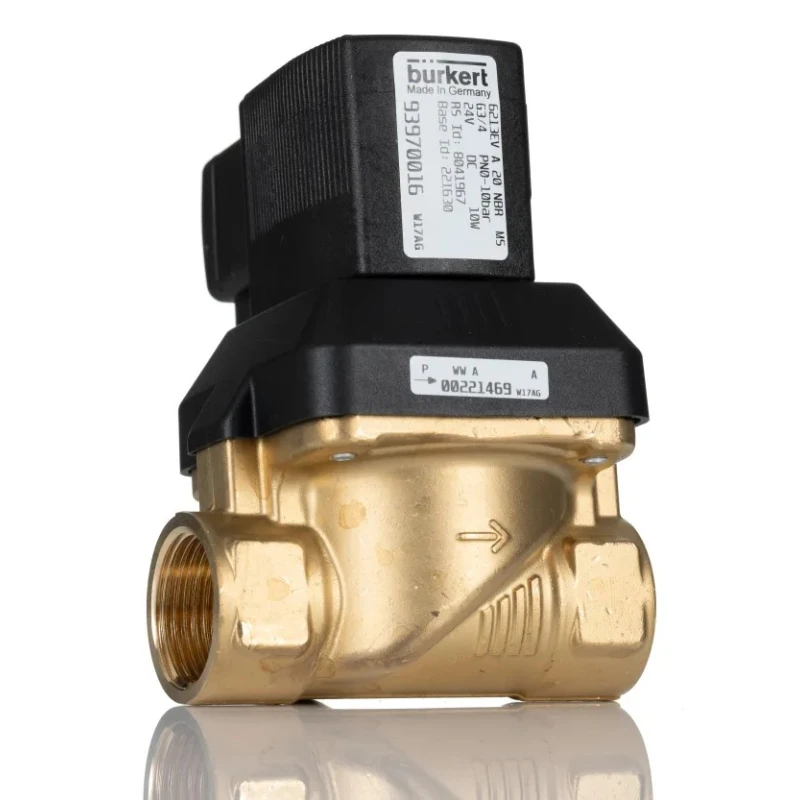

Burkert Solenoid Valve 2 Port NC Brass Body 24V DC 10 bar Operating Pressure 20mm Orifice 221630

Burkert 221630 solenoid valve is a precision-engineered 2 port, normally closed valve with a brass body designed for reliable operation in industrial fluid control systems. Operating at 24V DC, it supports maximum pressures up to 10 bar and accommodates fluid temperatures ranging from -10°C to 80°C, making it suitable for multiple industrial and commercial applications.

The valve features a 20mm orifice diameter that allows a flow factor Kv of 8.3 m³/h, enabling efficient liquid and gas flow management. Its servo assist system works with a soft mechanical coupling between the main piston and pilot armature to ensure smooth, quiet operation without water hammer effects.

Constructed with a flow-optimized housing and diaphragm geometry, this valve is compact for installation in confined spaces and is IP65 rated for robust protection against dust and water ingress, ensuring durability under harsh conditions. Additionally, it holds an explosion protection Ex-i intrinsic safety certification, making it suitable for use in hazardous environments.

Due to the internal valve complexity, it is specifically recommended for use with clean, neutral media. Electrical connectors for this valve are available separately. This valve is applicable across various industrial sectors including water treatment, HVAC systems, compressed air, refrigeration, and vacuum systems, supporting both liquids and inert gases.

Maximum operating pressure of 10 bar ensures high performance. Operating temperature range from -10°C to 80°C suitable for diverse environments. Flow factor Kv of 8.3 m³/h enables efficient fluid flow. Servo assist mechanism for smooth valve actuation.

IP65 rated sealed coil protects against environmental factors. Compact size designed for space-limited installations. Explosion protection Ex-i (intrinsically safe) certified for hazardous area use. Soft mechanical coupling reduces noise and mechanical wear.

Suitable for water, inert liquids and gases. Set contains 1 Pc Burkert Solenoid Valve model 221630. Explore more industrial valves and fittings at EnvMart for your fluid control needs.
