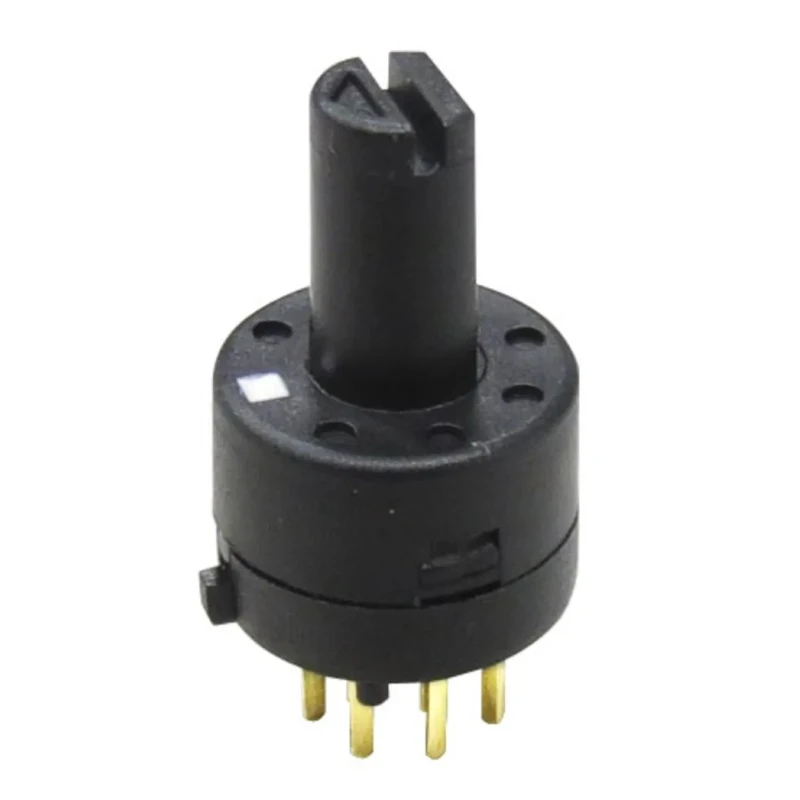

RS PRO Rotary Switch, 500mA, Nylon Housing, PCB Mount, Solder Terminals, 48V DC, 90° Angle of Throw 175-8149

RS PRO 175-8149 Rotary Switch is a miniature and subminiature rotary switch designed to provide reliable switching for electrical and automation systems. It features a black actuator color and is intended for PCB mount with solder type terminals, facilitating easy integration into circuit boards.

This rotary switch supports a switch contact current of 500mA and a maximum DC voltage rating of 48V DC. It is constructed with durable nylon housing, offering protection and thermal resistance over an operating temperature range from -20°C to 70°C.

With dimensions of 15.1mm height and depth, and 9.2mm width and diameter, this compact switch is suitable for space-constrained applications. The rotary switch has an angle of throw of 90°, allowing precise switching positions.

The switch mechanical life is rated for 10 cycles, emphasizing it is designed for low-cycle applications or testing purposes. This product complies with RoHS environmental standards ensuring reduced hazardous substances usage.

Applications include use in electrical switch assemblies, automation controls, and PCB mounted switching devices in industrial and electronic manufacturing deployments. The non-illuminated switch variant suits functional circuit operations.

The rotary switch supports solder terminal type for reliable circuit connections. Its housing material is high-quality nylon, ensuring long-lasting performance. The compact form factor saves valuable PCB space. RoHS compliance ensures eco-friendly use of materials.

Manufactured under precise quality controls in Taiwan, Province Of China.

This RS PRO Rotary Switch is ideal for industries such as electrical manufacturing, automation system design, and electronic device assembly. Explore more high-quality switches and related components in the Switches & Sockets category on EnvMart to meet your project requirements.
