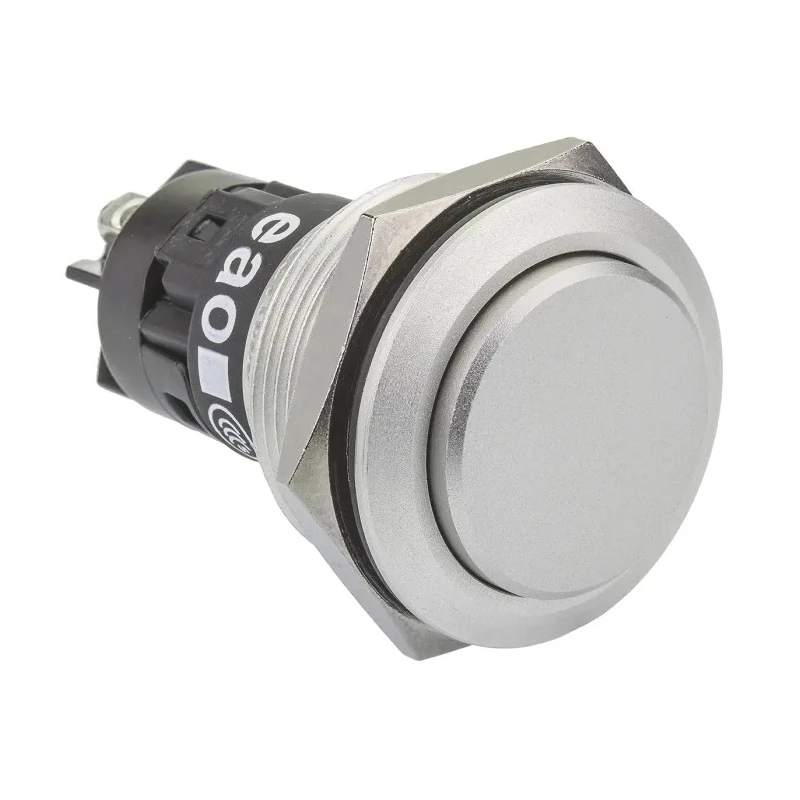

EAO 82 Series Push Button Switch Momentary Panel Mount 22.3 mm Cutout SPDT IP65/IP67 240 V 250 V AC 82-6562.1000



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	China
Brand	EAO
Height	28.5mm
Length	36.3mm
IP Rating	IP65, IP67
Width	25.2mm
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	NC, NO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Terminal type	Screw
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	240V
Actuator Style	Raised Button
Switch Contact Current	3A
Contact AC Voltage	250V ac

Key Features

The switch features a natural colored, raised button actuator for excellent tactile feedback.
Designed for panel mounting with a 22.3 mm cutout size.
Single pole double throw (SPDT) contact configuration with NC and NO switch contacts.
IP65 and IP67 protection ratings ensure dust tightness and water resistance up to immersion level.
Operates reliably between -30°C to 70°C temperature range.
Termination via screw type terminals for secure electrical connections.
Compact dimensions of approximately 28.5 mm height, 36.3 mm length, and 25.2 mm width.
Rated for up to 3 A switching current at 240 V DC and 250 V AC contact voltages.

Product Description

EAO 82-6562.1000 is a robust and reliable push button switch from the EAO 82 Series designed for momentary operation in panel mounting applications. Featuring a natural colored raised button actuator, this switch provides excellent tactile feedback with SPDT contact configuration including normally closed and normally open contacts. The 22.3 mm panel cutout ensures compatibility with standard industrial control panel designs.

Constructed with a durable metal housing, the switch conforms to high protection standards including IP65 and IP67 ratings for dust and water ingress protection. It also complies with physical impact resistance IK10, making it suitable for demanding environments such as public installations, industrial machinery controls, and automation systems.

Electrical ratings include 240 V DC and 250 V AC contact voltages, supporting a maximum switching current of 3 A, ensuring dependable performance in electrical control circuits. The actuation is facilitated via screw terminals providing secure and straightforward wiring connections. Operating temperature ranges from -30°C to 70°C, accommodating a wide range of industrial settings.

The switch features a natural colored, raised button actuator for excellent tactile feedback. Designed for panel mounting with a 22.3 mm cutout size. Single pole double throw (SPDT) contact configuration with NC and NO switch contacts.

IP65 and IP67 protection ratings ensure dust tightness and water resistance up to immersion level. Operates reliably between -30°C to 70°C temperature range. Termination via screw type terminals for secure electrical connections.

Compact dimensions of approximately 28.5 mm height, 36.3 mm length, and 25.2 mm width. Rated for up to 3 A switching current at 240 V DC and 250 V AC contact voltages. Robust metal housing provides IK10 protection against physical impact and vandalism.

Ideal for industrial, automation, control panels, and harsh environment applications.

This push button switch is widely used in electrical automation, manufacturing control systems, HVAC controls, and equipment requiring durable user interface components. The high protection ratings and reliable contact configuration make it suitable for both indoor and outdoor installations in demanding conditions.

Choose the EAO 82 Series push button switch for assured durability, compliance with international standards such as CB, CCC, cUL, and UL, and dependable momentary switching action. Perfect for industrial, laboratory, and commercial electrical applications.

Explore additional EAO push button switch options and components in our extensive industrial electrical catalog at EnvMart.

Explore more products in our Push Button Switches category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a single pole double throw (SPDT) contact configuration with normally closed (NC) and normally open (NO) switch contacts.

The switch has approximate dimensions of 28.5 mm in height, 36.3 mm in length, and 25.2 mm in width.

It is rated for a maximum switching current of 3 A at 240 V DC and 250 V AC contact voltages.

This unit operates reliably between -30°C to 70°C, making it suitable for various industrial environments.

Termination is via screw type terminals, which provide secure electrical connections.

The switch has IP65 and IP67 protection ratings, ensuring dust tightness and water resistance up to immersion level.

This switch requires a panel cutout size of 22.3 mm for proper installation.

It complies with international standards including CB, CCC, cUL, and UL.

The EAO 82 Series switch is designed for momentary operation, meaning it only activates while the button is pressed.

The actuator is a raised button style and is colored natural for excellent tactile feedback.

This switch is suitable for applications in industrial automation, control panels, HVAC controls, and other environments requiring durable user interface components.

This model is designed for panel mounting, making it compatible with standard industrial control panel designs.
