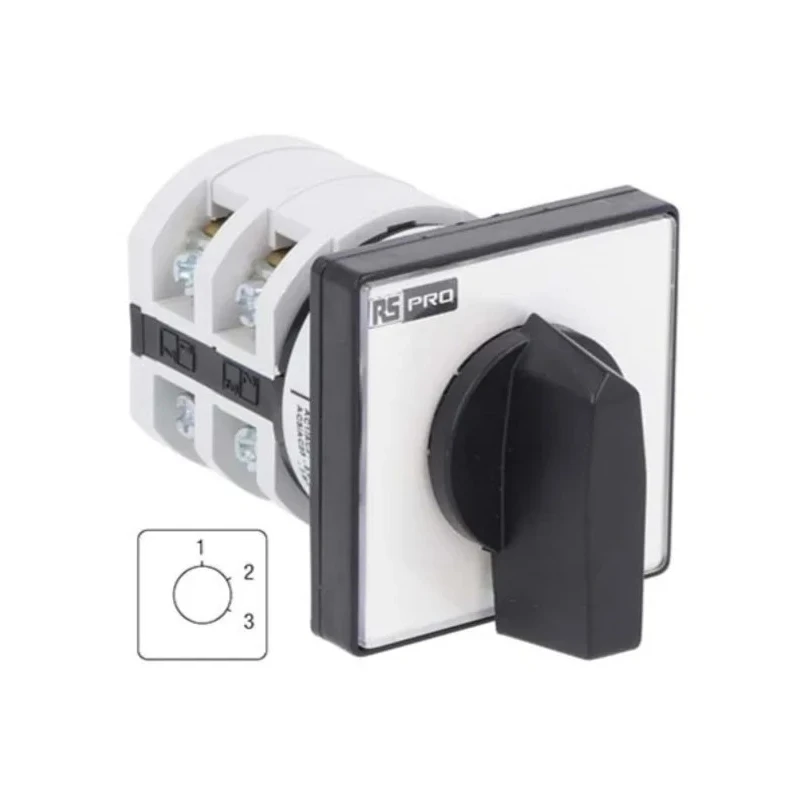

RS PRO Rotary Cam Switch 3 Position 60 ° Angle of Throw Panel Mount 1 Pole Screw Terminal Actuator Knob 20 A 208-3920

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Rotary Cam Switch 3 Position 60 ° Angle of Throw Panel Mount 1 Pole Screw Terminal Actuator Knob 20 A 208-3920

Name: RS PRO Rotary Cam Switch 3 Position 60 ° Angle of Throw Panel Mount 1 Pole Screw Terminal Actuator Knob 20 A 208-3920
Brand: RS PRO
SKU: 402437
Price: 3440.15 INR
Availability: InStock



Category Cam Switch Brand RS PRO Condition New

Specifications

Country of Origin	Croatia
Brand	RS PRO
Length	48mm
Model	208-3920
IP Rating	IP20
Width	48mm
Mount Type	Panel
Maximum Operating Temperature	55°C
Actuator Type	Knob
Number of Positions	3
Minimum Operating Temperature	-25°C
Terminal type	Screw
Electrical Phase	1
Number of Poles	1
Standards/Approvals	RoHS
Mechanical Life	5000000Operations
Contact Voltage	690V
Contact Current	20A
Angle of Throw	60 °

Key Features

Designed with a durable knob actuator ensuring reliable switching.
Supports a contact current of 20 A suitable for industrial applications.
Features a single pole with screw terminal connections for secure mounting.
Operates efficiently within a temperature range of -25°C to 55°C.
Rated IP20 providing frontal protection against solid objects.
Mechanical life rated up to 5,000,000 operations ensuring long-term durability.
Compact dimensions of 48 mm width and 48 mm length for space-saving installation.
Compliance with RoHS standards for environmental safety.

Product Description

RS PRO 208-3920 Rotary Cam Switch is a robust and reliable panel-mounted cam switch designed for industrial, electrical, and automation applications. It offers 3 distinct switching positions with a 60 ° angle of throw, ideal for controlling a variety of circuits with ease and precision.

The switch features a knob actuator type that facilitates manual operation with excellent durability and safety. Rated for a contact current of 20 A and contact voltage up to 690 V, it supports safe and effective motor starting and on/off switching tasks in industrial environments.

Built to withstand demanding conditions, it operates in temperatures ranging from -25°C to 55°C and is rated IP20 for frontal solid object protection. The screw terminal type allows for secure connections, and the switch is mounted on the panel using 4 screws, enabling quick installation and minimal downtime.

With a mechanical life expectancy of 5,000,000 operations, this switch ensures long-term reliability and durability even under frequent usage. Its compact dimensions of 48 mm by 48 mm make it suitable for installations where space is limited.

The product complies with RoHS standards, guaranteeing environmental compliance and safety. Manufactured in Croatia, the RS PRO cam switch is trusted for quality and performance across various industrial and automation uses.

Durable knob actuator for manual switching. 20 A contact current rating suitable for heavy-duty applications. Panel mount type with screw terminal connections. Operating temperature range from -25°C to 55°C. IP20 rated for frontal protection against solid objects.

Mechanical life of 5,000,000 operations to ensure longevity. Compact 48 mm x 48 mm size for space-efficient mounting. RoHS compliant for environmental safety. Ideal for motor start and stop control and circuit switching.

Manufactured in Croatia for assured quality.

This Cam Switch is well-suited for industrial, electrical, building, and automation control applications. It facilitates motor control, multi-step switching, and safe operation of hazardous machinery where manual intervention is necessary. Explore more RS PRO switches and automation components at EnvMart for your industrial control needs.
