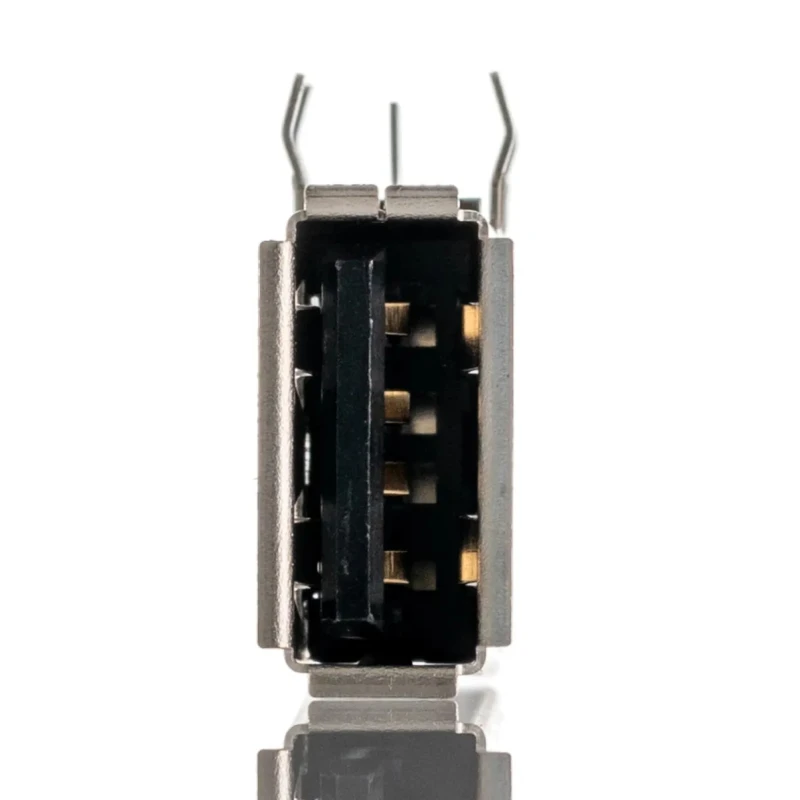

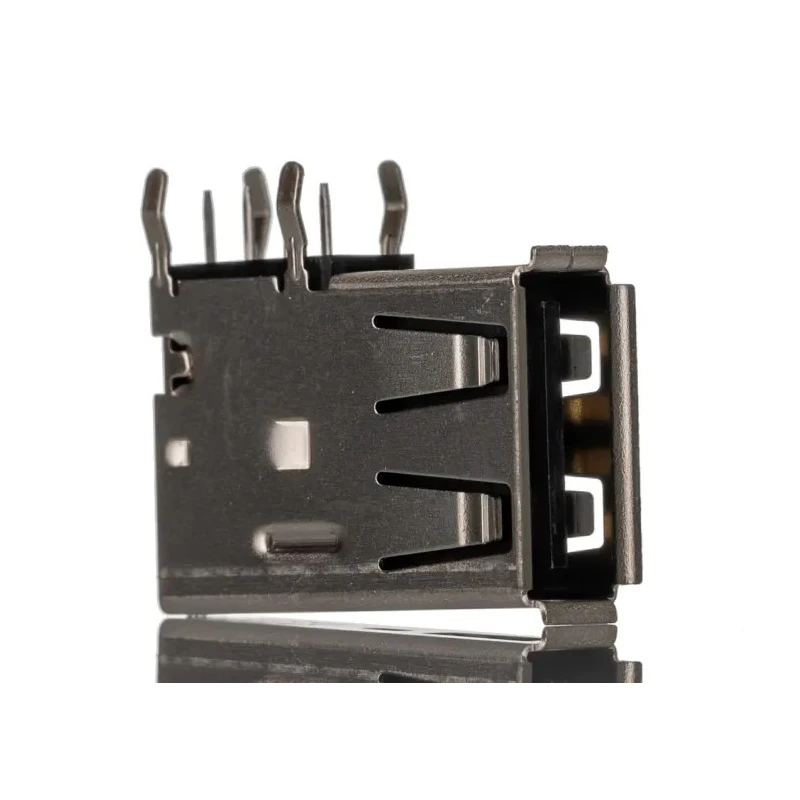

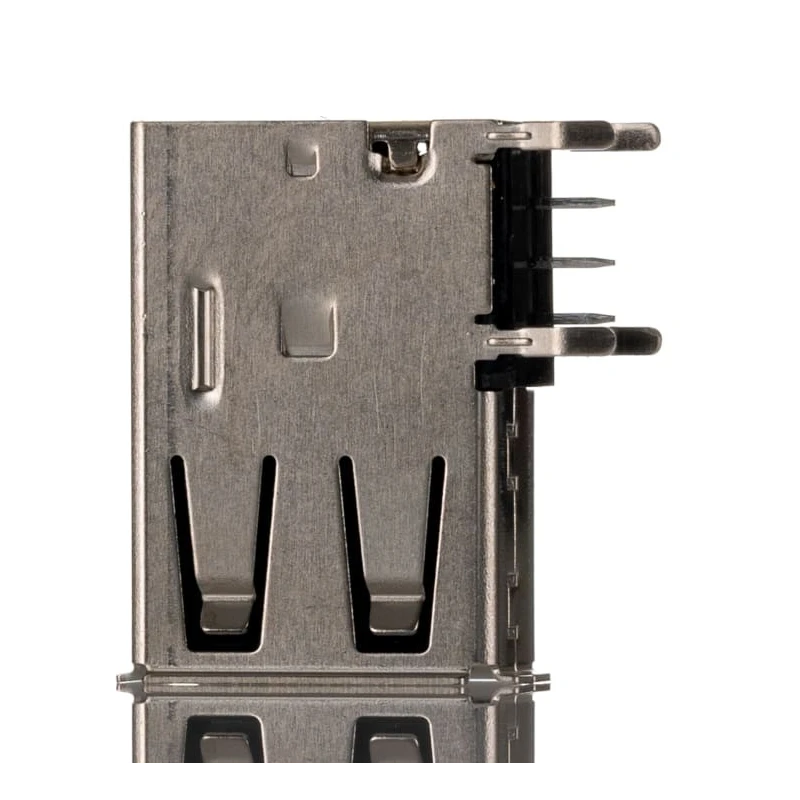

Molex Right Angle Through Hole Female USB Type A Connector USB 2.0 1 Port 1.5A Current Rating 30V 48204-0001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | 48204 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| USB Type | USB Type A |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Right angle orientation supports size-sensitive applications.
- Through hole mount type ensures sturdy PCB installation.
- Rated current of 1.5A handles moderate power requirements.
- Operates up to 30 volts with solder termination type.
- Contact material made of phosphor bronze for durability.
- Designed to prevent incorrect mating with polarised housing.
- Provides strong plug retention via detent lock feature.
- Reliable shielding reduces electromagnetic and radio frequency interference.
Product Description
Molex 48204-0001 Right Angle Through Hole Female USB Type A Connector USB 2.0 is engineered for secure data and power connectivity with a current rating of 1.5A and voltage rating of 30V. Its polarised housing design prevents incorrect mating, making it ideal for sensitive electronic devices.
This USB connector features a right angle body orientation, facilitating compact PCB layouts and space-saving installations. The through hole mounting method provides robust mechanical stability when soldered onto printed circuit boards.
Constructed with phosphor bronze contacts, it ensures durable electrical performance and resistance to wear. The connector includes a grounding feature and detent lock for strong plug retention, essential for reliable connections in demanding applications.
Its shielding is designed to mitigate RFI and EMI, maintaining signal integrity for various electronic peripherals, including printers, scanners, monitors, modems, and telephony equipment such as ISDN and PBXs.
Operating reliably within a temperature range of -55°C to 85°C, it accommodates diverse industrial and commercial environments. This connector is compliant with USB 2.0 specifications and supports 1 port connections.
Right angle orientation supports size-sensitive applications. Through hole mount for sturdy PCB fitment and solder termination. Durable phosphor bronze contact material. Polarised housing prevents incorrect mating. Detent lock ensures secure plug retention.
Shielding against RFI and EMI for signal integrity. Current rating of 1.5A and voltage rating of 30V. Supports PC peripherals and telephony systems. Operates between -55°C and 85°C temperature range. USB 2.0 compliance ensures broad compatibility.
This high-quality Molex USB Connector is suitable for industrial, commercial, and consumer electronic applications, ensuring reliable connections in construction, manufacturing, and laboratory environments. Browse EnvMart for more precision connectors and electronic assembly components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB connector has a current rating of 1.5A and operates at a voltage rating of 30V.
It uses a through hole mounting type, ensuring sturdy installation on printed circuit boards.
The connector features a right angle orientation, which is beneficial for size-sensitive applications.
The contacts are made of phosphor bronze, providing durability and reliable electrical performance.
Yes, it is compliant with USB 2.0 specifications, ensuring broad compatibility with various devices.
It operates reliably within a temperature range of -55°C to 85°C, suitable for diverse environments.
This model supports 1 port connections, designed for efficient data and power transfer.
The connector is designed with a polarised housing that prevents incorrect mating, enhancing usability.
It includes a detent lock feature that ensures strong plug retention for reliable connections.
It is suitable for various applications including printers, scanners, monitors, modems, and telephony equipment.
The termination type for this model is solder, which is standard for through hole connections.
The country of origin for this connector is India.
