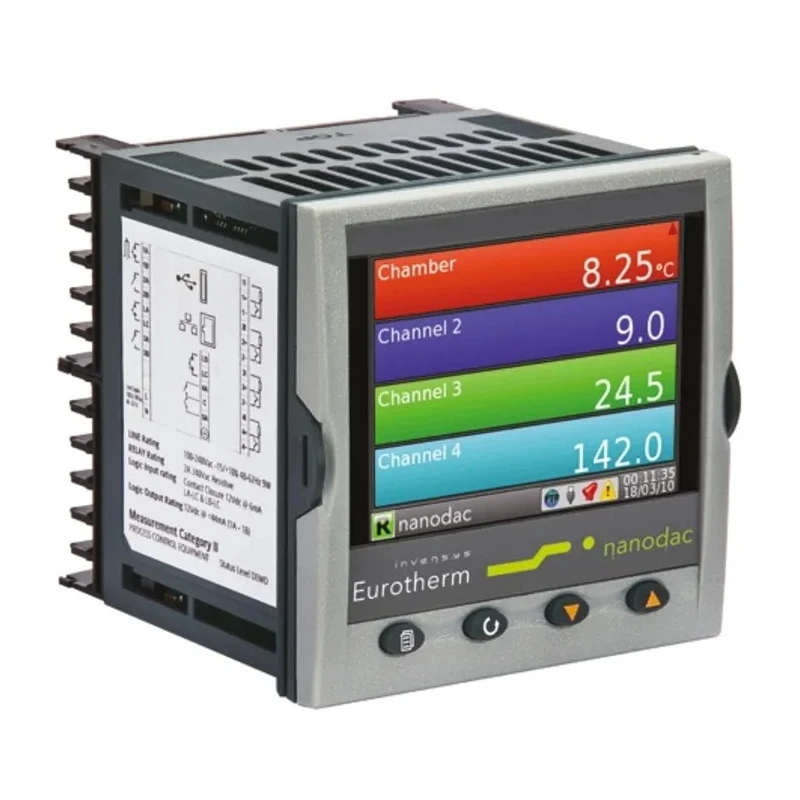

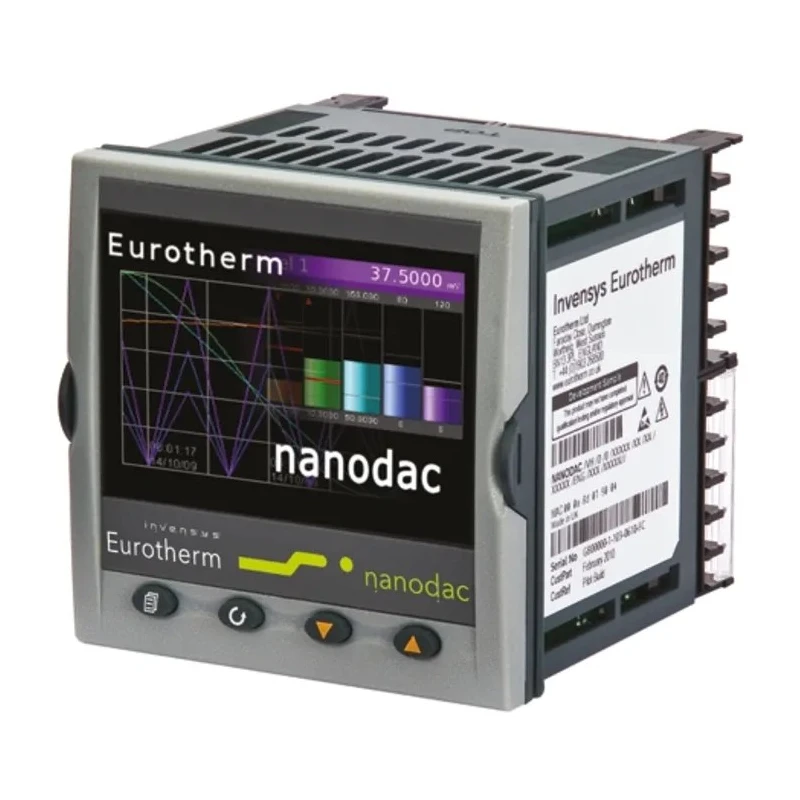

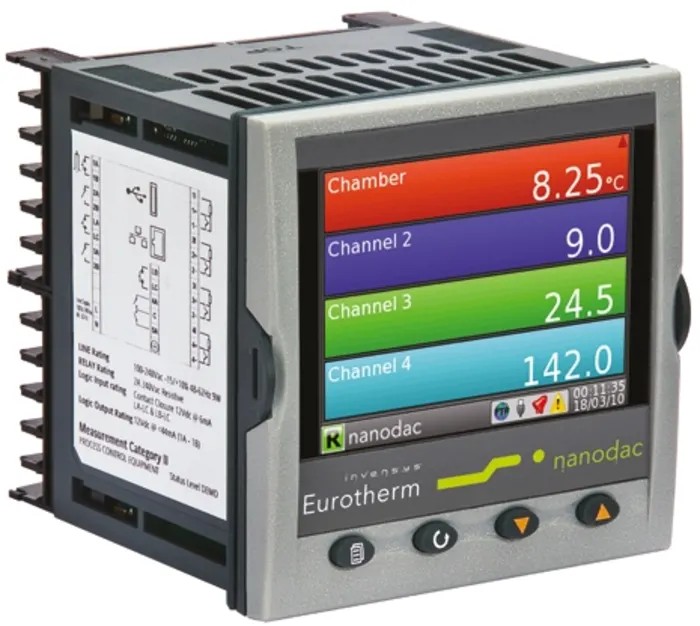

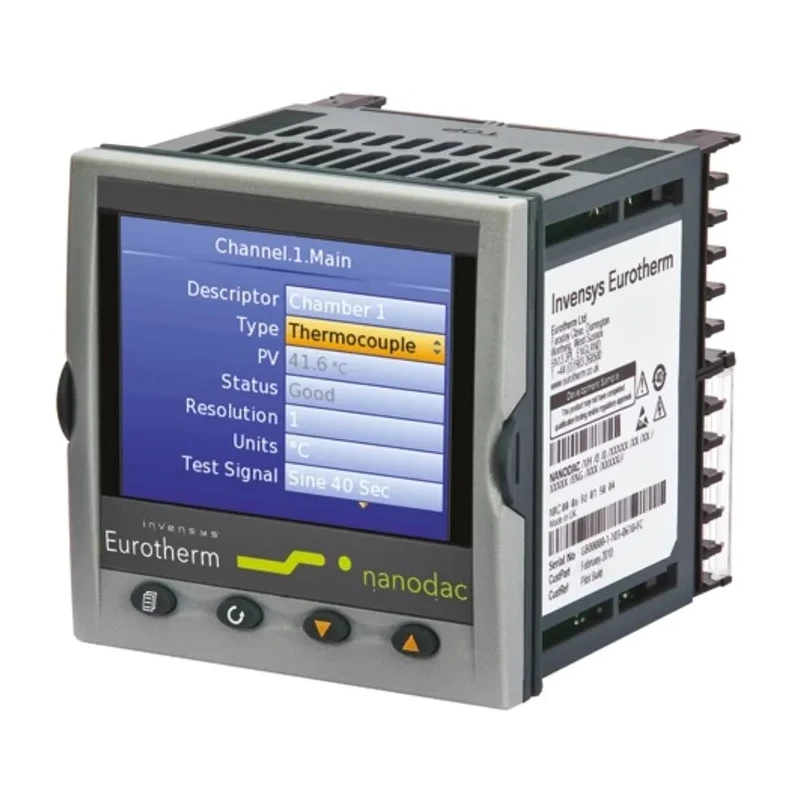

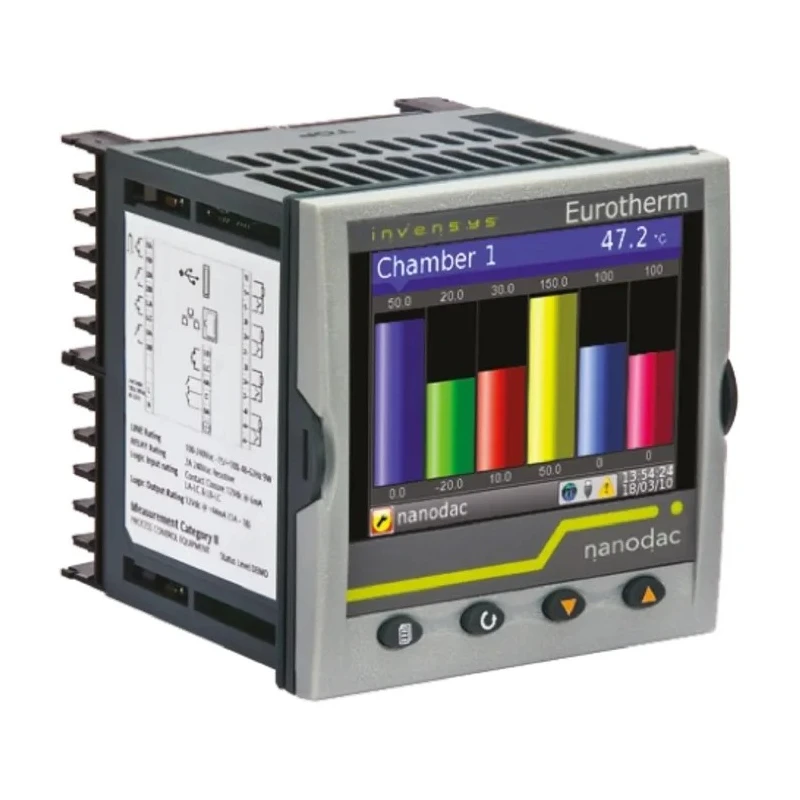

Eurotherm NANODAC/VL 3-Channel Graphical Chart Recorder with Current, Millivolt, Resistance, Temperature NANODAC/VL/X/X/LRR

Eurotherm NANODAC/VL/X/X/LRR is a 3-channel graphical chart recorder designed for industrial applications requiring accurate measurement and control of current, millivolt, resistance, temperature, and voltage parameters. It features a compact 1/4 DIN panel mount form factor with dimensions of 96 mm height, 96 mm length, and 90 mm width, and weighing approximately 440 grams.

The device incorporates a high resolution of 0.05 °C and offers ±1% accuracy for precise data acquisition. Its 3.5" TFT VGA full-color display provides clear visualization of process data in multiple configurable views including horizontal and vertical trends, bar graphs, numeric readouts, alarm panels, and control loop statuses, contributing to improved operator interface and process monitoring.

This chart recorder supports secure data recording on a 50 MB flash memory with USB removable storage facilitating easy data access and backup. Additionally, it includes two PID control loops enabling advanced process control directly from the unit. Ethernet communications with Modbus TCP/IP slave capability are available as optional features.

Designed for industrial environments, the NANODAC/VL/X/X/LRR complies with CE, UL, and BS EN 61326 standards, ensuring safety and EMC compliance. It offers a multi-language interface supporting English, French, German, Italian, and Spanish, making it adaptable to diverse global operations.

The front of the device provides user wiring access for straightforward configuration without a PC connection. Its compact, rugged design suits various applications including manufacturing, HVAC systems, water treatment monitoring, and laboratory environments.

High accuracy of ±1% for dependable measurements. Three universal input channels for versatile parameter monitoring. Full-color 3.5" TFT VGA display for enhanced data visualization. Secure data storage with USB removable flash memory.

Two integrated PID control loops for effective process regulation. Multiple graphical and numeric display formats to suit specific needs. Compliance with CE, UL, and BS EN 61326 standards ensures reliability. Multi-language support for ease of operation worldwide.

Compact 1/4 DIN panel mount with front wiring access.

This Eurotherm NANODAC/VL/X/X/LRR graphical chart recorder is ideally suited for industrial process monitoring, laboratory instrumentation, and environmental control where precise and reliable graphical data logging is essential. The unit enhances operational efficiency, quality assurance, and regulatory compliance through its advanced features and rugged build.
