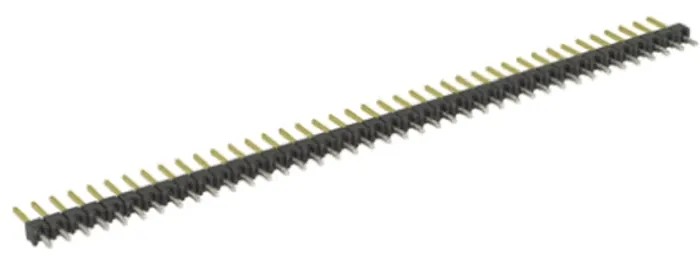

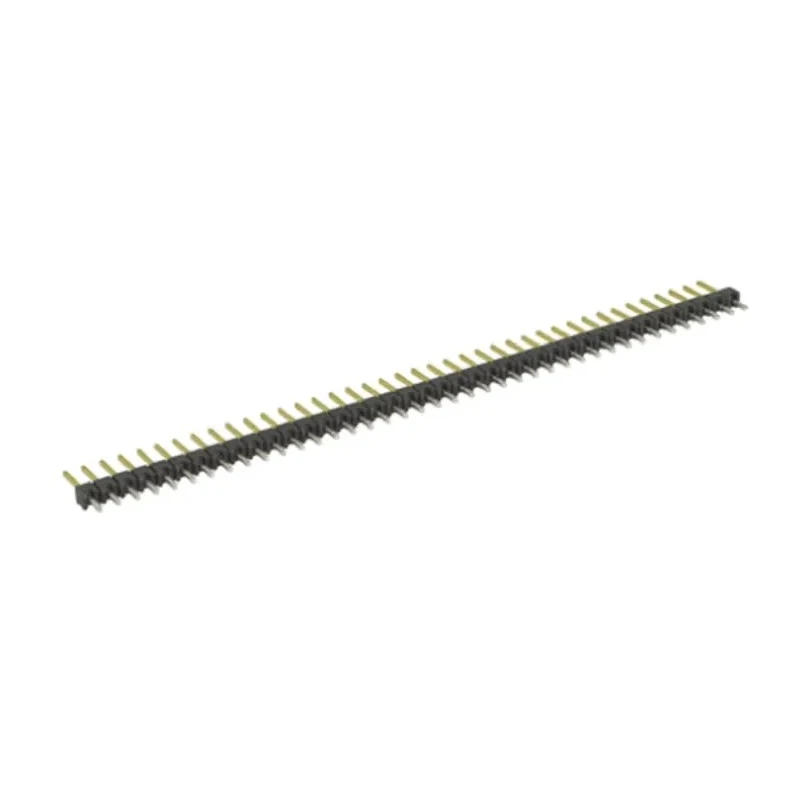

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contacts, 2.54 mm Pitch, 1 Row 9-146281-0
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.05mm |
| Mating Pin Length | 5.84mm |
Key Features
- Features 40 straight contacts with 2.54 mm pitch for precise spacing.
- Single row, unshrouded design suitable for through-hole mounting.
- Constructed with phosphor bronze contacts plated in gold for durability.
- Supports operating temperatures from 0°C to 105°C.
- Compatible with both board-to-board and wire-to-board connector systems.
- Termination via solder tail with pin length of 3.05 mm ensures strong solder joints.
- Compact and breakaway design allows customization for exact size requirements.
- Ideal for automotive, industrial controls, telecommunications, and medical instrumentation.
Product Description
TE Connectivity 9-146281-0 AMPMODU MOD II Series Straight Through Hole Pin Header features 40 contacts in a single row with a 2.54 mm pitch, designed for through-hole PCB mounting. This unshrouded pin header offers a robust connector system suitable for variety of industrial and electronic applications requiring reliable electrical connections.
Constructed with phosphor bronze contact material and gold plating, it ensures excellent conductivity and resistance to corrosion. Its solder tail termination with a pin length of 3.05 mm facilitates effective soldering and mechanical stability. The device supports a current rating of 3 amperes and has a temperature range from 0°C to 105°C, making it suitable for demanding environments.
The AMPMODU Mod II interconnect system is widely used in industrial automation, automotive controls, computers, telecommunications equipment, and medical devices. Its breakaway design allows users to snap off the required number of pins for custom configurations, enhancing installation efficiency and reducing labor cost.
Applications include control panels, test equipment, data communication systems, and storage devices. This connector is part of an ecosystem of board-to-board and wire-to-board connectors ensuring compatibility across a broad range of applications that demand compact, durable, and economical connectivity solutions.
Features 40 straight contacts with 2.54 mm pitch for precise spacing. Single row, unshrouded design suitable for through-hole mounting. Constructed with phosphor bronze contacts plated in gold for durability. Supports operating temperatures from 0°C to 105°C.
Compatible with both board-to-board and wire-to-board connector systems. Termination via solder tail with pin length of 3.05 mm ensures strong solder joints. Compact and breakaway design allows customization for exact size requirements.
Ideal for automotive, industrial controls, telecommunications, and medical instrumentation. Manufactured in Mexico ensuring high quality standards. Reliable and economical solution for high-density interconnection needs.
Explore the range of TE Connectivity connectors at EnvMart for advanced PCB interconnection components suitable for industrial, electronic manufacturing, and automation applications.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header have a pitch of 2.54 mm.
This model supports a maximum operating temperature of 105°C.
It features a total of 40 contacts.
This connector is designed for through-hole mounting.
The contacts are constructed from phosphor bronze and are plated in gold for enhanced conductivity and corrosion resistance.
The termination type for this model is solder, with a tail pin length of 3.05 mm.
Yes, it is compatible with both board-to-board and wire-to-board connector systems.
The current rating for this model is 3 amperes.
The contacts in this connector are oriented straight.
This product is manufactured in Mexico.
It is suitable for applications in automotive, industrial controls, telecommunications, and medical instrumentation.
This pin header features a single row, unshrouded design.
