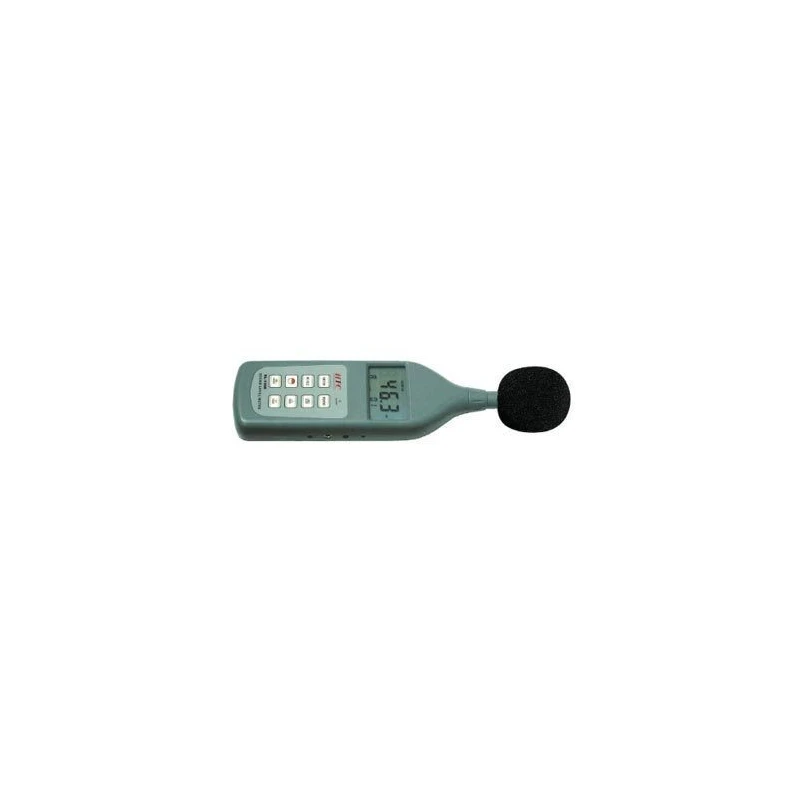

Noise Analyzer

Sound & Vibration Analyzer is the next generation of Type 1 sound & vibration instruments and is designed to meet the needs of both environmental monitoring and occupational health and safety monitoring specialists. Its exceptional hardware design also enables the measurement of ultra sound frequencies in the 40 kHz band.It provides broadband results with all the standard weighting filters and also offers an incredible time history logging capability providing broadband results and spectra with adjustable double (long and short) logging steps.The highly developed user interface works on networks like GPRS, Ethernet, WLAN or ZigBeeTM for both remote data download and settings configuration. The built-in BluetoothTM interface together with smart-phone application, SvanMobile, extends measurement capabilities with all the features offered by smart-phones including text/voice comments, photo, video, GPS position etc.FeaturesType 1 IEC 61672:2002 sound level measurementsDedicated for:General acoustic measurementsEnvironmental noise monitoringOccupational health and safety noise monitoringUltra sound measurements in 40 kHz bandGeneral vibration measurements (acceleration, velocity and displacement)Hand-arm vibration measurementsThree parallel independent profiles1/1 or 1/3 octave real-time analysisFFT real-time analysisTime-domain signal recording & audio events recordingReverberation time measurementsAdvanced Data Logger including spectral analysisMicroSD card providing almost unlimited logging capacityBluetoothTM interfaceRemote communication (GPRS, Ethernet, WLAN, ZigBeeTM)All weather microphone protection kit designed for community and airport noise monitoringOLED color display with super brightness and contrastHand held, light weight and robust caseTNC input connectorEasy in useTechnical Specifications - Noise AnalyserStandardsType 1: IEC 61672-1:2002Meter modeSPL, Leq, SEL, Lden, Ltm3, Ltm5, Statistics - Ln (L1-L99), LMax, LMin, LPeak Simultaneous measurement in three profiles with independent set of filters and detectorsAnalyzer1/1 or optional 1/3 octave1 real-time analysis meeting Type 1 requirements of IEC 61260. FFT 1 real-time analysis 1600 lines, up to 20.0 kHz band (option)Reverberation time analysis in 1/3 octave bands (RT 60 option)Weighting filtersA, B, C , ZRMS DetectorDigital True RMS detector with Peak detection, resolution 0.1 dB,Time Constants: Slow, Fast, ImpulseMicrophoneACO 7052E, nominal sensitivity 35 mV/Pa, prepolarised 1/2 condenser microphoneTotal dynamic measurement range15 dBA RMS - 140 dBA Peak (typical from noise floor to the maximum level)Linear operating range25 dBA RMS - 140 dBA Peak (in accordance to IEC 61672)Internal Noise Levelless than 15 dBA RMSFrequency Range10 Hz 40 kHz (transducer dependent)
