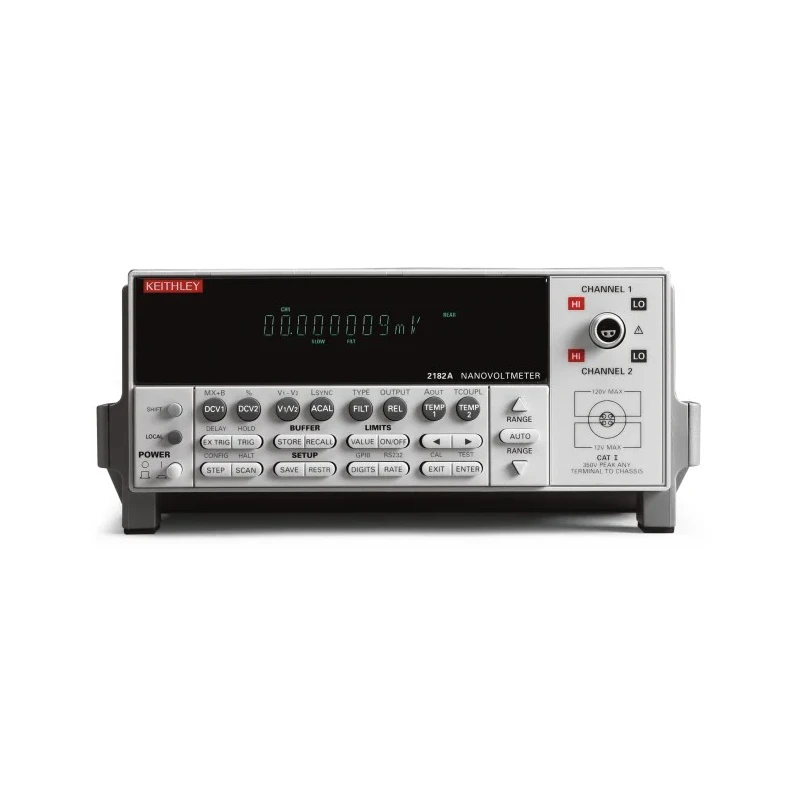

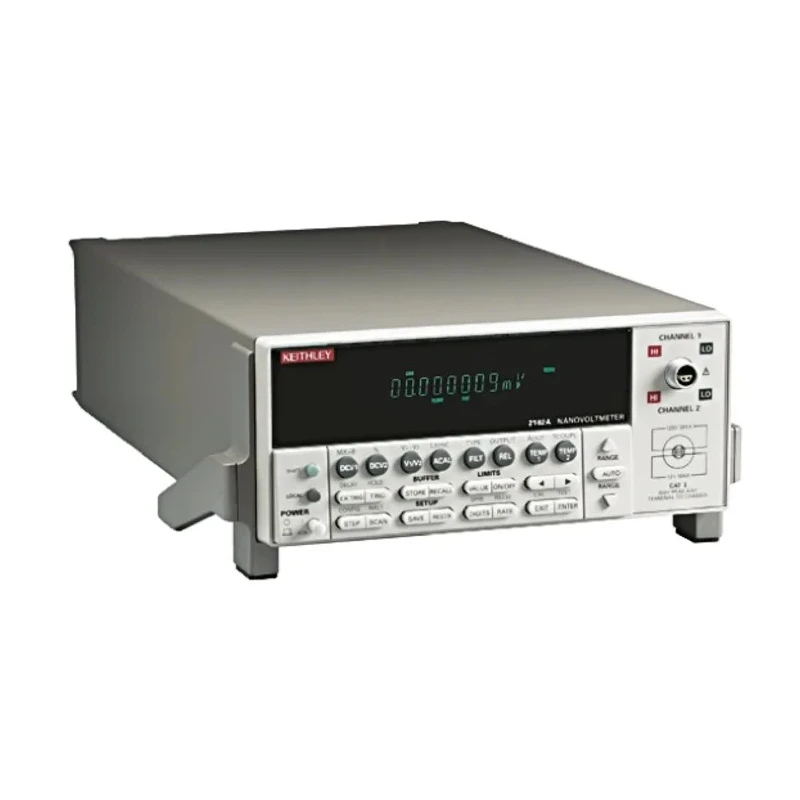

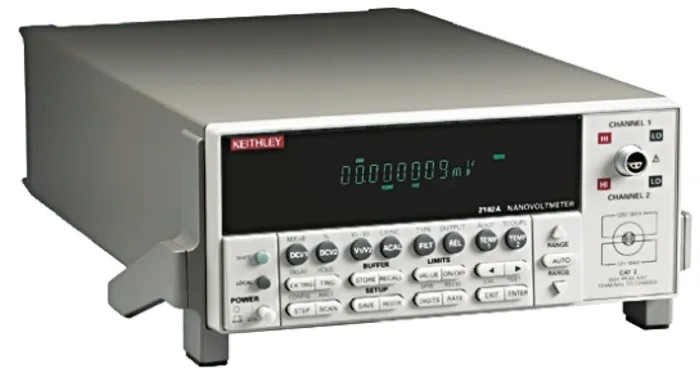

Keithley Bench Digital Multimeter 10V DC Voltage 400Hz Frequency 2182A/E

Keithley 2182A/E Bench Multimeter is a new, digital bench instrument optimized for stable, low noise voltage measurements and characterizing low-resistance materials.

This model offers a maximum DC voltage measurement of 10V with exceptional accuracy of ±0.005% reading plus 4 digits. It features a digital display with measured functions including DC voltage, resistance, and temperature across two channels for simultaneous input types.

The instrument supports frequencies up to 400Hz and is designed to operate within a temperature range of 0°C to 50°C, making it suitable for various industrial and laboratory environments.

Its delta mode facilitates measurements coordinated with a reversing current source at rates up to 24Hz, delivering typical noise levels as low as 30nV peak-to-peak per reading, ideal for precise resistance bridges.

Synchronization to power line frequency provides excellent noise rejection (110dB NMRR), minimizing interference from AC common-mode currents. Temperature measurements utilize built-in thermocouple linearization and cold junction compensation.

The sturdy housing measures 370mm in length, 213mm in width, and 89mm in height, weighing 5 kg, powered by mains electricity, making it suitable for laboratory, research, metrology, superconductivity studies, nanomaterials characterization, and precise electrical testing.

This bench multimeter provides high sensitivity with 10V DC maximum voltage measurement. Equipped with a digital display and supports up to 400Hz frequency measurement. Operates reliably from 0°C to 50°C ambient temperature.

Designed with two channels for voltage and temperature measurement, suitable for material characterisation. Offers advanced delta mode with noise reduction and synchronization features. Measures low resistance materials with exceptional accuracy and repeatability.

Includes built-in thermocouple linearization and cold junction compensation for temperature measurement. Robustly built with dimensions 370mm length, 213mm width, and 89mm height with a weight of 5 kg. Operated via mains power and equipped with USB-TO-GPIB interface adapter for connectivity.

Manufactured in China with new product condition assurance. This Keithley 2182A/E Bench Multimeter is ideal for industrial, laboratory, HVAC, manufacturing, and research applications including superconductivity and metrology.
