Epson 18.432 MHz Crystal ±50 ppm Surface Mount 4-Pin 3.2 x 2.5 x 0.7 mm Q22FA2380014912
Specifications
| Country of Origin | India |
|---|---|
| Frequency range | 16 MHz to 60 MHz |
| Brand | Epson |
| Height | 0.7mm |
| Length | 3.2mm |
| Model | Q22FA2380014912 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN ISM band radio, Clock for MPU |

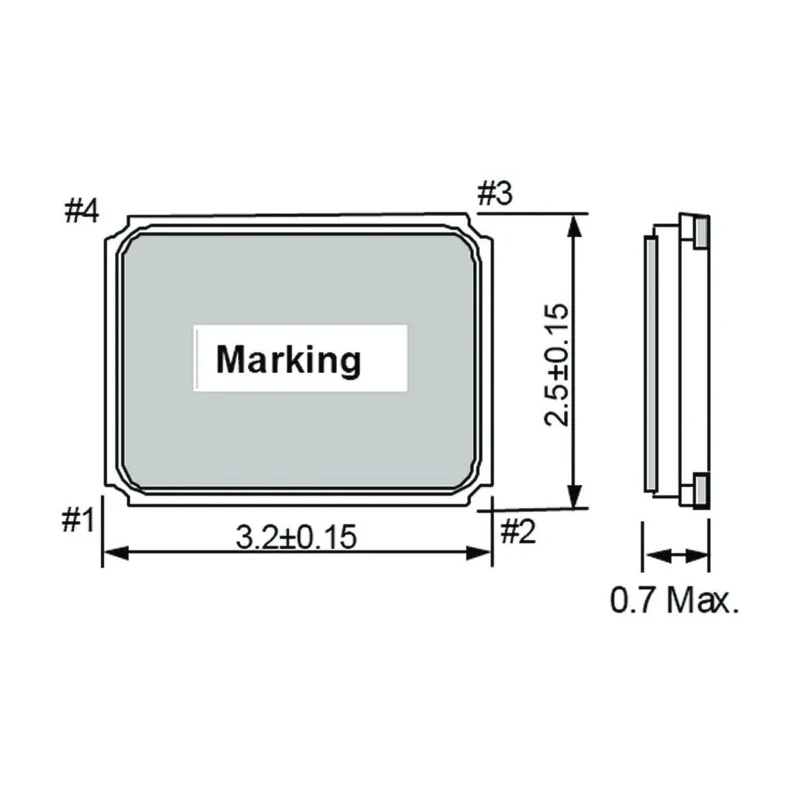

| External Dimensions | 3.2 x 2.5 x 0.7 mm |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 18.432MHz |
| Load Capacitance | 10pF |
| Series Resistance | 80Ω |
| Overtone order | Fundamental |
Key Features
- This crystal provides frequency stability of ±30 ppm ensuring reliable oscillation performance.
- It operates within a temperature range from -40°C up to 85°C for enhanced durability.
- The device features a load capacitance of 10pF optimized for electronic circuit applications.
- Tape and reel packaging facilitates efficient handling during automated assembly.
- Series resistance is 80Ω supporting precise frequency generation in communication devices.
- The crystal's fundamental overtone order ensures low phase noise operation.
- Designed for use in mobile phones, Bluetooth, W-LAN ISM band radios, and MPU clock applications.
- Compliance with RoHS standards guarantees environmentally responsible manufacturing.
Product Description
Epson Q22FA2380014912 18.432 MHz Crystal is a highly reliable surface mount component with 4 pins and compact dimensions of 3.2 x 2.5 x 0.7 mm. It delivers a frequency tolerance of ±50 ppm and frequency stability of ±30 ppm, ideal for precision timing in industrial, communication, and consumer electronic applications.
This miniature SMD crystal operates effectively within a wide temperature range from -40°C to 85°C, ensuring stable performance in various environmental conditions. The device features a fundamental overtone order with series resistance of 80 ohms, which contributes to minimal signal distortion and robust frequency generation.
The 10pF load capacitance and tape & reel packaging make it well-suited for automated PCB assembly processes. This crystal unit complies with RoHS directives, ensuring environmentally safe materials and manufacturing processes.
Frequency range available from 16 MHz to 60 MHz accommodating diverse application needs. External dimensions of 3.2 x 2.5 x 0.7 mm allow for low-profile mounting in compact electronic devices. Applications include mobile phones, Bluetooth modules, wireless LAN ISM band radios, and microprocessor clocks where accurate timing is critical.
Surface mount package type supports advanced assembly efficiency and miniaturization. RoHS certification confirms adherence to modern environmental and safety standards.
This Epson crystal unit enhances operational accuracy in electronic circuits used across industrial, telecommunications, automotive, and consumer electronics sectors. Its compact size and stable frequency characteristics meet demanding requirements for modern electronic product designs.
Explore more Epson Crystal Units and other advanced electronic components in EnvMart’s professional electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal is 18.432 MHz.
It operates effectively within a temperature range from -40°C to 85°C.
The load capacitance of this model is 10 pF, optimized for electronic circuit applications.
The series resistance is 80Ω, which supports precise frequency generation.
The external dimensions are 3.2 mm in length, 2.5 mm in width, and 0.7 mm in height.
It is packaged in tape and reel format, facilitating efficient handling during automated assembly.
This model is designed for use in mobile phones, Bluetooth modules, wireless LAN ISM band radios, and microprocessor clock applications.
It features a surface mount type, which supports advanced assembly efficiency and miniaturization.
The crystal complies with RoHS standards, ensuring environmentally responsible manufacturing.
The frequency tolerance is ±50 ppm, ensuring reliable oscillation performance.
The crystal has a fundamental overtone order, which contributes to low phase noise operation.
The country of origin for this model is India.
