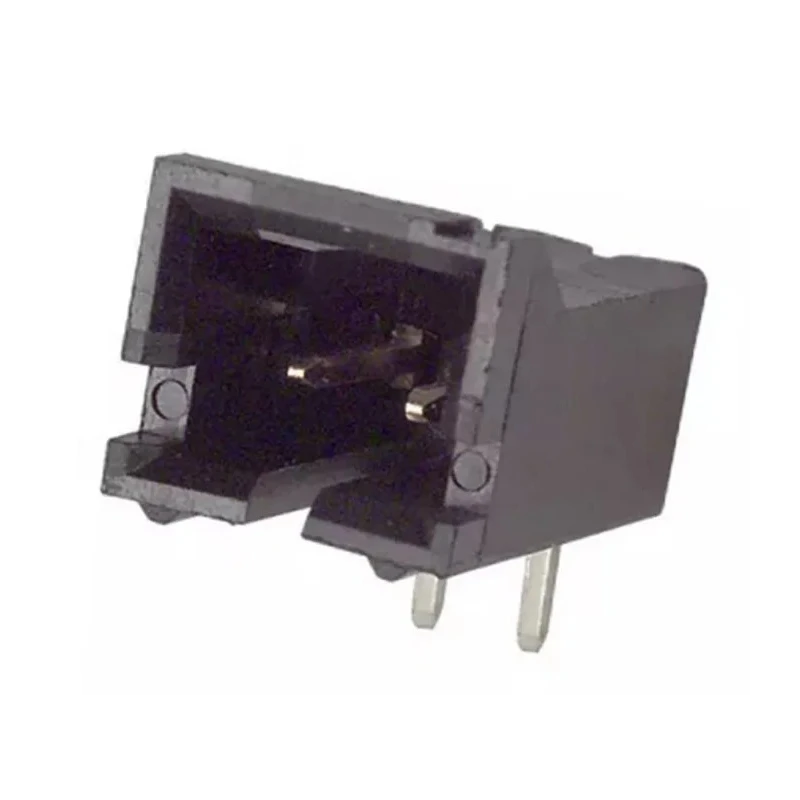

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row 5-103635-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MTE |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector features a single row with brass contacts plated in gold for enhanced conductivity.
- It supports a current rating of 3A and a voltage rating of 40V.
- The thermoplastic housing materials provide durability and insulation.
- Designed for solder termination and right angle orientation for PCB mounting.
- Its operating temperature range spans from -55°C to 105°C, ensuring performance in varied environments.
- Integral latching mechanism ensures secure mating with IDC receptacle connectors.
- The product is shrouded to protect contacts and enhance reliability.
- Applicable for mass termination in electronics, telecommunications, instrumentation, and automotive controls.
Product Description
TE Connectivity 5-103635-1 AMPMODU MTE Series Right Angle Through Hole PCB Header is a high-quality electronic component designed for reliable wire-to-board connections. It features a 2.54 mm pitch and includes 2 gold-plated brass contacts housed in a thermoplastic shrouded single-row configuration. This right angle PCB header supports a current rating of 3A and voltage rating up to 40V, making it suitable for various industrial and commercial electronics applications.
This component is designed with an integral latching mechanism to provide a secure mating connection with AMPMODU MTE IDC receptacle connectors, enabling cost-effective and efficient mass wire termination. Its solder termination and through-hole mount type ensure stable mechanical and electrical connections on printed circuit boards.
Built to withstand harsh conditions, it operates reliably within the temperature range of -55°C to 105°C. The shrouded design protects contacts from damage and potential environmental interference, increasing connector longevity and reliability.
The TE Connectivity AMPMODU MTE Series PCB Headers are widely used in computers, telecommunications equipment, commercial printers, appliances, medical devices, instrumentation, and automotive controls, supporting a broad range of industrial applications.
The connector features a single row with brass contacts plated in gold for enhanced conductivity. It supports a current rating of 3A and a voltage rating of 40V. Thermoplastic housing ensures insulation and durability. Right angle orientation facilitates space-efficient PCB layouts.
Integral latching mechanism ensures secure connection to IDC connectors. Shrouded construction for protection and reliability. Suitable for mass termination applications across electronics and industrial sectors. Explore the wide range of TE Connectivity connectors at EnvMart for dependable and high-performance interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of 40V.
The contacts of this connector have a pitch size of 2.54 mm.
It utilizes a solder termination type for secure connections.
The operating temperature range spans from -55°C to 105°C.
The housing is made of thermoplastic, and the contacts are brass plated in gold for enhanced conductivity.
This connector features 2 contacts.
It is designed in a right angle orientation for efficient PCB mounting.
This model is shrouded, providing protection for the contacts.
It is designed for wire-to-board connections.
The country of origin for this PCB header is India.
It is mounted using a through-hole method, ensuring stable connections.
It is applicable in electronics, telecommunications, instrumentation, and automotive controls.
