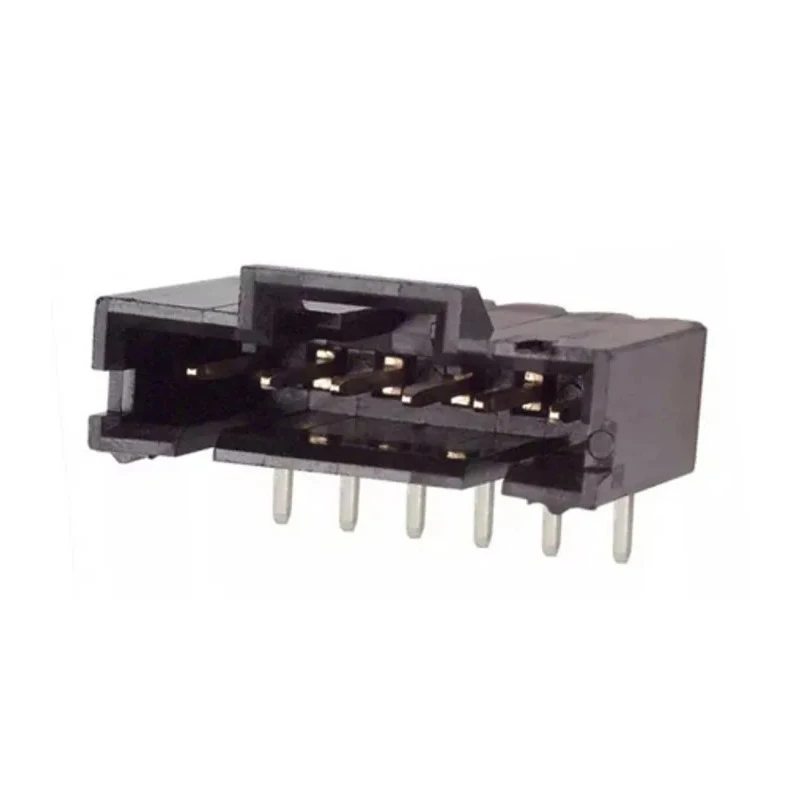

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 5-103635-5

TE Connectivity 5-103635-5 AMPMODU MTE Series Right Angle Through Hole PCB Header provides 6 contacts arranged in a single row with a 2.54 mm pitch. Designed for wire-to-board interconnection, this shrouded header features a thermoplastic housing and brass contacts plated in gold for enhanced electrical performance and corrosion resistance. It incorporates an integral latching mechanism ensuring a secure mating with IDC receptacle connectors. The right angle orientation and through hole mount enable versatile PCB designs requiring stable connections.

These PCB headers are end to end stackable, allowing flexible configurations to suit various electronic applications. With a current rating of 3A and voltage rating of 40V, it supports moderate electrical loads typical in computers, telecommunications equipment, commercial printers, and instrumentation. The headers are built to operate reliably in temperatures ranging from -55°C to 105°C, making them suitable for demanding industrial and electronic environments.

The product is ideal for mass termination of wires with insulation displacement contact (IDC) technology, simplifying assembly by eliminating wire stripping and reducing labor. Versions with hold-downs are available for secure PCB retention when needed. Common applications extend to medical equipment and automotive controls, highlighting the versatility of the AMPMODU MTE interconnect system.

Offers cost-effective mass termination using IDC connectors. Features integral latching for secure mating connection. End to end stackable for flexible PCB design integration. Constructed with thermoplastic housing for durability.

Brass contacts with gold plating ensure reliable conductivity. Suitable for operating temperatures from -55°C to 105°C. Designed for wire-to-board connector system applications. Through hole mount with solder termination type.

Rated for 3A current and 40V voltage applications.

This TE Connectivity product supports a wide range of industrial, telecommunications, computing, medical, and automotive connectivity needs. Browse other PCB Headers and connectors in the EnvMart catalog for compatible components and system designs.
