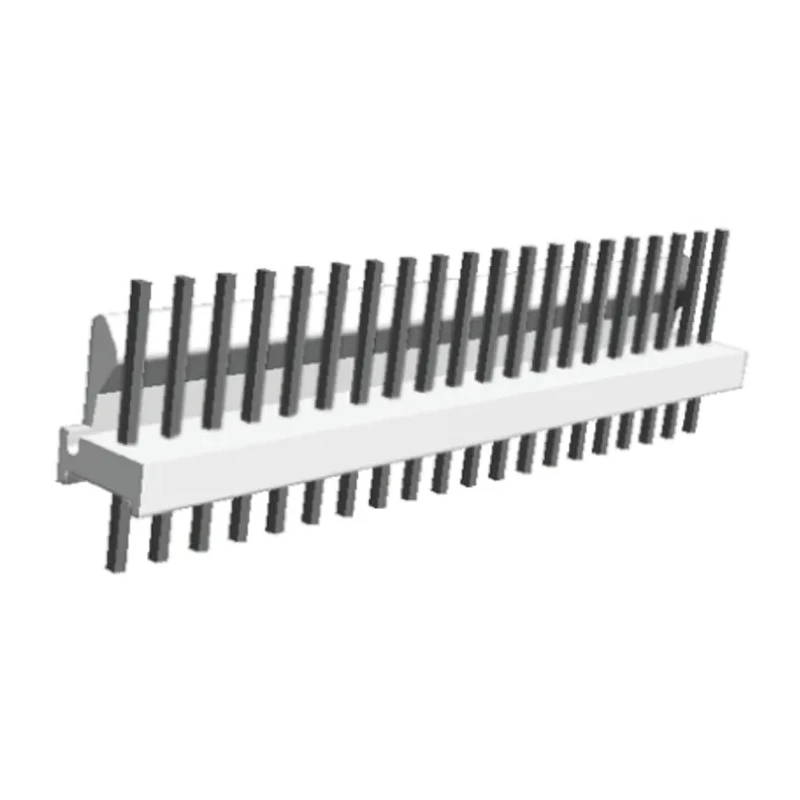

TE Connectivity MTA-100 Series Straight Through Hole Pin Header, 20 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded 2-640456-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- Constructed with glass filled polyester housing for durable insulation.
- Rated for 5A current and 250V operating voltage ensuring robust electrical performance.
- Features copper alloy contacts with tin plating for excellent conductivity and corrosion resistance.
- Through hole mount type suitable for solder termination on PCBs.
- Operating temperature range from 0°C to 105°C for versatile application environments.
- Includes 3.56 mm tail pin length facilitating secure PCB insertion.
- Designed with friction lock mechanism allowing secure mating connection.
- End to end stackable for flexible assembly and space efficiency.
Product Description
TE Connectivity 2-640456-0 MTA-100 Series Straight Through Hole Pin Header features a 20-contact configuration with 2.54 mm pitch and a single row unshrouded design. It is engineered for wire-to-board applications, allowing for cost-effective mass termination of wires using MTA-100 IDC connectors.
The housing is made of glass filled polyester, providing strong insulation and mechanical support, while the copper alloy contacts, plated with tin, ensure consistent electrical conductivity and resistance to corrosion. The connector supports a current rating of 5A and an operating voltage up to 250V.
This pin header is mounted through holes and soldered to printed circuit boards with a tail pin length of 3.56 mm, ensuring reliable mechanical and electrical connection. It operates efficiently within a temperature range of 0°C to 105°C, making it suitable for various industrial and commercial environments.
MTA-100 connectors feature a friction lock mechanism that secures the mating with IDC connectors and are end-to-end stackable, allowing modular expansion for complex wiring systems. These connectors are widely deployed in automotive body and chassis systems, driver information, safety and security systems, and in computer and consumer electronics like desktops, notebooks, servers, and storage devices.
Durable glass filled polyester housing with excellent insulation properties. Copper alloy tin-plated contacts ensure strong conductivity and corrosion resistance. Transmission current rating of 5 amperes and voltage rating of 250 volts.
Single row, straight orientation suitable for through hole solder mounting. Effective temperature operation from 0°C to 105°C. Friction lock mechanism for secure mating with IDC connectors. End to end stackable for modular wiring applications.
Widely used in automotive, industrial, and consumer electronic applications. Explore more PCB header connectors and other electronic components at EnvMart to fulfill various industrial and manufacturing requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header has a current rating of 5A and an operating voltage rating of 250V, ensuring robust electrical performance.
It features a pitch of 2.54 mm and includes 20 contacts in a single row configuration.
The housing is made of glass filled polyester, while the contacts are composed of copper alloy with tin plating for enhanced conductivity and corrosion resistance.
The tail pin length is 3.56 mm, facilitating secure solder termination on printed circuit boards.
This model is designed for through hole mounting, suitable for solder termination on PCBs.
It operates efficiently within a temperature range of 0°C to 105°C, making it suitable for various environments.
Yes, it is designed with a friction lock mechanism that secures the mating connection with IDC connectors.
Yes, it is end-to-end stackable, allowing for flexible assembly and modular expansion in wiring applications.
This connector is widely used in automotive body and chassis systems, driver information, safety and security systems, as well as in computer and consumer electronics.
It uses a solder termination type, allowing for reliable connections to printed circuit boards.
The orientation of this model is straight, designed for easy installation on PCBs.
The country of origin for this pin header is India.
