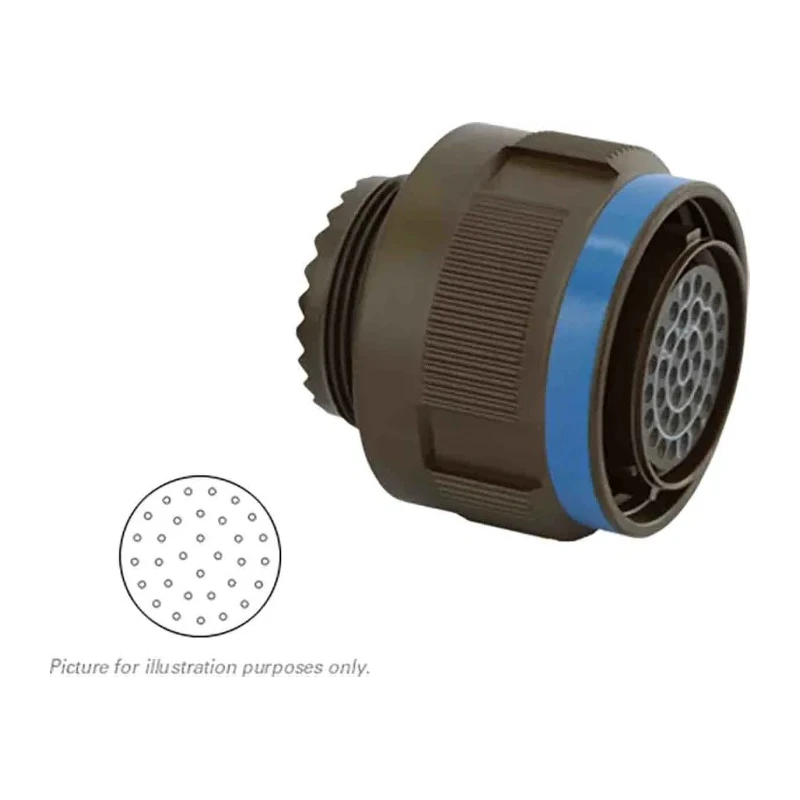

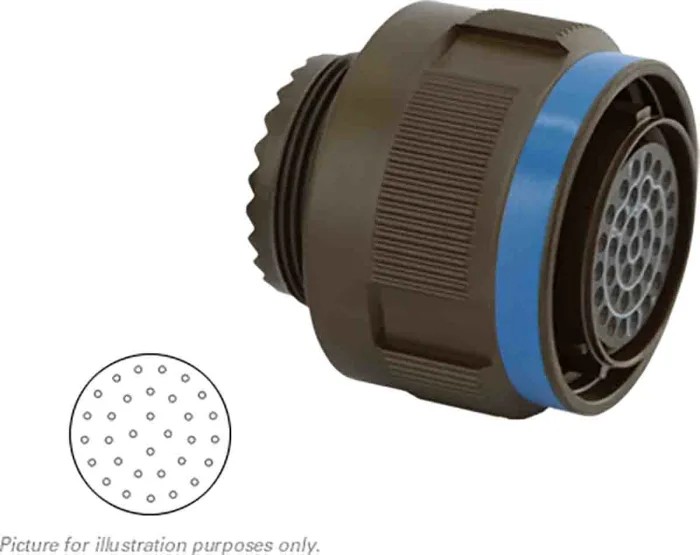

Souriau Sunbank by Eaton MIL Spec Circular Connector 32 Way Copper Alloy Straight Contact Female Male Connector 8D519W32SA

Free Delivery in India | Lowest Global Shipping Charges

Souriau Sunbank by Eaton MIL Spec Circular Connector 32 Way Copper Alloy Straight Contact Female Male Connector 8D519W32SA

Name: Souriau Sunbank by Eaton MIL Spec Circular Connector 32 Way Copper Alloy Straight Contact Female Male Connector 8D519W32SA
Brand: Souriau Sunbank by Eaton
SKU: 219513
Price: 132.02 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Souriau Sunbank by Eaton Condition New

Specifications

Country of Origin	India
Brand	Souriau Sunbank by Eaton
Orientation	Straight
Current	7.5A
Model	8D519W32SA
IP Rating	IP67
Housing Material	Aluminium
Contact Material	Copper Alloy
Series	8D
Termination Type	Crimp
Maximum Operating Temperature	175°C
Minimum Operating Temperature	-65°C
Contact Plating	Gold over Nickel
Number of Contacts	32
Contact Gender	Female
Connector Gender	Male
Shell Size	19
Military Standard	MIL-DTL-38999
Mating Type	Screw Coupling
Connector Size	Standard
Shell Plating	Olive Drab Cadmium

Key Features

Compliant with MIL-DTL-38999 military standard for extreme environmental resistance.
Houses 32 female contacts with male connector interface and screw coupling.
Copper alloy contacts plated with gold over nickel ensure excellent conductivity and corrosion resistance.
Connector shell is aluminium with olive drab cadmium plating for durability and EMI protection.
Operates reliably in a temperature range from -65°C to 175°C.
Rated for 7.5A current and provides IP67 ingress protection.
Features a straight orientation with crimp termination type for secure wiring.
Incorporates RFI shielding and a self-locking quick screw coupling mechanism.

Product Description

Souriau Sunbank by Eaton 8D519W32SA MIL Spec Circular Connector is a 32 way circular connector designed to meet stringent military and industrial standards. Constructed with an aluminium housing plated in olive drab cadmium, it offers robust protection against harsh environmental conditions, including vibration and temperature extremes ranging from -65°C to 175°C. The connector complies with MIL-DTL-38999 specification, assuring reliable performance in demanding sectors such as civil and military aeronautics, marine, industrial, and offshore operations.

This model features copper alloy contacts with gold over nickel plating, enhancing electrical conductivity and corrosion resistance. The connector's male and female contact gender configuration and straight orientation with crimp termination allow secure and reliable wiring connections. It has a current rating of 7.5A and an IP67 rating, providing excellent dust and water ingress protection.

The screw coupling mechanism includes self-locking for quick and secure mating, complemented by RFI shielding and EMI enhanced protection via the shielding ring and shell to shell bottoming design. The 100% scoop proof design prevents incorrect mating, offering polarising options through angular key positioning. This connector is suitable for industrial, laboratory, aerospace, marine, and other high-reliability applications requiring rugged circular connectors.

Compliant with MIL-DTL-38999 military standard for harsh environments. 32 female contacts with male connector interface. Copper alloy contacts with gold over nickel plating. Aluminium housing with olive drab cadmium plating.

Operating temperature range from -65°C to 175°C. Rated current of 7.5A with IP67 ingress protection. Straight orientation with crimp termination. Screw coupling with self-locking quick coupling mechanism. RFI shielding and EMI enhanced protection design.

Applications include aerospace, industrial, marine, and military uses.
