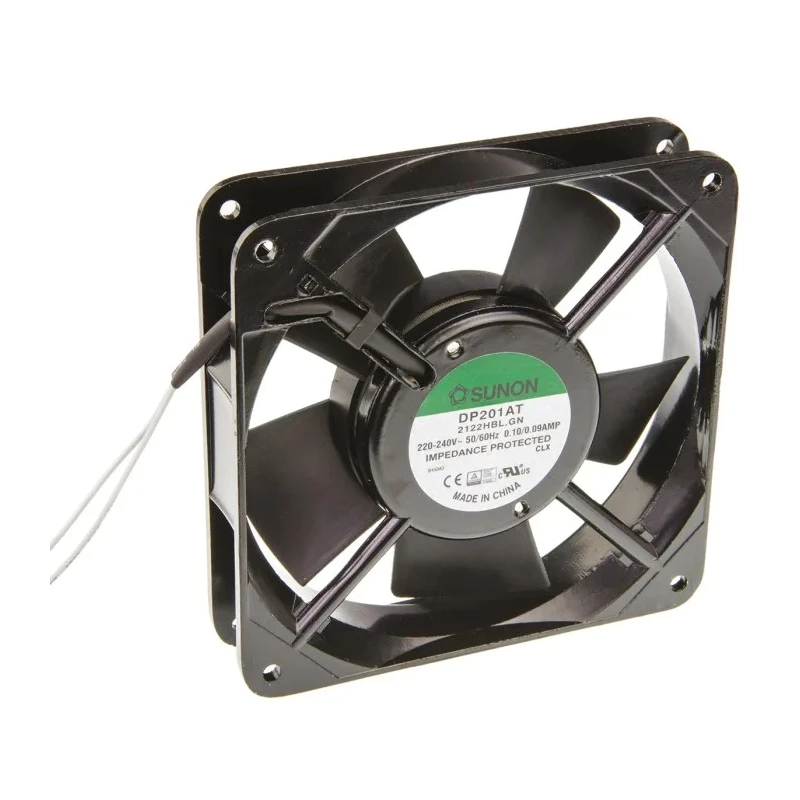

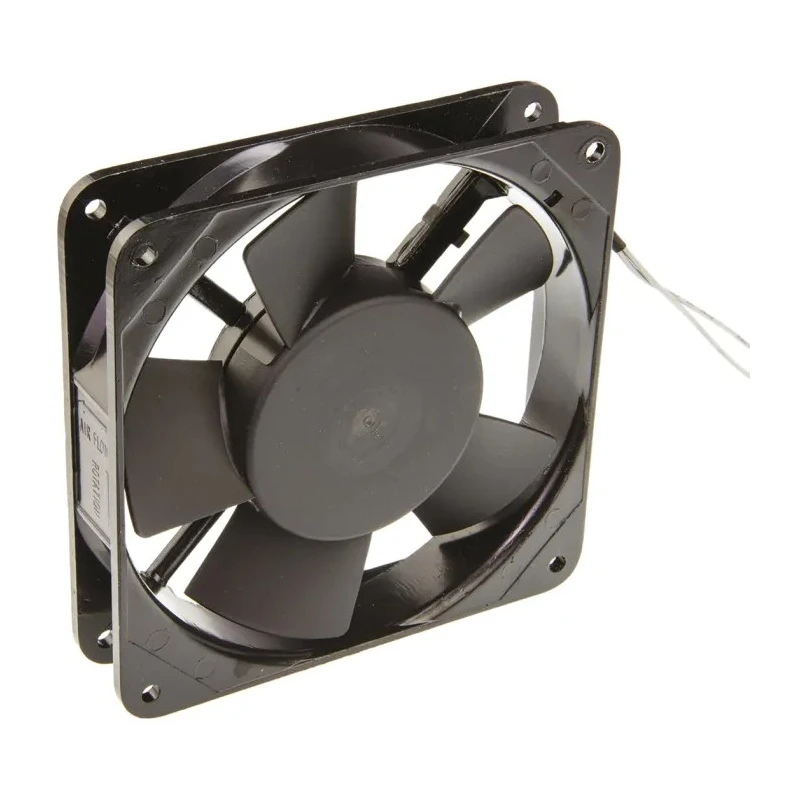

Sunon DP Series Axial Fan 230V AC 18W 90mA 136m³/h 120mm Frame Size Ball Bearing DP201AT/2122HBL.GN
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | 18W |
| Brand | Sunon |
| Height | 120mm |
| Fan Speed | 2500rpm |
| Air Flow | 136m³/h |
| Model | DP201AT/2122HBL.GN |
| Noise Level | 48dB |
| Width | 120mm |
| Series | DP |
| Maximum Current | 90mA |
| Terminal type | Wire |
| External Depth | 25mm |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | CE, RoHS, TUV, UL, cUR |
| Fan Frame Size | 120 mm |
| Fan Frame Type | Square |
| Direction of Curve | Forward |
| Ball bearing fan,122cu.m/h 220/240VacBrand | Sunon |
| 120MM SLIM FAN 240VBrand | NEUTRAL |
Key Features
- Features a reliable ball bearing for enhanced durability.
- Provides an air flow rate of 136 cubic meters per hour for effective ventilation.
- Operates at a fan speed of 2500 rpm with low noise level of 48 dB.
- Constructed with an aluminium alloy frame and thermoplastic impellers for strength and longevity.
- Suitable for industrial and commercial air conditioning, heating, and medical equipment applications.
- Impedance protected with high temperature resistance and a service life of approximately 50,000 hours.
- Designed for blow or extract mounting with counter-clockwise rotation.
- Complies with CE, RoHS, TUV, UL, and cUR standards.
Product Description
Sunon DP201AT/2122HBL.GN is a high-quality axial fan operating at 230V AC with 18W power consumption, engineered to deliver an air flow of 136 m³/h while maintaining quiet operation at 48 dB noise level. The fan features a robust square 120mm frame and 25mm external depth, equipped with a durable ball bearing for improved reliability and a long service life estimated around 50,000 hours.
The fan utilizes a shaded-pole motor construction optimized for higher operating voltages, suitable for demanding industrial thermal management tasks. Its aluminium alloy frame combined with thermoplastic impellers provides structural integrity and resistance to high temperatures, making it ideal for continuous use in applications such as air conditioning units, heaters, medical equipment, and automation control systems.
This forward-curved fan is impedance protected and supports blow or extract mounting with counter-clockwise rotation, enhancing installation versatility. The design complies with international safety and quality standards including CE, RoHS, TUV, UL, and cUR certifications, assuring dependable performance and environmental compliance.
Reliable ball bearing mechanism ensures extended operational life. Low power consumption reduces energy costs and environmental impact. High temperature resistance suitable for various industrial environments. Quiet operation at 48 dB noise level minimizes acoustic disturbance.
Compact 120mm square frame with 25mm depth fits space-constrained installations. Wide range of applications including HVAC, medical, and automation equipment. Counter-clockwise rotation for optimized air flow direction.
Perfect for industrial, laboratory, and HVAC systems requiring efficient air movement, the Sunon DP201AT/2122HBL.GN Axial Fan combines durability, efficiency, and compliance in a compact format. Browse the Industrial Coolers Blowers & Fans category at EnvMart to find compatible fan accessories and other ventilation solutions.
