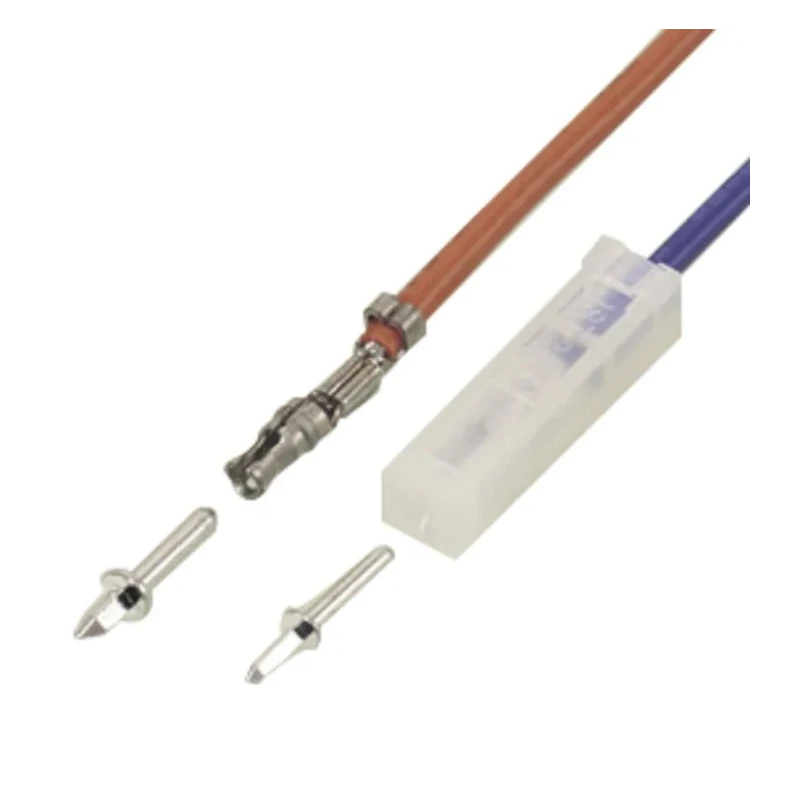

JST SMF Series Female Crimp Terminal, 26 AWG Min, 20 AWG Max, 5A Current, Brass Contact SMF-01T-1.3

Free Delivery in India | Lowest Global Shipping Charges

JST SMF Series Female Crimp Terminal, 26 AWG Min, 20 AWG Max, 5A Current, Brass Contact SMF-01T-1.3



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	5A
Model	SMF-01T-1.3
Gender	Female
Contact Material	Brass
Series	SMF
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	SMF Connector Housing
Standards/Approvals	Certified LR20812, Recognised E60389, RoHS
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	15mΩ

Key Features

Constructed with brass contact material ensuring durability.
Contact plating is tin for enhanced conductivity and corrosion resistance.
Operates safely within -25°C to 85°C temperature range.
Compatible with SMF Connector Housing for reliable connections.
Termination type is crimp, providing secure wire attachment.
Maximum contact resistance is 15 milliohms, ensuring efficient electrical performance.
Certified to standards LR20812, Recognised E60389, and RoHS compliant for safety and environmental compliance.

Product Description

JST SMF-01T-1.3 Female Crimp Terminal is a high-quality electrical connector component designed for use with SMF connector housing. It supports wire sizes from 26 AWG minimum to 20 AWG maximum and has a current rating of 5 amperes. The contact material is brass with tin plating to ensure reliable conductivity and corrosion resistance. The terminal is suitable for operating temperatures from -25°C to 85°C, making it adaptable to various industrial and electronic environments.

This crimp terminal features a funnel-shaped lead-in that eases insertion into connector housings, securing a firm and balanced connection with high retaining force. It complies with industry standards including LR20812, Recognised E60389, and RoHS, ensuring safety and environmental standards are met.

JST SMF Series crimp terminals are widely used in electronics manufacturing, industrial automation, and electrical assembly applications where precise and reliable wire terminations are critical. The crimp termination provides a secure mechanical and electrical connection that improves assembly efficiency and overall system reliability.

Constructed with brass contact material ensuring durability. Contact plating is tin for enhanced conductivity and corrosion resistance. Operates safely within -25°C to 85°C temperature range. Compatible with SMF Connector Housing for reliable connections.

Termination type is crimp, providing secure wire attachment. Maximum contact resistance is 15 milliohms, ensuring efficient electrical performance. Certified to standards LR20812, Recognised E60389, and RoHS compliant for safety and environmental compliance.

This terminal is ideal for electronic components assembly, power connectors, and PCB connectors in industrial, manufacturing, and commercial electronic applications. Its adherence to multiple safety standards makes it suitable for demanding environments requiring dependable electrical connections.
