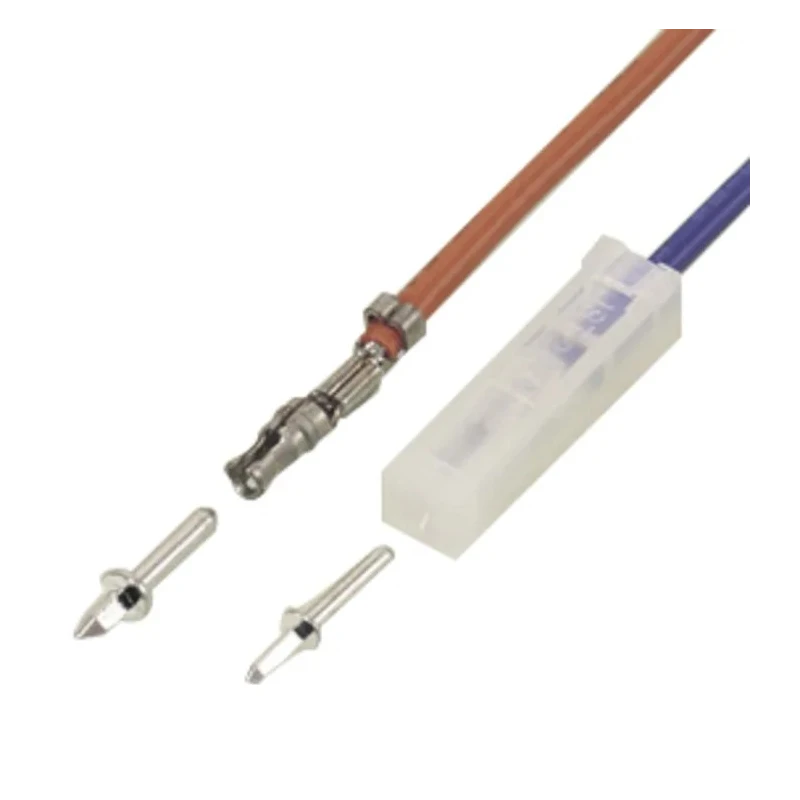

JST SMF Female Crimp Connector Housing Nylon Material 1 Way 1 Row Right Angle 1P-SMF

JST 1P-SMF Female Crimp Connector Housing is a high-quality connector housing made of nylon, featuring a right angle orientation suitable for 1 way and 1 row configurations. It is designed to mount on cables and is compatible with SMF connectors, making it ideal for various electronic component applications.

The housing measures 4.5mm in length and 4.6mm in width, providing a compact form factor perfect for dense electronic assemblies. It accommodates 1 contact and supports pin diameters of 1.0mm and 1.3mm, with a funnel shaped lead-in to facilitate easy pin insertion while maintaining a balance with high retention force.

This connector housing is widely used in electronics manufacturing, power and data connectors, cable assemblies, and various industrial applications requiring secure, compact, and reliable female crimp connectors. Its nylon construction provides durability and insulation properties essential for demanding environments.

Constructed from high-quality nylon material ensuring durability. Compatible with SMF connectors for cable mounting applications. Designed for use with 1.0mm and 1.3mm diameter pins. Provides a secure fit with a funnel shaped lead-in for easy insertion.

Compact dimensions suit space-constrained assemblies. Right angle orientation aids in cable management and routing.

This product is part of the SMF series by JST, known for consistent quality and performance in electronic connector housings. It is ideal for manufacturing, laboratory, HVAC, and commercial electronics assembly sectors. For more options and similar products, explore the Connector Housing category at EnvMart.
