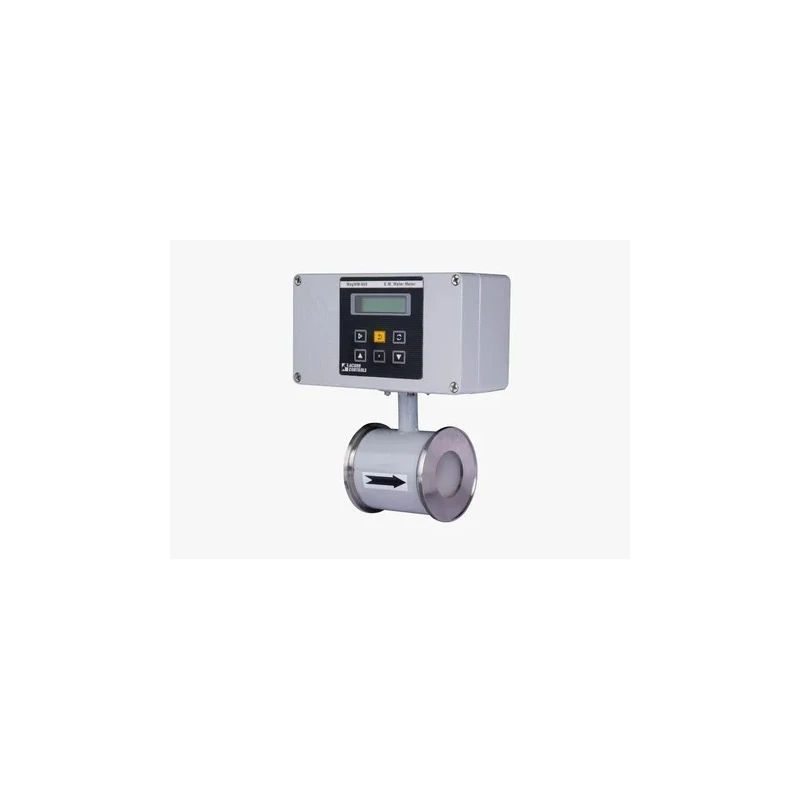

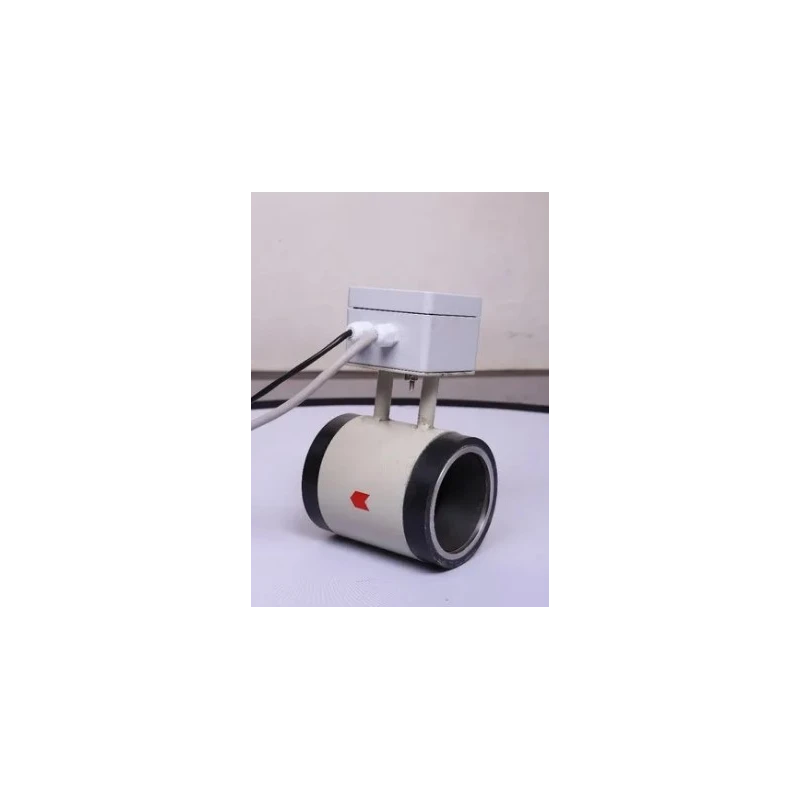

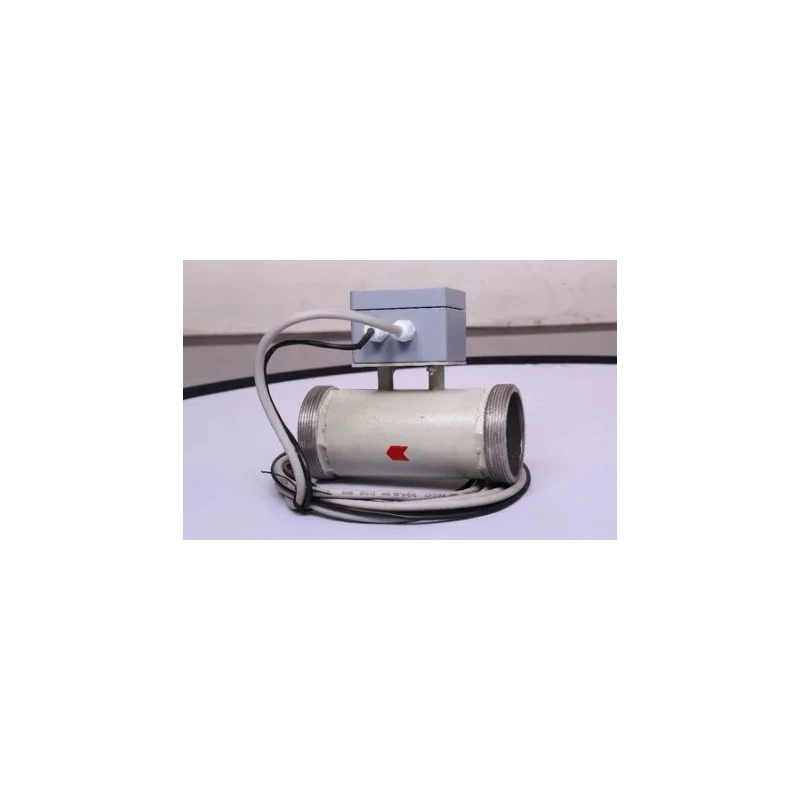

Acorn Controls Electromagnetic Water Meter Integral Sensor With Digital Display MagWM-600
Specifications
| Power Consumption | 12VA max |
|---|---|
| Display | Digital |
| Brand | Acorn Controls |
| Power Supply | 24Vdc or 230Vac ( optional) ( +/- 10% ) |
| Material | SS 304 |
| Applications | Industrial |
| Color | Grey |
| Working Temperature | Zero to fifty five Deg Cel. |
| Model | MagWM-600 |
| Protection Class | IP 65 |
| Communication | RS 485 MODBUS RTU or ASCII Protocol ( Isolated) |
| Analog Output | 4 to 20 mA into 600 ohm (max) load - ( Isolated) |
| Application Media | Water |
| Electrode Material | SS 316 / Hastalloy -C ( optional) |
Key Features
- High Reliability & Longlife,Excellentapplication &Service supported by flow metering experts
Product Description
Acorn Controls Electromagnetic Water Meter Integral Sensor With Digital Display, MagWM-600 is generated by a set of coils. As the conductive liquid passes through the electromagnetic field, an electric voltage is induced in the liquid which is directly proportional to its velocity. It is ideally used for waste water applications and other applications that experience low pressure drop and with appropriate liquid conductivity required.
- High durability
- Easy to operate
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model requires a power supply of 24Vdc or 230Vac (optional) with a tolerance of +/- 10%.
It features a digital display for easy reading of measurements.
The maximum power consumption is 12VA.
The working temperature range is from zero to fifty-five degrees Celsius.
The body is made from SS 304, and the electrodes can be made from SS 316 or Hastalloy-C (optional).
It has a protection class of IP 65, making it suitable for various environments.
It supports RS 485 MODBUS RTU or ASCII Protocol (isolated).
The analog output is 4 to 20 mA into a maximum load of 600 ohms (isolated).
This model is designed for industrial applications, particularly for measuring water flow.
The color of this model is grey.
It is suitable for measuring water and other conductive liquids.
It operates by inducing an electric voltage in the liquid as it passes through an electromagnetic field, which is proportional to the liquid's velocity.
