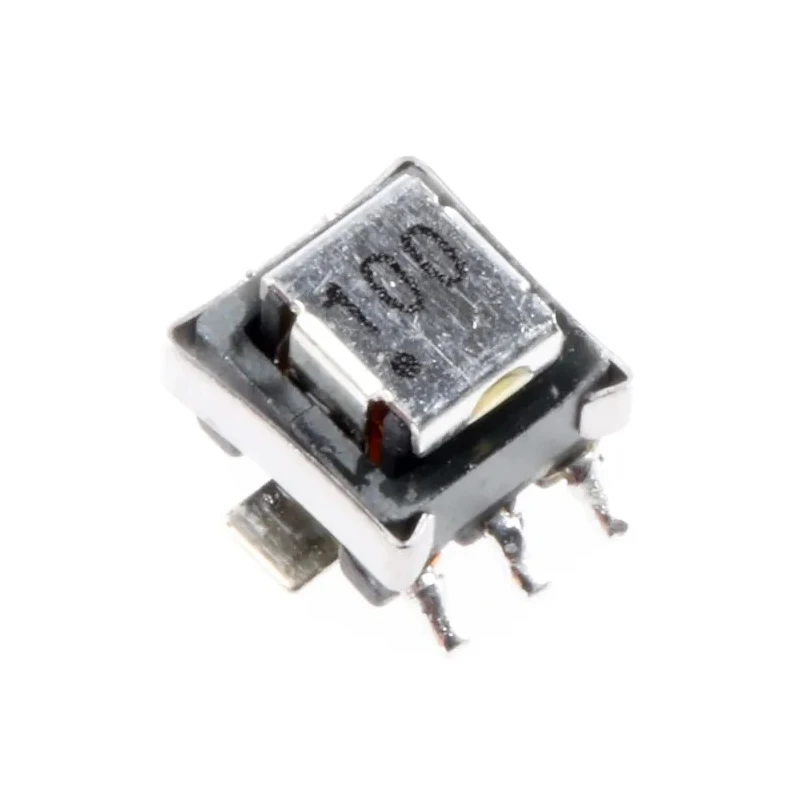

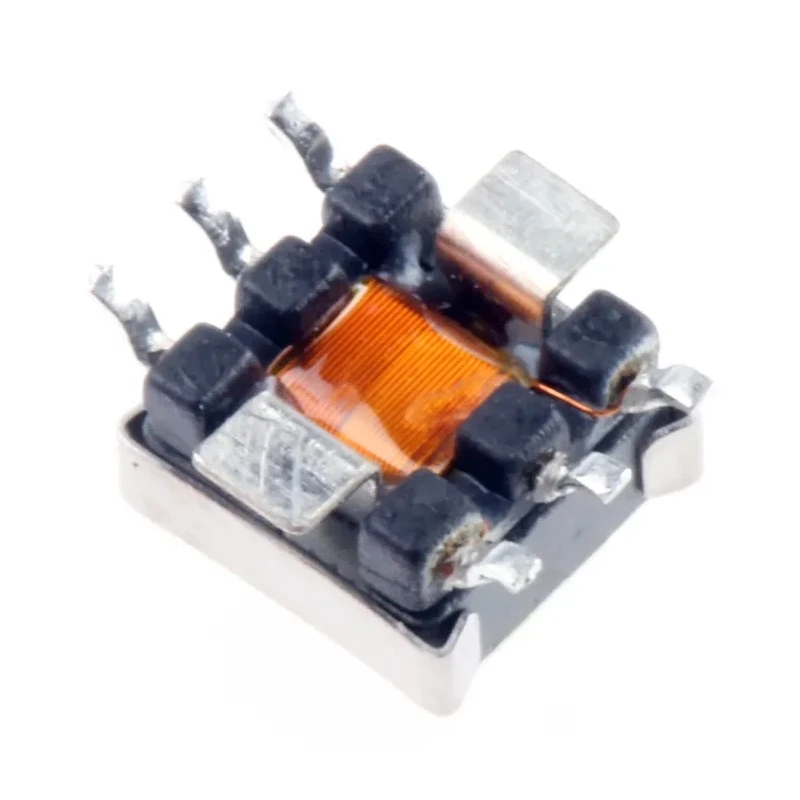

Murata Power Solutions 5300 Series Current Transformer 10A 1:100 Surface Mount 50-500kHz 53100C

Murata Power Solutions 53100C 5300 Series Current Transformer provides precise AC current monitoring with a 10 amp primary current and a 1:100 turns ratio, ideal for high frequency applications ranging from 50 kHz up to 500 kHz. This surface mount current transformer is built for industrial applications including switched-mode power supplies, motor control, and electronic lighting ballasts.

The compact transformer has dimensions of 7.2 mm in length, 8.3 mm in width, and 5.4 mm in depth, making it highly adaptable for PCB layouts. It features a wire terminal type to facilitate integration and maintain reliable connections. The primary DC resistance is 7 milliohms, and the secondary DC resistance is 5.6 milliohms, supporting efficient power measurement with minimal loss. The device inductance is 2 mH, optimized for accurate high-frequency sensing.

Designed to operate reliably within a wide temperature range of -40°C to 125°C, it is suitable for demanding industrial and electronic environments. The 5300 Series follows the J-STD-020C reflow standard for surface mount technology, ensuring robust manufacturing compatibility.

High frequency current sensing from 50 kHz to 500 kHz. Compact surface mount design for dense PCB integration. Wide operating temperature range from -40°C to 125°C. Low primary and secondary DC resistance reduces energy loss.

Reliable inductance of 2 mH suitable for power management circuits. Wire terminal connection for ease of use in PCB assemblies. Manufactured in China under strict quality controls.

This Current Transformer is an excellent choice for industrial automation, electrical control systems, motor drives, and power supply monitoring where high frequency and accuracy are critical. Browse other Murata Power Solutions products at EnvMart for your electrical component needs.
