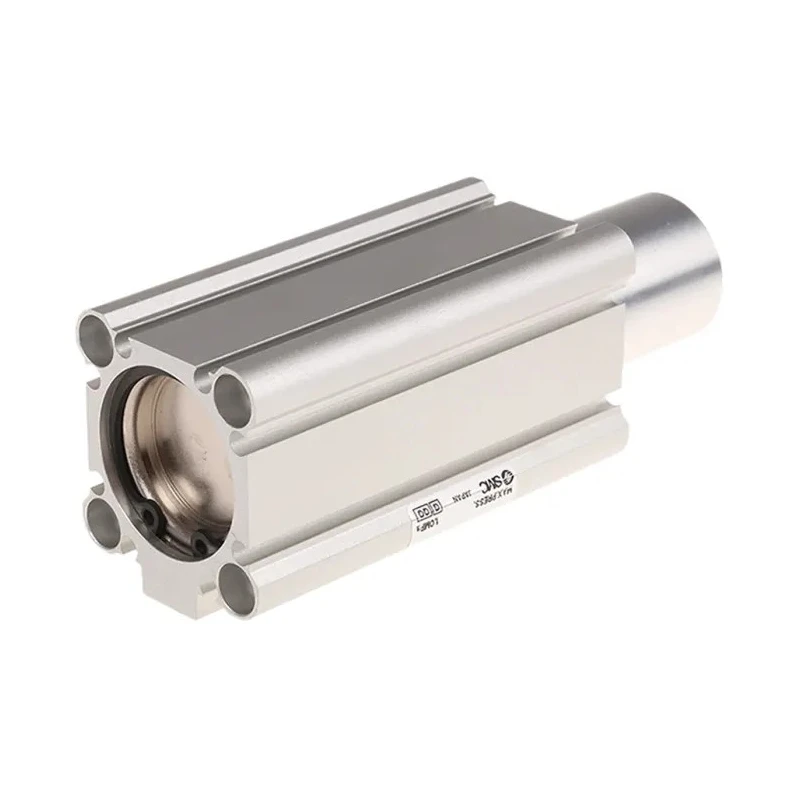

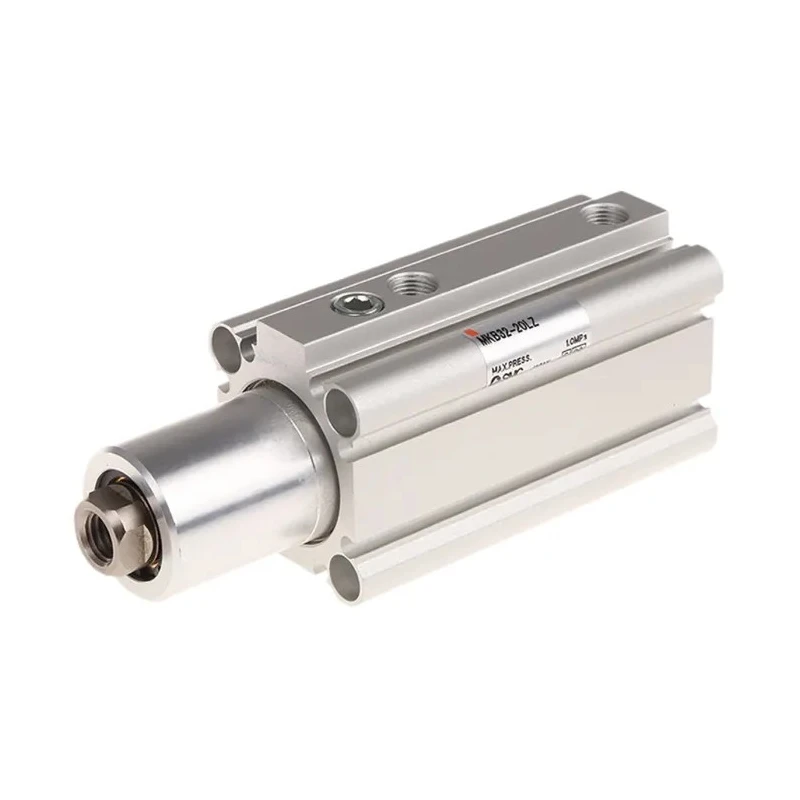

SMC Pneumatic Cylinder Bore Diameter 32mm Stroke Length 20mm Double Acting Aluminium Alloy Body MKB32-20LZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Temperature range | -10°C to +70°C |
| Model | MKB32-20LZ |
| Gross Weight | 525g |
| Mount Type | Through Hole |
| Pressure Range | 1 - 10bar, 15bar proof pressure |
| Series | MK |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 32mm |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Piston Rod Thread Size | 1/8 in Rc |
| Angle of Rotation | 90° |
Key Features
- The piston rod rotates 90 degrees during extension or retraction.
- Operates within a pressure range of 1 to 10 bar, with 15 bar proof pressure.
- Designed with rubber cushioning for smooth operation.
- Compact design enables strong clamping force.
- Suitable for clamping applications using optional arm accessories.
- Operating temperature range from -10°C to 60°C.
- Mount type is through hole installation.
- Includes piston rod thread size 1/8 in Rc.
Product Description
The SMC MKB32-20LZ Pneumatic Cylinder is a high-quality, double-acting rotary clamp actuator engineered for reliable industrial use. Featuring a 32mm bore diameter and 20mm stroke length, it operates at a maximum pressure of 1 Mpa, providing strong and precise clamping action. Constructed with an aluminium alloy body, it offers a robust, lightweight solution weighing just 525 grams.
This cylinder rotates the piston rod 90 degrees through its stroke, suitable for applications requiring rotary clamping force. It functions within a pressure range of 1 to 10 bar, with a proof pressure of 15 bar, ensuring durability under demanding operational conditions. The rubber cushioning provides smooth stroke buffering to minimize impact and wear.
Designed for versatile mounting, the through hole style facilitates easy installation. The 1/8 inch Rc piston rod thread allows compatibility with various tooling accessories. Operating temperature ranges from -10°C to 60°C, supporting a broad thermal application scope.
This product is ideal for industrial, mechanical, and automation applications where precise pneumatic clamping is required. The compact design allows it to integrate seamlessly into machinery for manufacturing, fluid power systems, and pneumatic tooling.
The piston rod rotates 90 degrees during extension or retraction. Operates within a pressure range of 1 to 10 bar, with 15 bar proof pressure. Rubber cushioning type provides stroke buffering. Constructed of durable aluminium alloy body material.
Double-acting action type for push and pull force capabilities. Operating temperature from -10°C to 60°C supports varied environments. Mount type is through hole for secure installation. Piston rod thread size 1/8 in Rc for accessory compatibility.
The unit weighs 525 grams, offering lightweight pneumatic solutions. Made in China, without specific certifications. Explore more pneumatic clamping cylinders and actuators at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 32mm.
The stroke length of this pneumatic cylinder is 20mm.
It has a maximum operating pressure of 1 Mpa, which is equivalent to 10 bar.
This model operates within a temperature range of -10°C to 60°C.
The piston rod rotates 90 degrees during both extension and retraction.
It features rubber cushioning to provide smooth stroke buffering.
The weight of this pneumatic cylinder is 525 grams.
It is designed for through hole installation, allowing for versatile mounting options.
The piston rod thread size is 1/8 inch Rc, enabling compatibility with various tooling accessories.
This pneumatic cylinder is suitable for clamping applications, especially when used with optional arm accessories.
The body of this pneumatic cylinder is constructed from aluminium alloy.
The proof pressure for this pneumatic cylinder is 15 bar.
