STMicroelectronics Stepper Motor Driver IC 40 V 1.5 A 36-Pin PowerSO E-L6258EXTR

Free Delivery in India | Lowest Global Shipping Charges

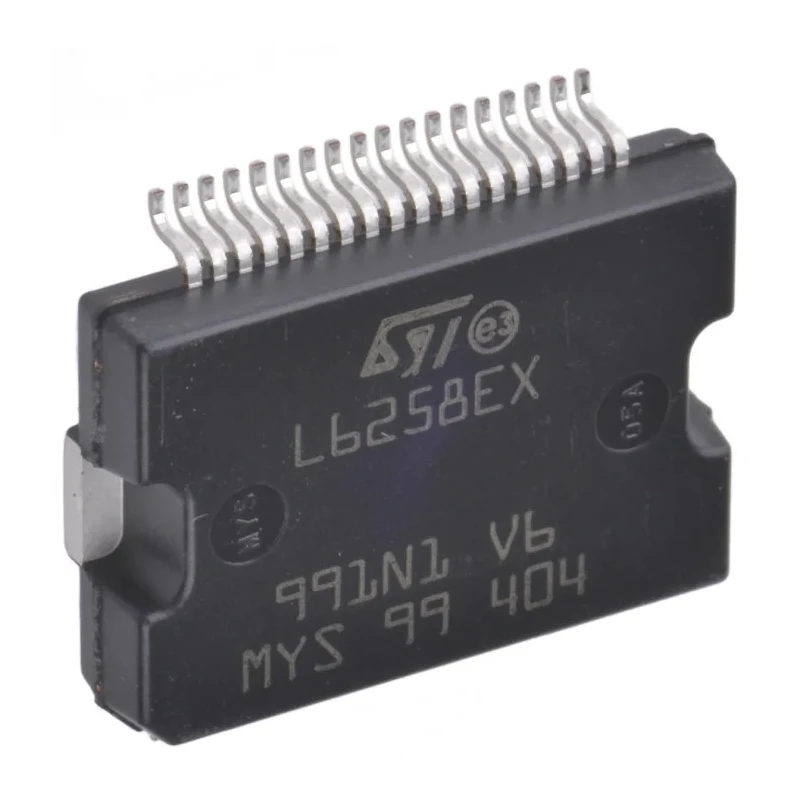

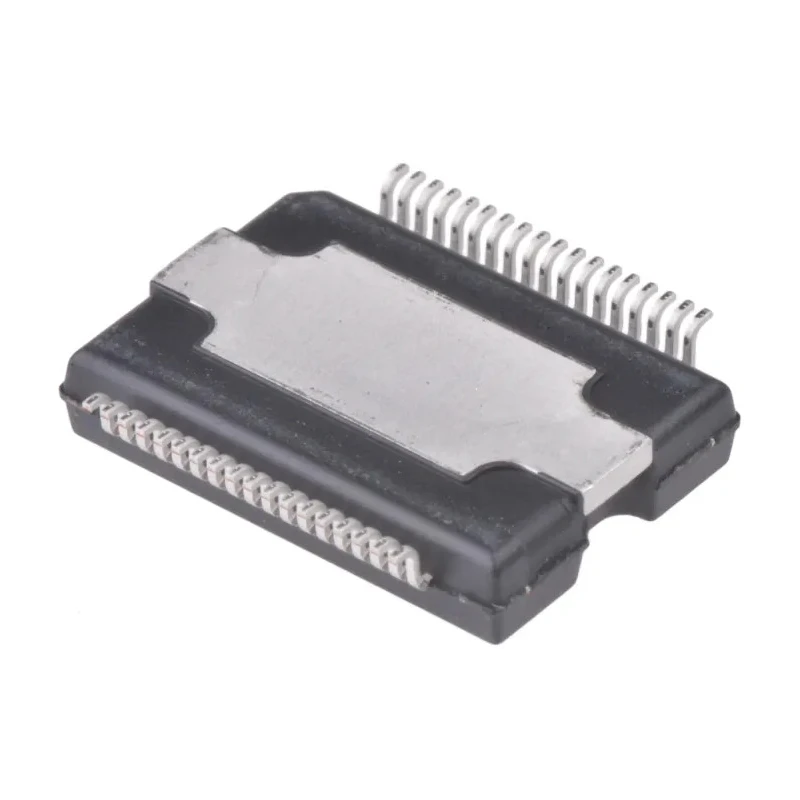

STMicroelectronics Stepper Motor Driver IC 40 V 1.5 A 36-Pin PowerSO E-L6258EXTR

Name: STMicroelectronics Stepper Motor Driver IC 40 V 1.5 A 36-Pin PowerSO E-L6258EXTR
Brand: STMicroelectronics
SKU: 219355
Price: 11.36 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	3.6mm
Length	16mm
Model	E-L6258EXTR
Width	11.1mm
Motor Type	Stepper
Mount Type	Surface
Series	L6258EX
Configuration	Bipolar
Output Current	1.5A
Maximum Operating Temperature	150°C
Package Type	PowerSO
Minimum Operating Temperature	-55°C
Pin Count	36
Maximum Collector Emitter Voltage Vceo	40V
Maximum Supply Voltage	40V
Minimum Supply Voltage	12V
Supply Current	10μA
Maximum IGBT Collector Current	1.5A
Typical Switching Frequency	18.5kHz
Inverter Power Rating	5.3W

Key Features

Supports bipolar stepper motor configurations for versatile motor control applications.
Maximum collector emitter voltage rating of 40 V ensures reliable operation under high voltage conditions.
Maximum IGBT collector current of 1.5 A supports moderate current levels for precise motor driving.
Typical switching frequency is 18.5 kHz, providing efficient motor control and noise reduction.
Operates within a wide temperature range from -55°C to 150°C for robust performance in harsh environments.
Compact PowerSO package with 36 pins allows easy surface mounting and integration into PCBs.
Supply voltage ranges from 12 V minimum up to 40 V maximum, allowing flexible power supply options.
Low supply current consumption of 10 μA decreases overall power usage during operation.

Product Description

STMicroelectronics E-L6258EXTR Stepper Motor Driver IC is a high-performance bipolar motor controller designed to efficiently drive stepper motors with precise current and voltage regulation. It supports a maximum IGBT collector current of 1.5 A and can withstand a maximum collector emitter voltage of 40 V, making it suitable for applications that require moderate power levels.

The device is packaged in a compact 36-pin PowerSO surface mount package, facilitating easy integration into modern printed circuit boards. It operates with a supply voltage range between 12 V to 40 V and features a typical switching frequency of 18.5 kHz, optimizing motor control responsiveness and energy efficiency.

With an operating temperature range from -55°C to 150°C, the E-L6258EXTR ensures reliable performance even in demanding industrial environments. The supply current of only 10 μA contributes to reducing standby power consumption, making it suitable for energy-efficient designs.

This motor driver IC is ideal for use in various industrial applications such as automation, robotics, motor controllers, and power management circuits. It is part of STMicroelectronics' L6258EX series, known for robust performance and reliability in stepper motor control solutions.

Supports bipolar stepper motor configurations for flexible motor driving. Maximum collector emitter voltage rating of 40 V. Maximum IGBT collector current of 1.5 A for effective motor control. Typical switching frequency of 18.5 kHz for reduced noise and better performance.

Wide operating temperature range from -55°C to 150°C for industrial use. Compact 36-pin PowerSO package suitable for surface mounting. Operating supply voltage from 12 V to 40 V. Very low supply current of 10 μA to minimize power consumption.

Part of the L6258EX series by STMicroelectronics. Designed for motor control applications in various industrial sectors. Explore more Motor Driver ICs and components like the E-L6258EXTR at EnvMart for reliable industrial electronics solutions.
