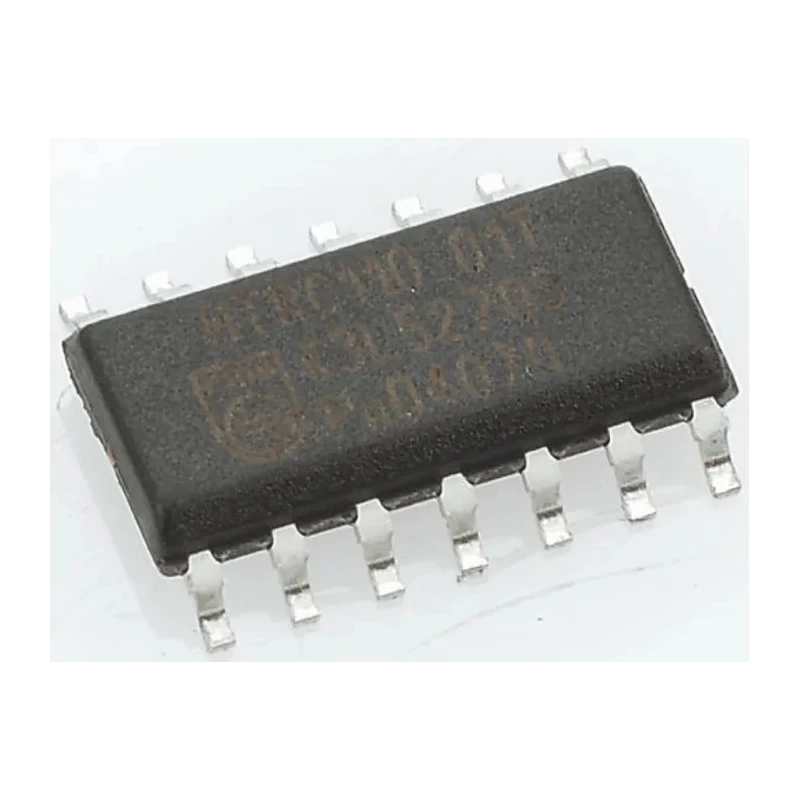

STMicroelectronics Operational Amplifier 15 MHz Gain Bandwidth, 15V SOIC 14-Pin Quad Channels MC33079DT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 8.75mm |
| Model | MC33079DT |
| Width | 4mm |
| Mount Type | Surface |
| Series | MC33079 |
| Output Current | 29mA |
| Maximum Operating Temperature | 105°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 15MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 3.5 mV |
| Slew Rate | 7V/μs |
| Input Offset Current | 175 nA |
| Low distortion | 0.002% |
Key Features
- Supports a wide supply voltage range from 6V to 15V for versatile applications.
- Features low input bias current of 800 nA ensuring high precision operation.
- Provides high slew rate of 7 V/μs for fast signal response.
- Operates reliably within -40°C to 105°C temperature range, suitable for industrial environments.
- Designed with low distortion of 0.002% for audio and signal processing tasks.
- Complies with RoHS standards and meets automotive standard AEC-Q100 for quality assurance.
- Compact dimensions of 8.75mm length, 4mm width, and 1.65mm height in SOIC form factor.
- Output current capability is 29 mA to drive loads effectively.
Product Description
STMicroelectronics MC33079DT operational amplifier is a quad channel low-noise device designed for high performance and reliability in industrial and audio applications. Featuring a gain bandwidth product of 15 MHz and a high slew rate of 7 V/μs, it delivers excellent signal fidelity and fast response times.
This amplifier operates with a supply voltage range of 6V to 15V, enabling compatibility with varied power sources and industrial environments. The input bias current of 800 nA and input offset voltage of 3.5 mV ensure precise analog signal processing with minimal error.
The device supports a broad operating temperature range from -40°C to 105°C, suitable for automotive and harsh environmental conditions, supplemented by compliance with AEC-Q100 automotive standards and RoHS directives for safety and environmental compliance.
Compactly packaged in a 14-pin SOIC form factor measuring 8.75mm by 4mm by 1.65mm, the MC33079DT facilitates ease of PCB layout and integration. It offers a low distortion rate of 0.002% making it suitable for demanding audio applications requiring clean signal amplification.
Wide supply voltage range (6V to 15V) for versatile applications. Low input bias current supports precision analog functions. High slew rate ensures enhanced signal responsiveness. Broad temperature tolerance expands application scenarios.
Low total harmonic distortion for superior audio quality. Compliance with RoHS and automotive quality standards. Compact SOIC package facilitates easy circuit design integration. Capable of driving moderate load currents up to 29 mA.
Features precise offset voltage and current characteristics. Ideal for industrial control, audio, and instrumentation uses.
This operational amplifier is a preferred choice for engineers designing audio signal processors, instrumentation amplifiers, automotive electronics, and other high fidelity analog systems. Environmentally compliant and tested, it blends performance with reliability.
Explore more semiconductor components and Operational Amplifiers in our electronics and electricals section at EnvMart for your project requirements.
