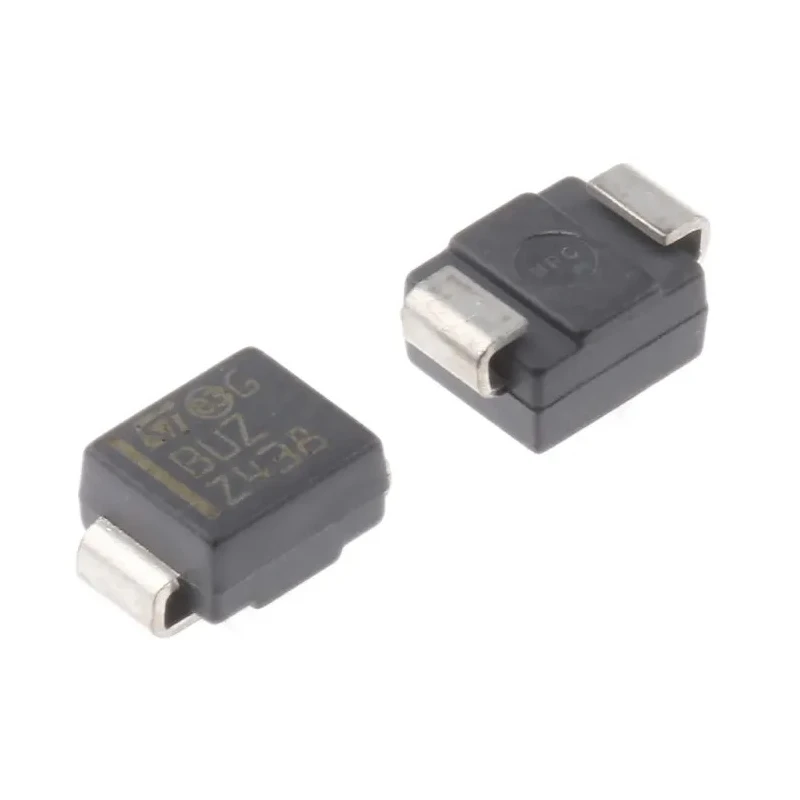

STMicroelectronics 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214 SMBJ5.0A-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SMBJ5.0A-TR |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 298A |
| Maximum Reverse Leakage Current | 20μA |
Key Features
- Single diode element ensuring stable voltage suppression.
- Unidirectional configuration for controlling voltage spikes.
- Peak pulse power dissipation of 600 watts for robust protection.
- Compact surface mount DO-214 package with 2 pins for easy PCB integration.
- Minimum breakdown voltage of 6.4 volts and clamping voltage of 13.4 volts.
- Operating temperature range from -55°C to 150°C for reliable performance.
- Maximum peak pulse current of 298 amperes for high surge transient absorption.
- Low maximum reverse leakage current of 20 microamps to reduce circuit losses.
Product Description
STMicroelectronics SMBJ5.0A-TR is a 1-element uni-directional transient voltage suppression (TVS) diode providing efficient transient voltage protection with a peak pulse power dissipation of 600 W. Packaged in a compact 2-pin DO-214 surface mount form factor, it is designed to safeguard sensitive electronic components by clamping voltage spikes and transient surges effectively.
The diode features a minimum breakdown voltage (Vbr) of 6.4 V and a clamping voltage (VC) of 13.4 V, operating reliably within a temperature range from -55°C up to 150°C. It withstands a maximum peak pulse current (Ippm) of 298 A, making it suitable for robust protection against demanding transient conditions.
This TVS diode has a low maximum reverse leakage current of 20 µA, which helps minimize unintended circuit currents, thereby enhancing device efficiency. Its single-element, uni-directional configuration is ideal for protecting power and signal lines from damaging voltage spikes.
Typical applications include transient voltage suppression in industrial, telecommunications, automotive, and consumer electronics circuits, where protection against voltage transients is critical.
The SMBJ5.0A-TR complies with SMBJ series standards for TVS diodes and is designed for surface mounting with a small footprint, enabling efficient production and integration into printed circuit boards.
Single diode element ensuring stable voltage suppression. Unidirectional configuration for controlling voltage spikes. Peak pulse power dissipation of 600 watts for robust protection. Compact surface mount DO-214 package with 2 pins for easy PCB integration.
Minimum breakdown voltage of 6.4 volts and clamping voltage of 13.4 volts. Operating temperature range from -55°C to 150°C for reliable performance. Maximum peak pulse current of 298 amperes for high surge transient absorption.
Low maximum reverse leakage current of 20 microamps to reduce circuit losses. Compliant with SMBJ series specifications for transient voltage suppressors. Ideal for protecting sensitive electronics in power and signal lines.
